ID # 13352109

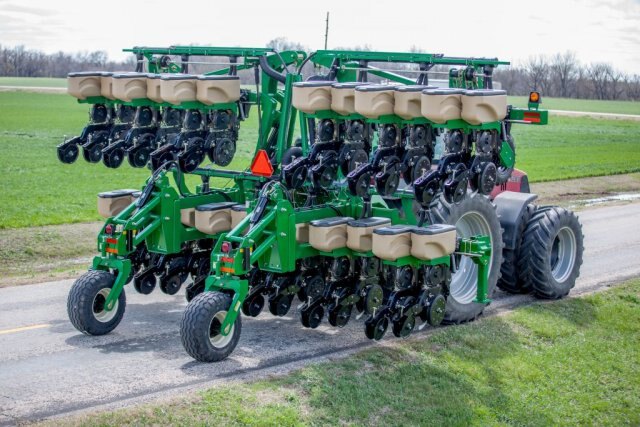

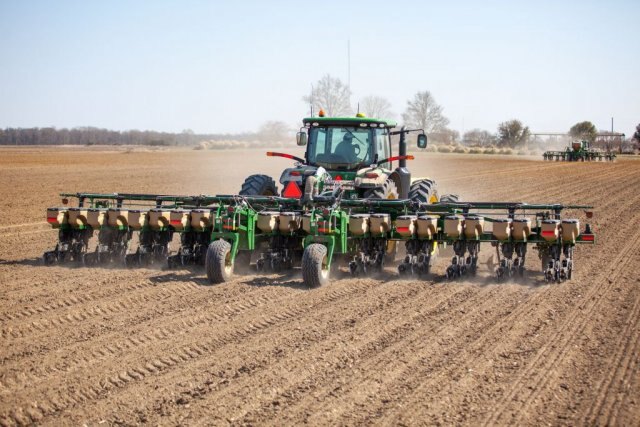

Great Plains 3P4025AH Planter

  • Great Plains 3P4025AH Planter
  • Great Plains 3P4025AH Planter
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
40' Stack-Fold Box Planter
Great Plains 3P4025AH Yield-Pro® Planter

The introduction of the 3P4025AH brings a new level of accuracy and simplicity to the mounted stack-fold planter line. Individual hoppers on each row, positive 3-section ground drive, and the proven accuracy of the Great Plains 25 Series Opener coupled with the Air-Pro® Metering System make this planter a simple, highly-productive machine.

With the option of single- or Twin-Row technology, the 3P4025AH stands in a class of its own, bringing all of the ruggedness and accuracy of our 3PYPA Central-Fill Planter to the operator who is cost conscious, yet wants to be sure the planter has the ability to precisely space the seed, place the seed at the desired depth, firm it in the seed trench, and close the seed trench to support maximum yields.
 Product Features
TUNED AIR MANIFOLD
TUNED AIR MANIFOLD

Baffles and splitters in the air system equalize the volume and pressure of air to each row unit. Air pressure sensors monitor and adjust air pressure to desired settings.
POSITIVE GROUND DRIVE
Yp3ps 24tr Features 0143

Large diameter spring-loaded gauge wheels plus a third center section ground drive provides a simple, yet positive, 3-section drive.
LIFT ASSIST
Yp3ps 24tr Transport 9897

Reduces the lift requirements on the tractor's 3-point hitch, allowing better weight distribution and stability. Standard on Twin-Row models; optional on single-row models.
25 Series Opener
25 Series Opener

The 25 series Row Unit was designed to plant more accurately, last longer, and be easier to maintain than the competition. It is a parallel linkage design so the row unit is always in the optimal planting position.
Product Specifications

MODEL INFO

3P4025AH

-1630

-32TR30

-1236

-1238

-1240

-24TR36

-24TR38

-24TR40

WORKING WIDTH

40'

40'

36'

38'

40'

36'

38'

40'

TRANSPORT WIDTH

24' 3"

25' 1"

24' 3"

24' 3"

24' 3"

24' 3"

24' 3"

24' 3"

TRANSPORT HEIGHT

12' 8"

H.P. REQUIREMENTS

230 - 260

290 - 330

220 - 250

220 - 250

220 - 250

260 - 300

260 - 300

260 - 300

EST. OPERATING WEIGHT

13,700

18,400

12,500

12,500

12,500

16,100

16,100

16,100

NUMBER OF OPENERS

16

32

12

12

12

24

24

24

ROW SPACING

30"

Twin-Row 30"

36"

38"

40"

Twin-Row 36"

Twin-Row 38"

Twin-Row 40"

SEED CAPACITY

1.6 Bu. per Row (Twin Row); 3 Bu. on single-row configuration

LIFT ASSIST TIRES

380/55-16.5

GAUGE WHEEL TIRES

7.60 x 15 Lug





Specifications
Model
3P4025AH Planter
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
