Great Plains

ID # 13352104

Great Plains UT5036 Ultra-Till®

Call for Price
Overview
Ultimate Seedbed
Ultra-Till

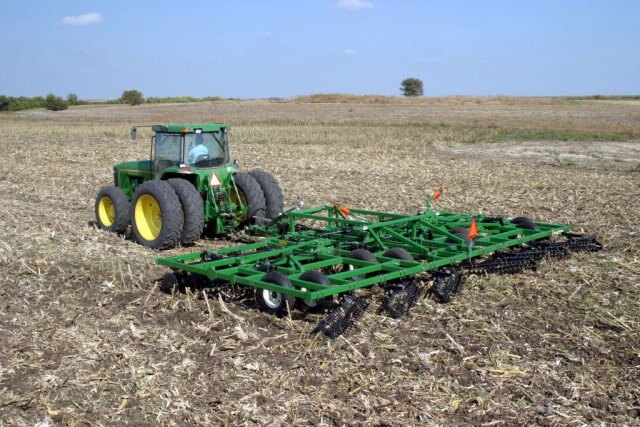

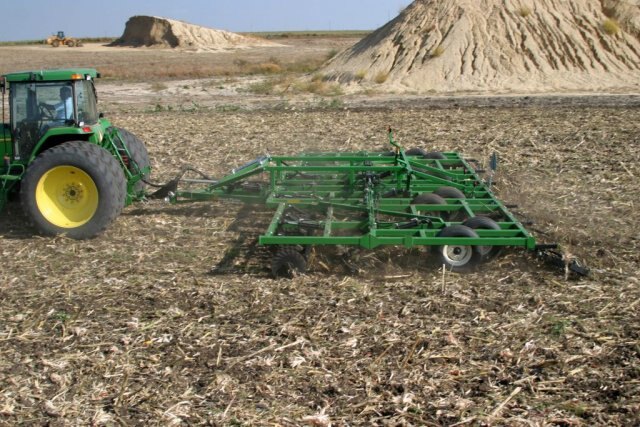

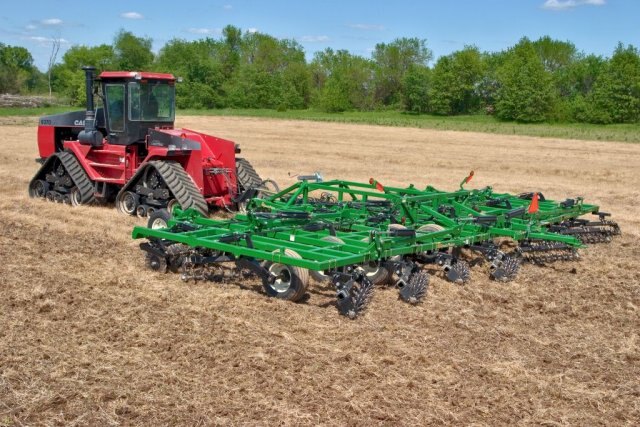

Ultra-Till® by Great Plains is yet another innovative option in the “systems” approach to vertical tillage. It is intended for secondary field operations and one-pass field finishing prior to planting. The Ultra-Till can be compared to a field finisher or cultivator, but with one major difference. Because it’s not equipped with shank-mounted sweeps, it will not create yield-robbing horizontal soil density layers. It is these compacted layers that roots have trouble penetrating.

The Ultra-Till can be equipped with low-concavity disc blades or our exclusive Turbo Coulters on the front to effectively cut residue into manageable pieces and loosen the seedbed soil. Blade depth is controlled hydraulically. Following the front coulters or disc blades are two rows of opposing rolling harrow gangs, angled at 30°. The rear gangs move the residue back into place, leaving a smooth, firm surface for a perfect seedbed.
 Product Features
ROLLING HARROW MODULES
UltraTill3030Features 16

Prepare the perfect seedbed by leveling the ground and crushing the clods.
HYDRAULIC WEIGHT TRANSFER
UltraTill3030Features 7

Transfer valve adjusts weight from center to wings, providing even, constant down pressure to the full width.
CONSTANT LEVEL HITCH
UltraTill3030Features 3

The exclusive hitch design provides continuous leveling of the unit as it is raised and lowered.





Specifications
Model
UT5036 Ultra-Till®
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
COULTER SPACING
8''
TIRES
11Lx15 F-ply (4)
WEIGHT (approx Max Weight W/ Attachments)
14,700
PTO H P REQ (min)
180+
TILLAGE WIDTH
36'
TRANSPORT WIDTH
16' 7''
TRANSPORT HEIGHT
12' 8''
CENTER SECTION
10'
1ST WING SECTION
8' 6''
2ND WING SECTION
4'
