Great Plains

ID # 13350590

Great Plains 1300 Drills

Call for Price
Overview
13' End Wheel Min-Till Drills

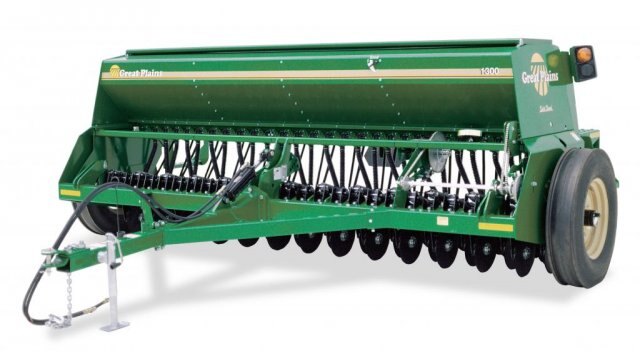

1300EW (F) 13' End Wheel Min-Till Drill

Providing big-drill performance in a smaller machine, the Great Plains 1300 End Wheel Drill is clearly the best built end wheel drill on the market. Heavy-duty openers feature hydraulically adjusted down pressure for consistent seed placement along the full width of the unit.

Its rugged construction, combined with a superior opener system, make the unit ideal for minimum-till conditions. Plus, the weatherproof seed box features a 3.2 bushel-per-foot capacity – one of the largest in the industry – minimizing the number of refills required to finish the job. The openers are in line with the end wheels, reducing sideloading on curves or terraces.
 Product Features
LOCKOUT HUBS
15774%2520ew%2520whl%2520ads

Quickly disengage all chains and sprockets for reduced wear during transport.
DOWN-PRESSURE ADJUSTMENT
Hydrualicopeners

By locating the pin in one of five locations, you can adjust the down-pressure applied on all openers.
4-SPEED SPROCKETBOX
Drive2

Provides excellent metering of a large variety of seed shapes and sizes.





Specifications
Model
1300 Drills
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
PRIMARY DESIGN
Min-Till
TIRE SIZE
7.5 x 20, 4-ply Rib Implement
H P REQUIREMENTS (min)
65+
WEIGHT (approx Range)
3,500-4,600 lbs (1,588-2,087 kg)
WORKING WIDTH
13' (3.96m)
TRANSPORT WIDTH
15' 7'' (4.74m)
TRANSPORT LENGTH
12' 6'' (3.81m)
TRANSPORT CLEARANCE
9'' (22.9cm)
TRANSPORT HEIGHT
5' 6'' (1.68m) w/o markers
OPENER SERIES
00 Series
MAIN BOX CAPACITY
43.2 bu (1522L)
SMALL SEEDS BOX
3.2 bu (112L)
