Great Plains

ID # 13350544

Great Plains FH6424HD Flex Harrow

Videos
Call for Price
Overview
Heavy-Duty Flex Harrow
Flex Harrow

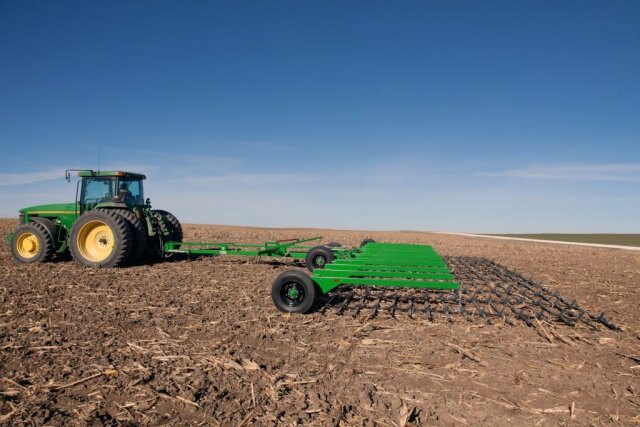

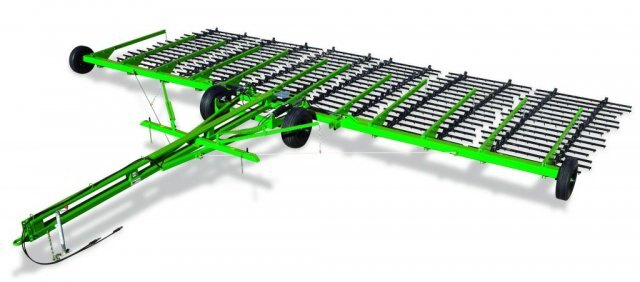

The Great Plains Heavy-Duty Flex Harrow is the toughest finishing tool on the market!

We use a triangle design with a full-length tongue, height-adjustable hitch, and doubled-up bridge frame for rigidity. The center frame is all 1/4" wall steel, making it perfect for nearly any terrain. The wings are constructed of 6" square tubing with reinforced corners. For longer life and wear, our 1-1/2" pivot pins are featured on the main pivot and wing corners. Extra-large cylinders with single valve control provide lifting and folding power – even in heavy residue. Cable lift is automatic – no need to get off the tractor to adjust. The main hubs are 8-bolt, 4500# with 12.5Lx15 transport tires. Wing tires are nopuncture aircraft tires for longer stability and reliability. Available as a 16 bar, 12 bar, or 8 bar.

When looking for the ideal “clod busting” finishing tool, the Great Plains HD Flex Harrow is the perfect finisher. Its pulling strength and simplicity are unmatched!
 Product Features
TRANSPORT TIRES
Transportwheels

Extra heavy 8-bolt transport hubs and wheels. Six-bolt wing hubs and wheel with bolt in spindles for more tire stability and reliability.
TONGUE
Tongue Online

Adjustable hitch heights. Tongue or clevis hitch help maintain level profile and optimal hitch height.
FORGE HARDENED
HD%2520Harrow%2520Studio 3161

Six-inch spike teeth on 9" spacing for longer lasting wear.
FOLD HINGE
Fold%2520Hinge

Super heavy, greaseable wing pivot joints and frame pivots for longer lasting wear at the 1-1/2" pivot pins.
Exclusive Maintenance-Free Bearings
Great Plains Exclusive Maintenance-Free Bearings

Great Plains uses the exclusive PEER® TILLXTREME® Maintenance-Free Pillow-Block Bearings in its gangs, as well as smaller TILLXTREME Maintenance-Free Bearings in its rolling attachments.





Specifications
Model
FH6424HD Flex Harrow
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
TIRES
11Lx15 8-ply
WEIGHT (approx Lbs)
4,050+
PTO H P REQ
3-5 hp per foot
TILLAGE WIDTH
24'
TRANSPORT WIDTH
12' 8''
TRANSPORT HEIGHT
10' 10''
CENTER SECTION
12'
1ST WING SECTION
6'
2ND WING SECTION
4
