Great Plains

ID # 13350006

Great Plains 6324UC 12'' Shank Spacing

Videos
Call for Price
Overview
Ultra-Durable

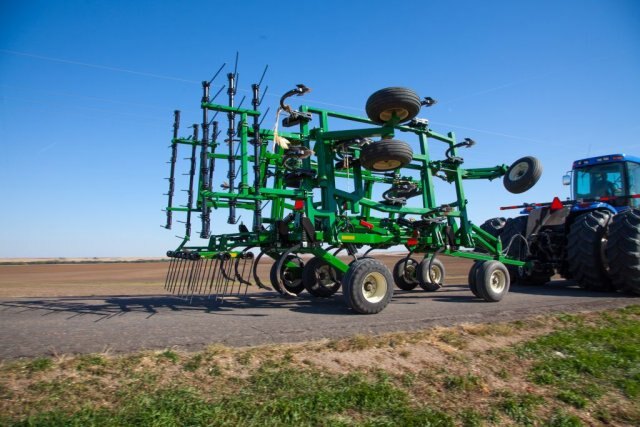

Great Plains Ultra-Chisel™

The Great Plains Ultra-Chisel™ brings a new definition to the "chisel plow". Its unique floating hitch design provides maximum ground-following capabilities to ensure constant working depth in the most adverse conditions. Combine this with 900-pound trip force shanks and the producer has unmatched soil-fracturing potential to a working depth of 8". The Ultra-Chisel, available in widths from 21' to 33', will bring even the largest fields down-to-size in a short amount of time.

In today’s environment, soil and residue management are vital to maximizing yields. The Ultra-Chisel provides producers with a unique vertical tillage tool to fracture the soil above 8" to remove density layers while leaving the residue mixed at the surface to reduce wind erosion and assist with water infiltration. Ultra-Chisel has all of the features and benefits to truly redefine "chisel plow".
 Product Features
WALKING TANDEMS
Ultra-Chisel™ Walking Tandems

Cutting-edge materials and state-of-the-art seals allow this pivot to be maintenance free.
ROCKING BOLSTER
Great Plains Ultra-Chisel™ Rocking Bolster

Patent-pending rocking bolster-type center frame keeps all center frame wheels on the ground, all the time, regardless of terrain.
HEAVY-DUTY SPRING TINE HARROW
Ultra-Chisel™ HEAVY-DUTY SPRING TINE HARROW

Three-position adjustable heavy-duty spring tines allow the operator choices in tine angle. Longer tines increase trash flow.
FLOATING HITCH
Ultra-Chisel™ FLOATING HITCH

Allows implement to negotiate undulations independently of the tractor for better ground gauging and depth control.
Exclusive Maintenance-Free Bearings
Great Plains Exclusive Maintenance-Free Bearings

Great Plains uses the exclusive PEER® TILLXTREME® Maintenance-Free Pillow-Block Bearings in its gangs, as well as smaller TILLXTREME Maintenance-Free Bearings in its rolling attachments.





Specifications
Model
6324UC 12'' Shank Spacing
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
WORKING WIDTH
23' 9''
TRANSPORT WIDTH
13' 8''
TRANSPORT HEIGHT
11' 10''
PTO H P REQ
200-250
NO OF SHANKS (12'' SHANK SPACING)
24
