Great Plains 1006NT

Call for Price
Overview
10' End Wheel No-Till Compact Drill

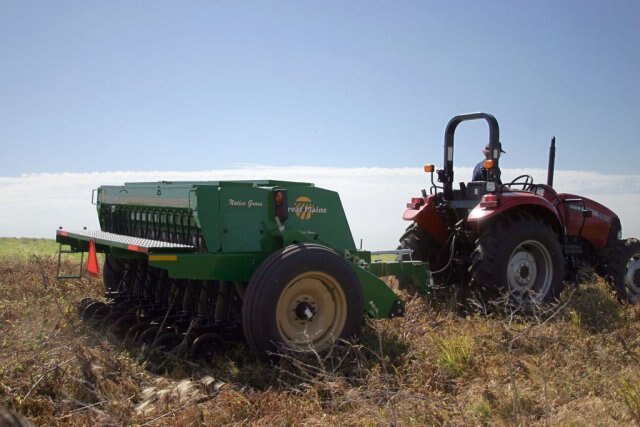

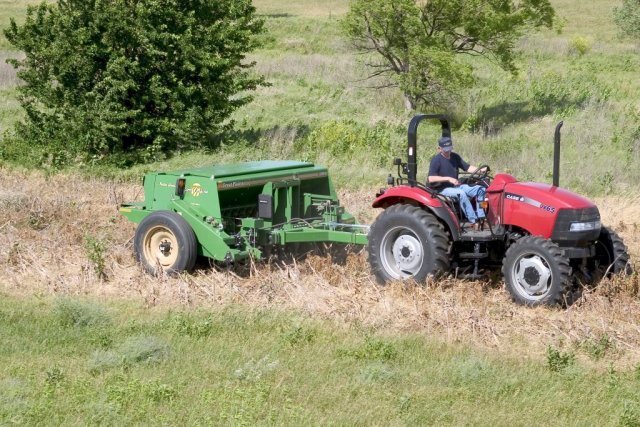

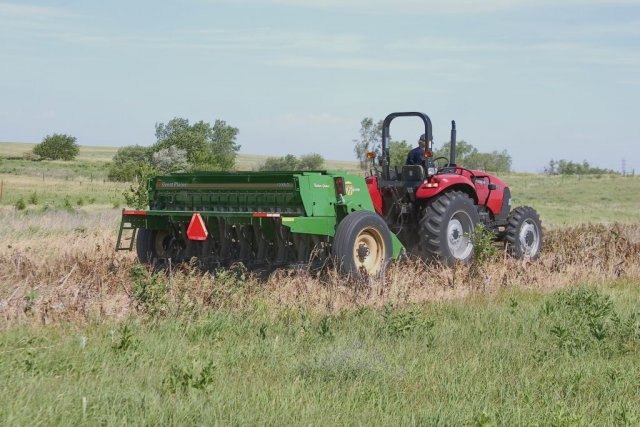

1006NT 10' End Wheel No-Till Drill

From food plots to food production, the Great Plains 10' End Wheel No-Till Drill (1006NT) is the ideal combination between the productivity of a large drill and the versatility of a compact one. This machine is perfect for seeding into pasture renovations and foot plots, and has long been used by conservation groups like Pheasants Forever chapters, NRCS offices, and roadside construction outfits that need machines to rent out that are simple to operate, yet durable enough to be returned, ready to rent out again.

The 1006NT Drill features large end wheels designed for unmatched ground gauging in rugged terrain. In addition, the inline end wheels minimize sideloading on contours and side-hills, dramatically extending the life of the no-till openers. Other features include 4-speed gearboxes, automatic clutch that disengages when the drill is lifted, and rain-tight lids for maximum seed and fertilizer protection. With multiple box options, its versatility is unmatched as well.
 Product Features
WIDE SEED CUPS
3P500 62

Exclusive Great Plains fluted feed cup delivers outstanding accuracy. Whether the seed you are drilling is small, large, or fragile, our time-proven metering system will deliver the rate you choose, evenly and gently.
STANDARD WEIGHT BRACKETS
1006NT 25

Add standard tractor weights to the weight brackets for even better penetration in tough no-till conditions.
LOCK-OUT HUBS
1006NT 27

Disengages all drive components, reducing wear and tear during transport.
FOLDING TONGUE OPTION
FoldingTongue

Folds the tongue in half to use less storage space.





Specifications
Model
1006NT
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Great Plains
ROW SPACINGS
7'' (17.78cm), 7-1/2'' (19.05 cm), 8'' (20.32cm)
NUMBER OF OPENERS
16, 15, 14
TIRE SIZE
9.00 x 24 8-ply
H P REQUIREMENTS (min)
75 hp
WEIGHT (approx Range)
4,500 lbs* (2,041 kg)
WORKING WIDTH
10' (3.05 m)
LENGTH (transport)
13'10'' (4.22 m)
CLEARANCE (transport)
13.5'' (34.29 cm)
HEIGHT (transport)
6'7'' (2.0 m)
MAIN BOX CAPACITY
25 bu.
OPENER SERIES
06 Series
WIDTH
12'7'' (3.84 m)
