Single-fork Tail Wheel

Single-fork tail wheels enhance weight distribution, improve stability and enhance castering effect when maneuvering.

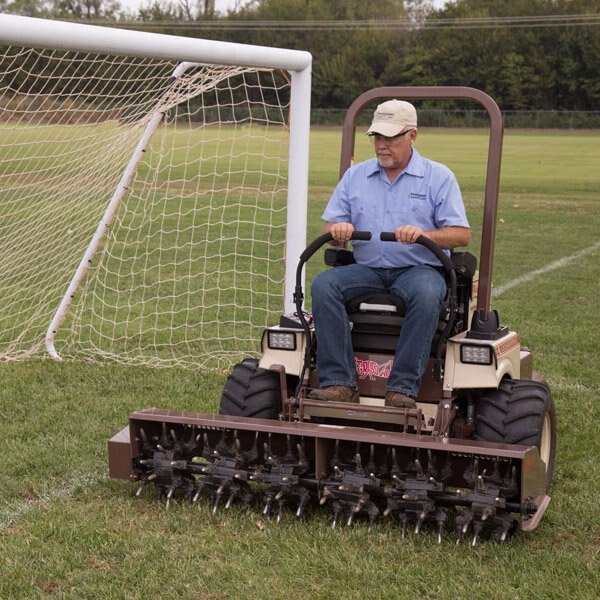

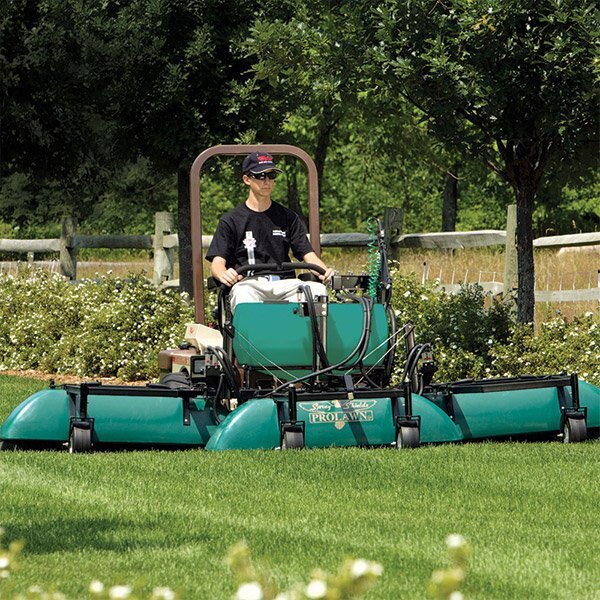

QuikConverter™ Implement Capability

• Add or remove implements in minutes without tools with QuikConverter™ Implement System

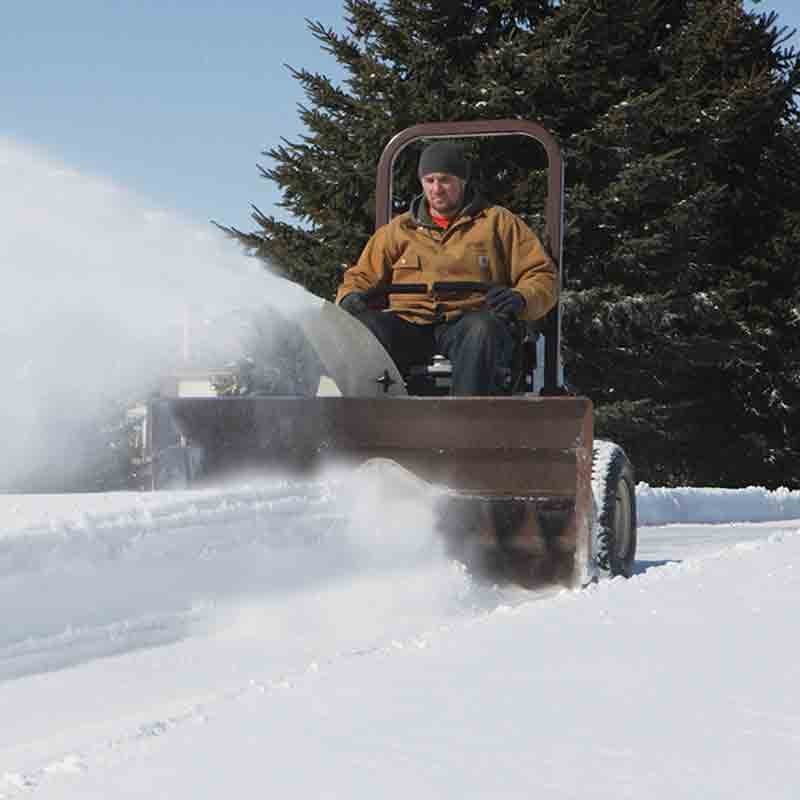

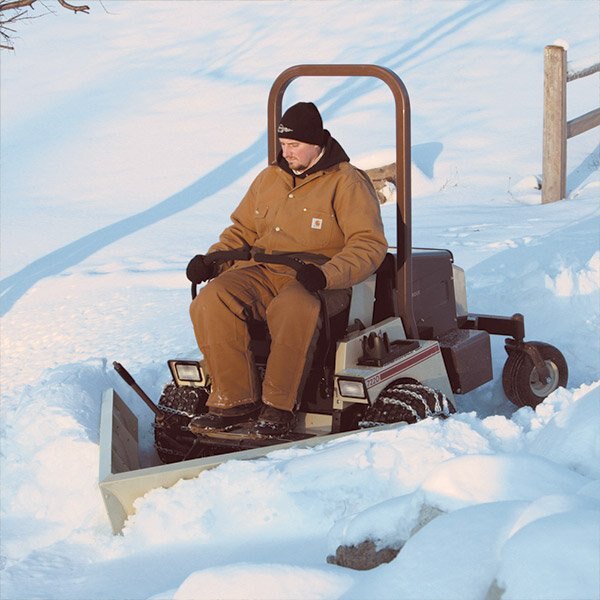

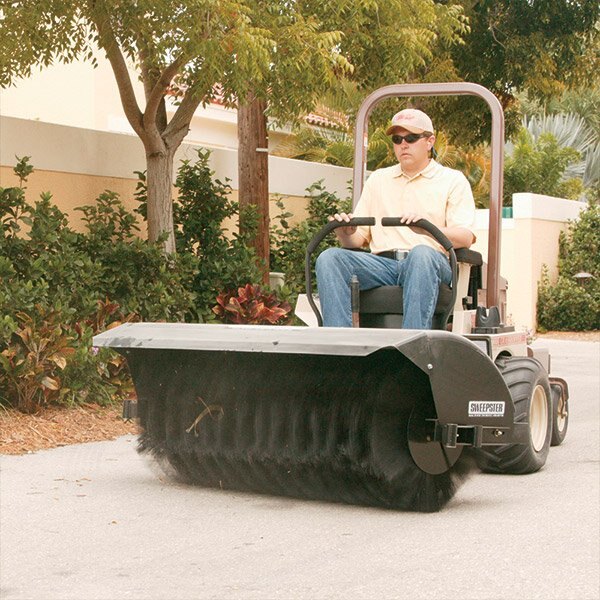

• Equip your out-front mower with a wide range of tools, including turf cleanup, renovation and snow removal implements that extend your productivity year-round

Heavy-duty Deck

• Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
• Specially designed cutting chambers enhance airflow for better cut quality

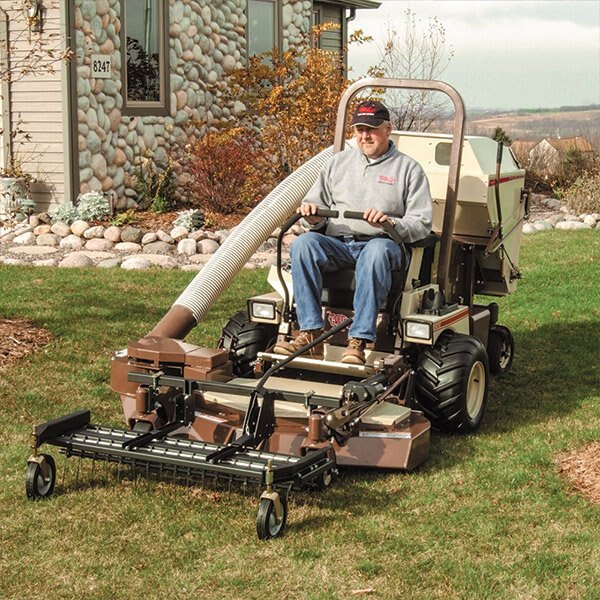

• Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
• Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
• Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
• Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion

Warranty

• ommercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
• Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.

Vigilant Operator Presence System™

• Standard, low profile operator protection structure (OPS) with an adjustable seatbelt
• Dampened steering levers that return to neutral from forward and reverse
• Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position

Built for Long Life

• Robotically-welded, high-grade steel construction and I-beam reinforcement for long-lasting durability
• Centered-bearing design provides greater load-bearing capacity to easily handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
• Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance

Kohler Command Pro Engine

747 cc, 2-cylinder, air-cooled Kohler Command PRO V-Twin engine

Minimal Maintenance

- Fewer than 10 grease points and easy top-side access to belts and filters

- 1,000-hour transmission fluid change intervals

- Self-tensioning belts minimize cost and labor on routine maintenance

PowerFold Electric Deck Lift

- Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry's first electric deck lift (introduced in 2004).

- PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.

- The feature also adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.

Exclusive T - Drive Transmission

- Tandem 12cc Parker pumps-in-reservoir transmission is specifically designed for turf-care applications

- In-line CoolFan™ cooling system and integrated, replaceable, high-efficiency fine-particle filter

- Design directs more power to the cutting deck as power-sapping components are eliminated

AntiVibe Power Platform

Isolates the engine and T-Drive™ from the operator platform for an unprecedented vibration-free experience

Ultimate Operator Station

ComfortZone™ seat eliminates jostles and jolts with coil-spring suspension and a fully padded, high-back seat, padded armrests and variable density foam cushion. Iso-mounting smooths the ride, erases fatigue and keeps the operator comfortably in control at faster mowing speeds

Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach

One- or two handed operation with QuikAjust Tilt™ dual levers with 9-inch comfort range to custom fit operator's reach. Levers automatically return to neutral from either forward or reverse position and are less strenuous than riding mowers with steering wheels.
