Shredding and chopping in once

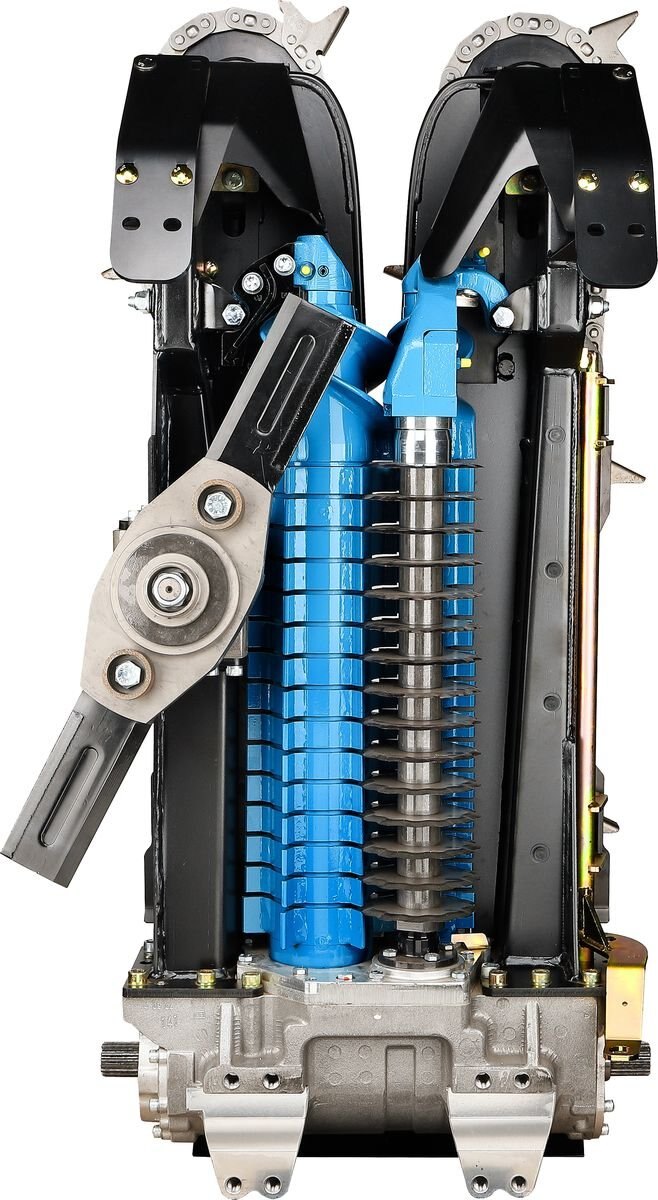

Two stalk rollers with different-sized diameters seize the plant and pull it downward in a constant motion. At the same time, another rotor fitted with 15 rotary knives cuts the plant up into uniformly short sections. This design ensures the plant is shredded during harvest, enabling faster rotting.

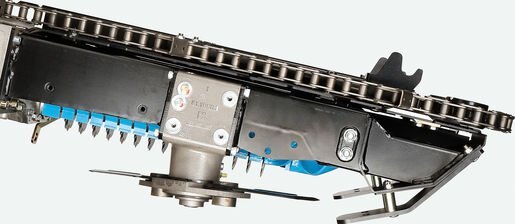

The horizontal chopper is located in the front area to the side of the picking row. This optimised position means that the plant is cut off very close to the ground at full speed, leaving a particularly short stubble which no longer provides sufficient habitat for pests.

Two stalk rollers with different-sized diameters seize the plant and pull it downward in a constant motion. At the same time, another rotor fitted with 15 rotary knives cuts the plant up into uniformly short sections. This design ensures the plant is shredded during harvest, enabling faster rotting.

Safe and Reliable

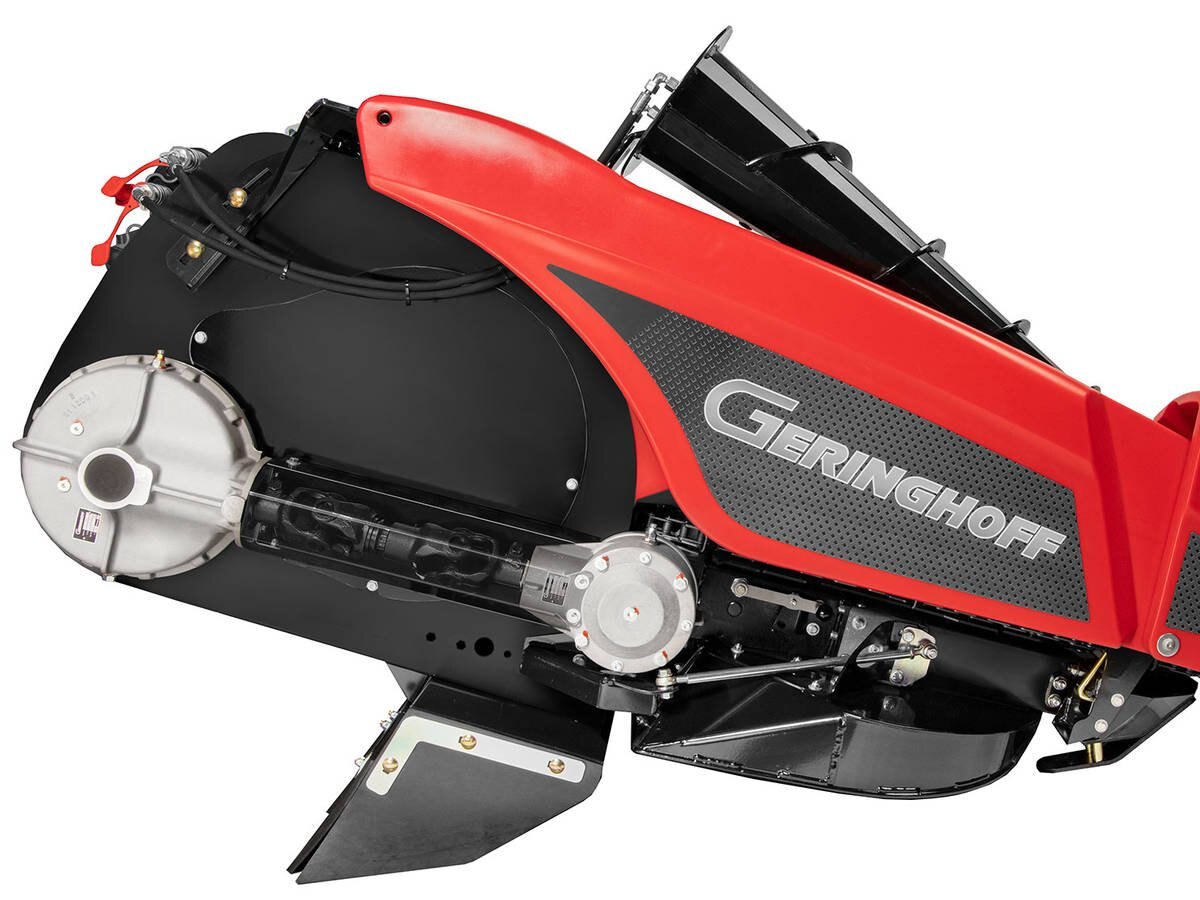

Geringhoff uses Centaflex® couplings to connect the row units. The dampers on the couplings significantly reduce vibration and shock loads on the gearbox that drives the row unit, thereby multiplying its reliability.

Excellent service life

An excellent service life, low maintenance, great flexibility, and compatibility with different combines are truly good reasons for choosing Geringhoff.

A unique gathering chain idea

Always ready and perfectly tensioned

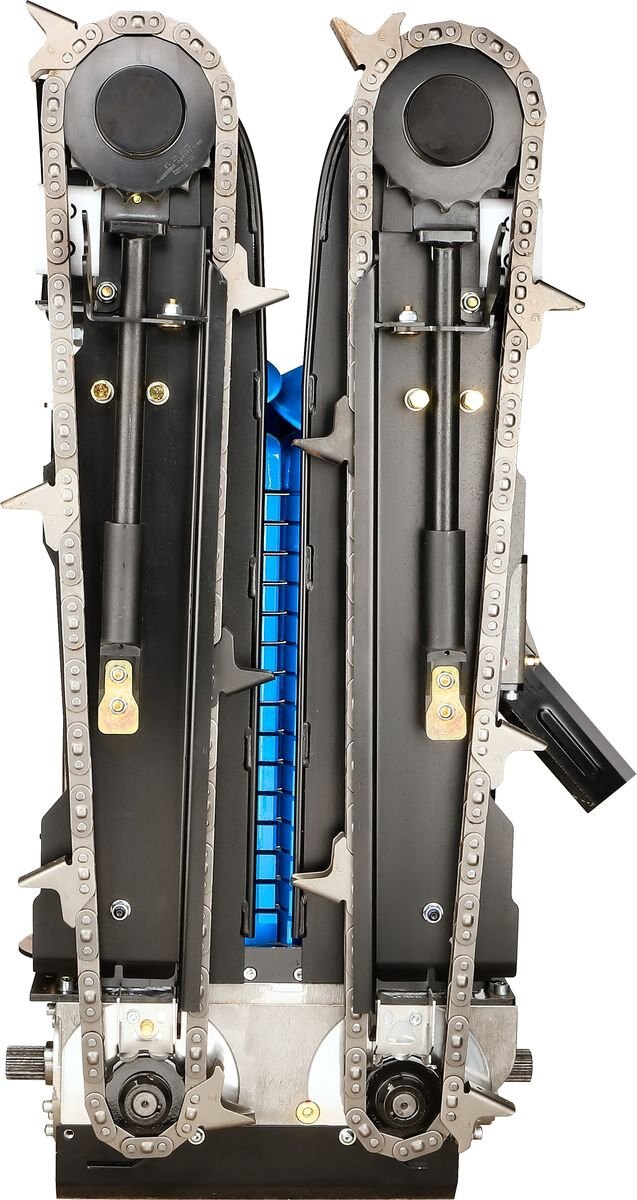

The gathering chains are tensioned automatically. The gathering chain can be changed quickly and easily thanks to the Geringhoff special tool. As the chain tensioner is tuned to the patented sprocket, the driveline is protected from blockages caused by debris and gearbox failures are avoided. Geringhoff is the only manufacturer to offer automatic tensioning for the gathering chains.
