ID # 16656284

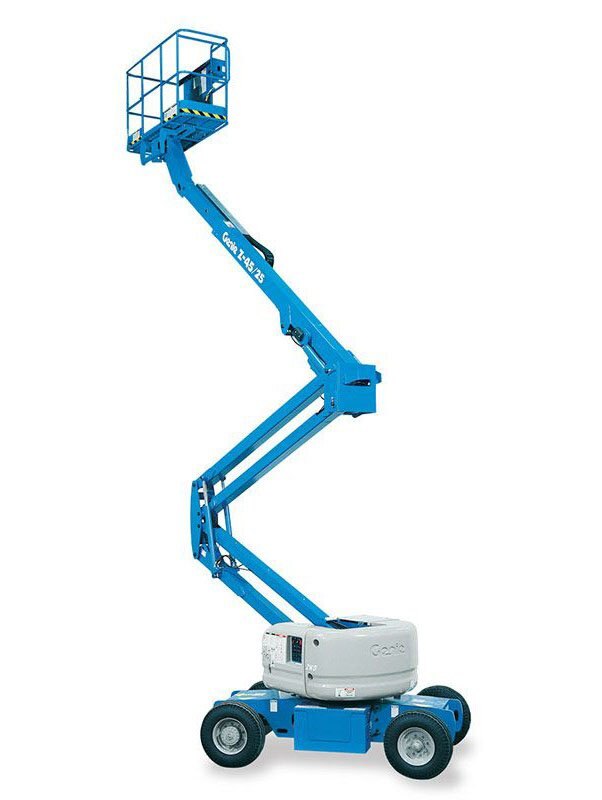

Genie Z-45/25J DC

  • Genie Z 45/25J DC
  • Genie Z 45/25J DC
  • Genie Z 45/25J DC
  • Genie Z 45/25J DC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Articulated Boom Lifts
The Genie® Z®-45/25J DC electric and bi-energy articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments. They’re 48V DC machines with a diesel-powered generator acting as a 100-amp battery charger, making these articulating boom lifts ideal for indoor and outdoor applications.


 Overview
  • 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
  • Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
  • Self-leveling platform features a 160° hydraulic rotation for Genie Z-45/25 J models
  • Self-leveling platform features 180° powered rotation for precise positioning and easy operation
 Options

  • Chassis Options

    • Tow package

    Tire Options

    • Industrial non-marking foam-filled tires (water based)

    Engine Options (Bi-Energy models only)

    • 13 hp Kubota Z482 Tier 4f, diesel driven alternator
    • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
    • Diesel catalytic scrubber muffler

    Lift/Turntable Options

    • AGM maintenance-free batteries
    • Battery charge indicator (BCI): standard on Bi-Energy model
    • Specialty hydraulic oil  (11 gal - cold weather, fire resistant, or biodegradable)
    • Low voltage interrupt with BCI
    • Low voltage interrupt with BCI: Bi-Energy only
    • Power inverter, 800W, 120V AC, 60 Hz: DC models only
    • Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box cover
    • EE rating, DC only

    Platforms

    • 4 ft. steel platform
    • 6 ft. dual entry platform with ½ height mesh inserts and side swing gate

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit with swing gate
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Panel cradle package
    • Platform auxiliary top rail, 6' platform
    • Traveling fall arrest anchor system: requires 6ft platform

Specifications
Model
Z-45/25J DC
Category Name
Aerial Lifts
Year
2021
Sale Type
New
Manufacturer
Genie
Platform Capacity
500 lb | 227 kg

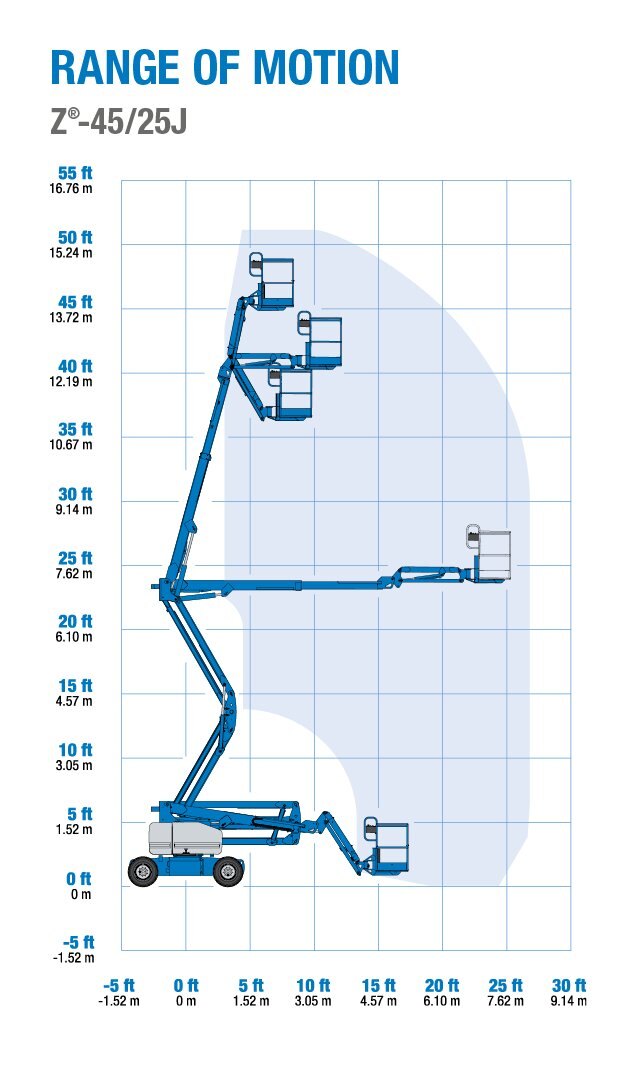

Max Working Height
51 ft 9 in | 15.94 m
Max Horizontal Reach
25 ft 1 in | 7.69 m
Machine Width And Length
12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m
Max Up And Over Clearance (riser Extended)
23 ft 9 in | 7.24 m
