ID # 16656270

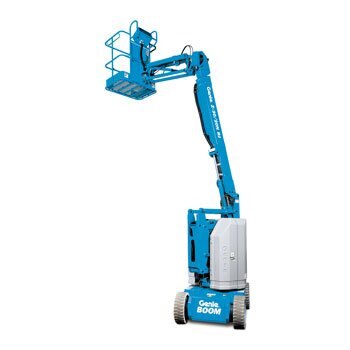

Genie Z-30/20 N RJ

  • Genie Z 30/20 N RJ
  • Genie Z 30/20 N RJ
  • Genie Z 30/20 N RJ
  • Genie Z 30/20 N RJ
  • Genie Z 30/20 N RJ
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Articulated Boom Lifts
The Genie® Z®-30/20 N RJ articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, and includes a rotating jib for 180°of horizontal rotation.

 Overview
  • Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
  • Compact chassis for narrow aisle access
  • The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation.
  • 35% gradeability drive performance and 3.3 mph travel speed
 Options

Certification Options

  • EE rating

Lift/Turntable Options

  • AGM maintenance-free batteries
  • Battery charge indicator (BCI)
  • Specialty hydraulic oil  (6 gal - cold weather, fire resistant, or biodegradable)
  • Low voltage interrupt with battery charge indicator (BCI)
  • Power inverter, 800W, 120V AC, 60 Hz
  • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover

Platform Options

  • Air line to platform:  ? in. inner diameter
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Platform ½ height mesh inserts with swing gate
  • Platform auxiliary top rail
  • Platform swing gate
Specifications
Model
Z-30/20 N RJ
Category Name
Aerial Lifts
Year
2021
Sale Type
New
Manufacturer
Genie
Platform Capacity
500 lb | 227 kg
Max Working Height
35 ft 2 in | 10.89 m
Max Horizontal Reach
20 ft 6 in | 6.25 m
Machine Width And Length
12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m
Max Up And Over Clearance (riser Extended)
12 ft 8 in | 3.86 m
Documents
