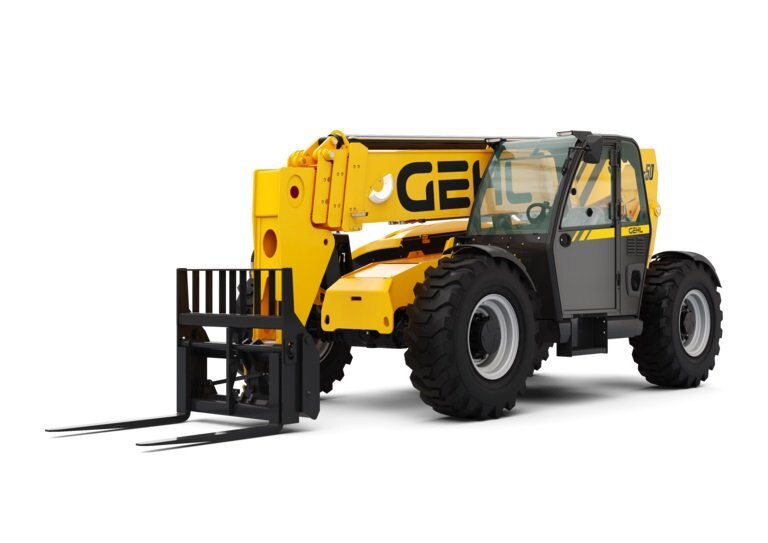

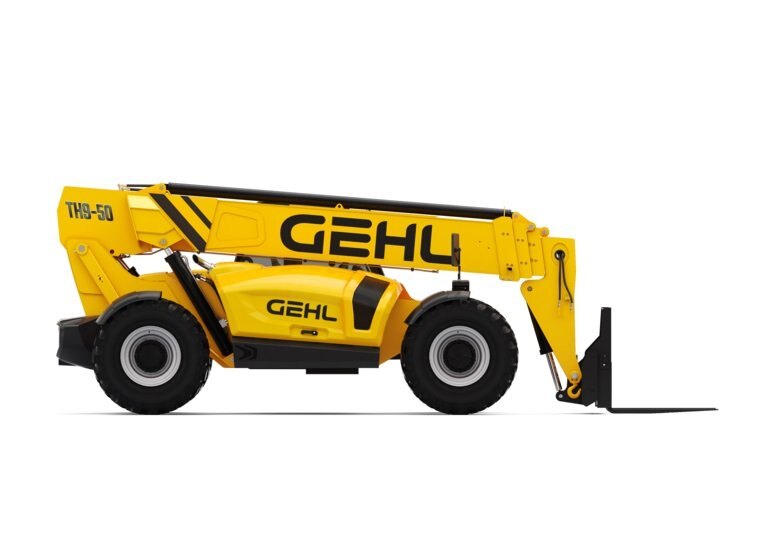

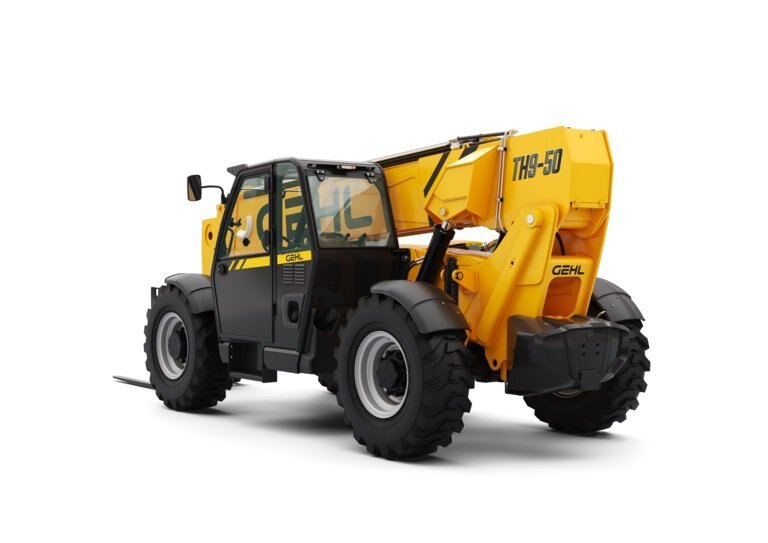

Gehl TH9-50 - NEW Construction telehandlers
Call for Price
Overview
Specifications
capacities
weight and dimensions
performances
engine
transmission
hydraulics
tank capacities
noise and vibration
miscellaneous
technical features
Documents
TH9-50 - NEW |
Model
TH9-50
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Gehl
Max. Capacity
4082.33 kg
Max. Outreach
11.15 m
Max. Lifting Height
15.29 m
Wheelbase
3.50 m
Tires Type
Pneumatic
Overall Width
2.54 m
Tilt-up Angle
34 °
Overall Height
2.59 m
Overall Weight
12995.42 kg
Tilt-down Angle
96 °
Ground Clearance
0.48 m
Overall Cab Width
0.95 m
External Turning Radius
3.88 m
Overall Length To Carriage
6.40 m
Overall Length (with Forks)
7.62 m
Forks Length / Width / Section
1219 mm x 101 mm / 50.80 mm
Frame Leveling Longitudinal +/-
10 °
Dump
6 s
Crowd
4 s
Lifting
16 s
Lowering
11 s
Extension
18 s
Retraction
16 s
Engine Norm
Tier 4 final
Engine Brand
Deutz
Engine Model
TCD 3.6 L4
Max. Torque / Engine Rotation
390.50 Nm @ 2300 rpm
I.C. Engine Power Rating - Power (kW)
127 Hp / 95 kW
Number Of Cylinders / Capacity Of Cylinders
4 - 3600 cm³
Parking Brake
Hydraulic spring release SAHR
Service Brake
Wet disc brakes
Max. Travel Speed
32 km/h
Transmission Type
Powershift
Number Of Gears (forward / Reverse)
5 / 3
Hydraulic Pump Type
Axial piston
Hydraulic Flow - Pressure
151 l/min-275.80 bar
Fuel Tank
144 l
Engine Oil
8.51 l
Hydraulic Oil
159 l
Diesel Exhaust Fluid (AdBlue® Type)
15.14 l
Noise At Driving Position (LpA)
80 dB
Controls
Joystick
Drive Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 2
