gehl

ID # 31197058

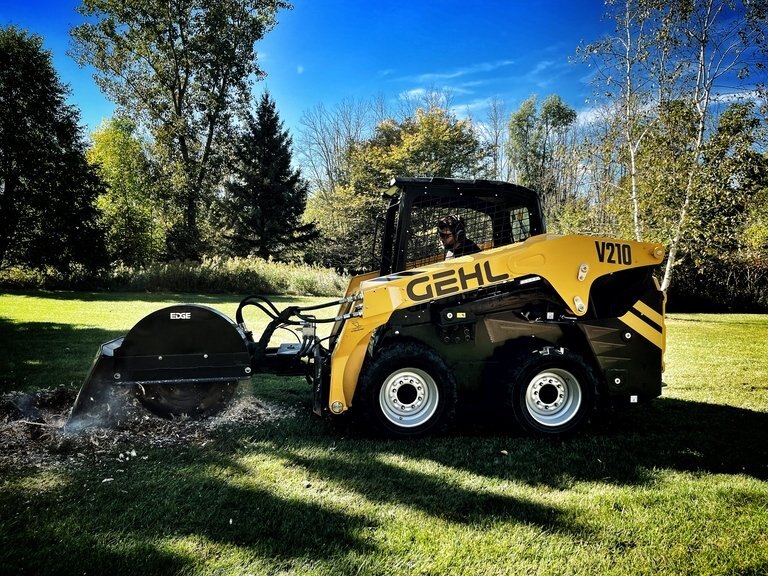

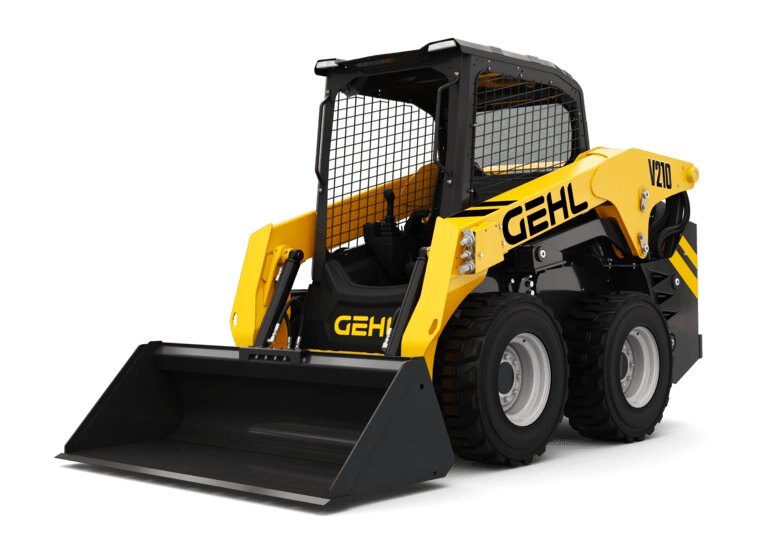

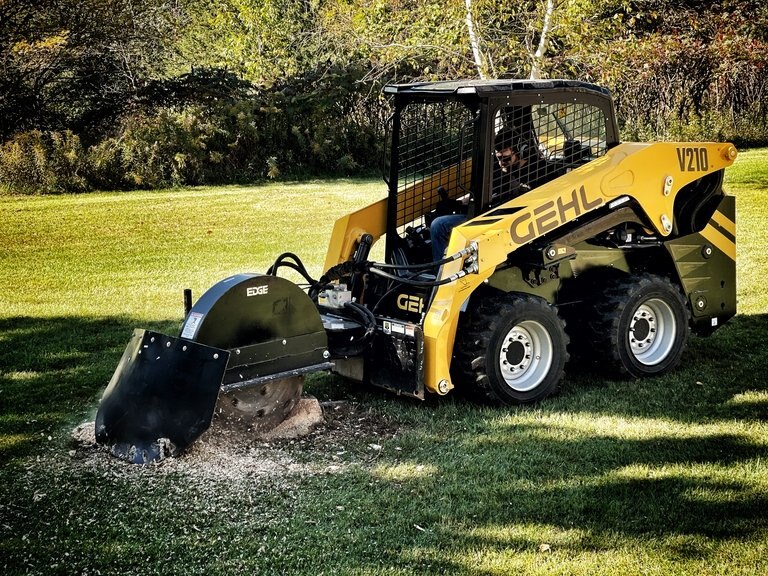

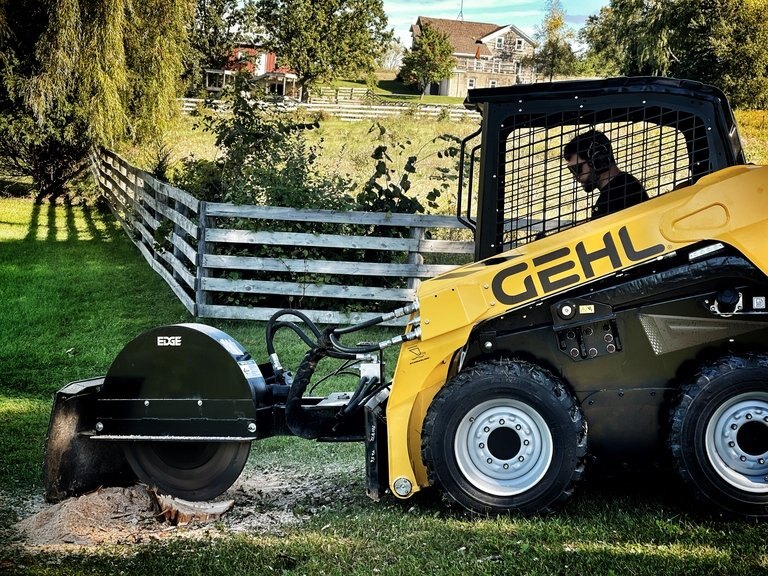

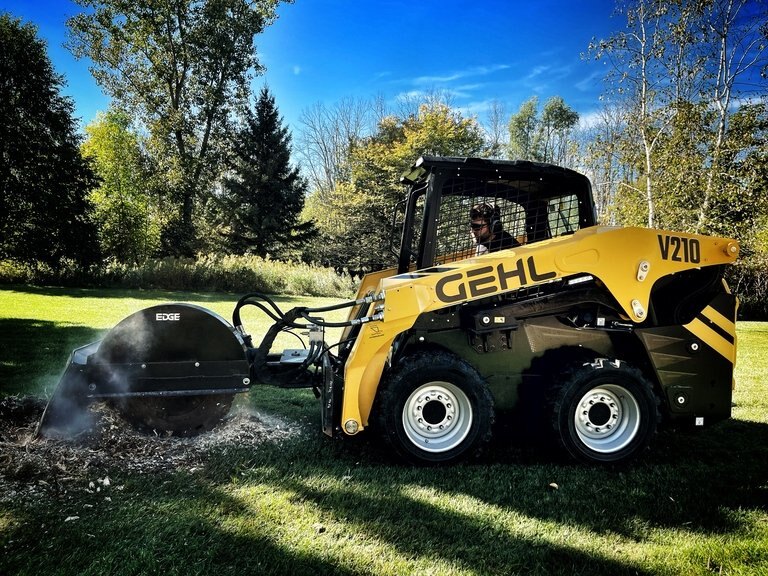

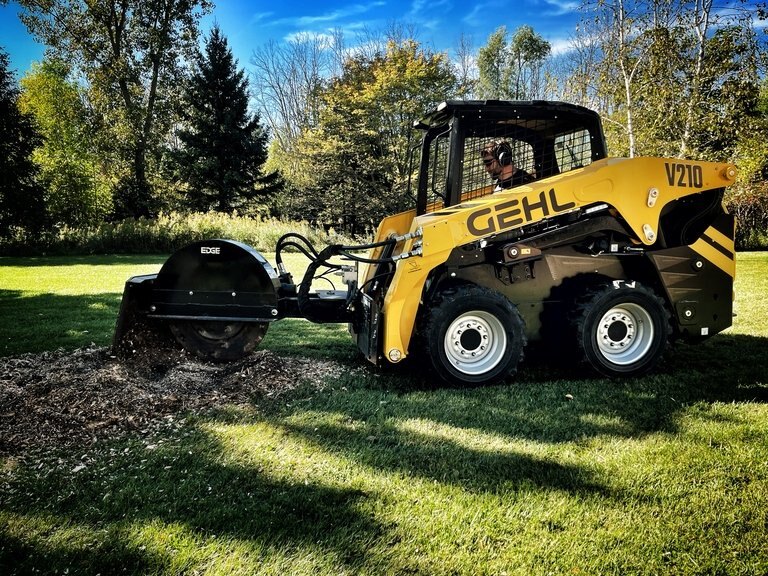

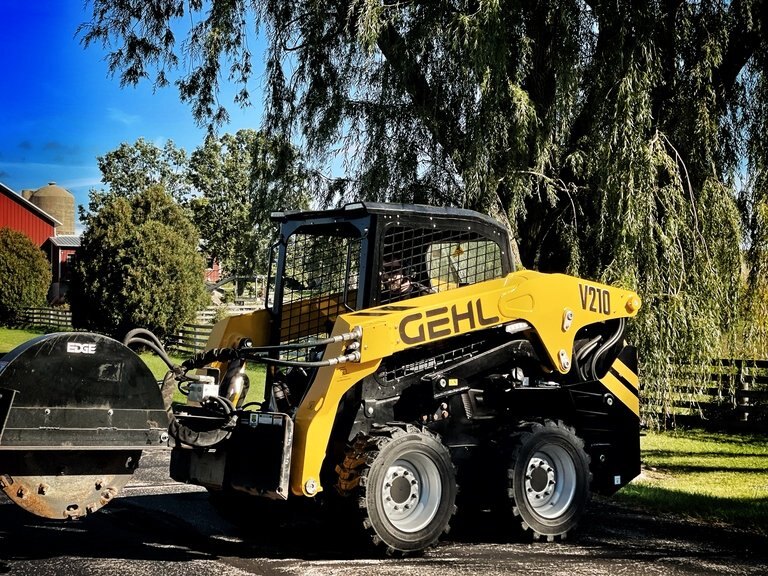

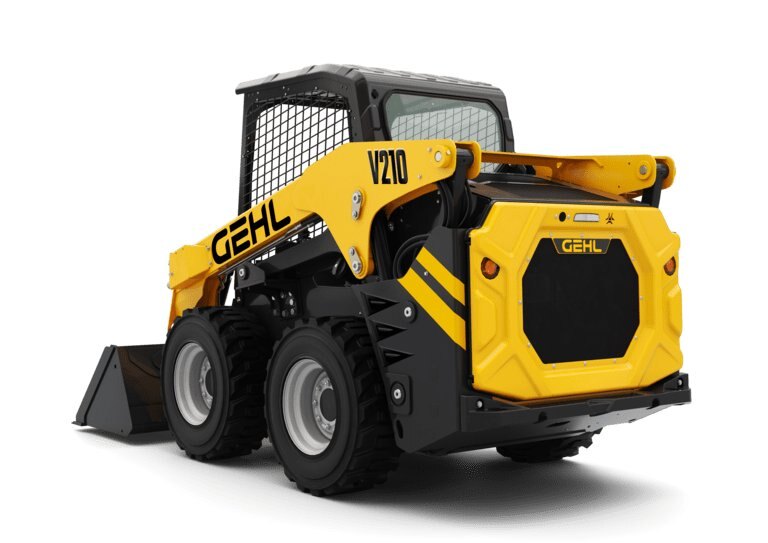

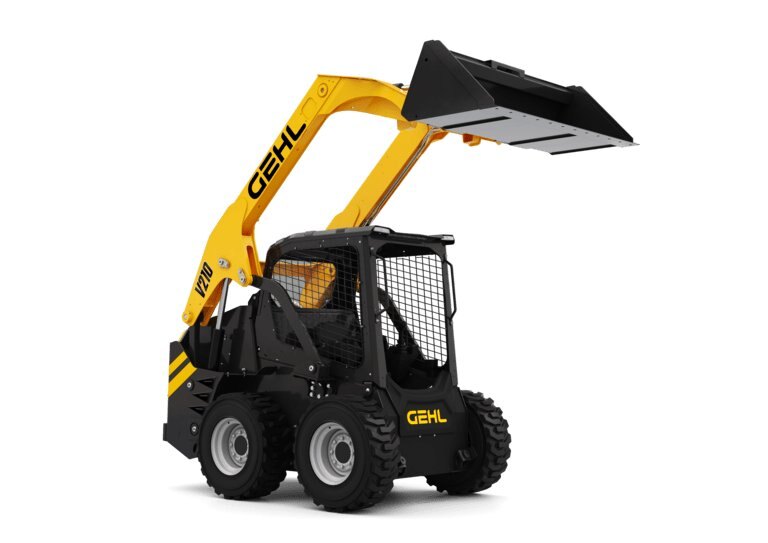

Gehl V210 COMPACT LOADERS

Call for Price
Overview

V210
Skid Loaders

Does your daily grind involve uneven terrain, demanding conditions, and unpredictable weather? Look no further than the mid-sized V210, a vertical lift Skid Loader that's built to keep moving through thick and thin. Balancing power and maneuverability in a single machine, this durable and capable Skid Loader boasts 2,100 lbs. of rated operating capacity—add an optional counterweight to lift even more. Its small frame and highly durable treads make space-constrained worksites a breeze to navigate, keeping you working and focused on the task at hand. This sturdy, multi-purpose machine tackles daily tasks with ease and ensures you're ready to adapt to whatever challenges come your way.

Specifications
Model
V210
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Gehl
capacities
Operating Weight
3393 kg
Tipping Capacity
1905 kg
Operating Capacity At 50% Tipping Load
952.54 kg
weight and dimensions
Wheelbase
1092 mm
Dump Height
2286 mm
Ground Clearance
178 mm
Rear Departure Angle
25 °
Seat To Ground Height
952.50 mm
Dump Reach - Full Height
851 mm
Dump Angle At Full Height
42 °
Overall Width Less Bucket
1623 mm
Overall Length With Bucket
3543 mm
Overall Length - Less Bucket
2743 mm
Overall Height To Top Of ROPS
2032 mm
Rollback Angle At Full Height
92 °
Clearance Radius - Front With Bucket
2146 mm
Height To Hinge Pin – Fully Raised
3061 mm
Overall Operating Height - Fully Raised
4013 mm
performances
Travel Speed (unladen)
12.10 km/h
Travel Speed With Two-Speed Option - Maximum
18.70 km/h
engine
Engine Norm
Tier 4
Engine Brand
Yanmar
Engine Model
4TNV98C-NGL
Power Source
Diesel
Starter (kW)
3 kW
Battery Voltage
12 V
Gross Power (kW)
70.70 Hp
Alternator - Ampere
100 A
Number Of Cylinders
4
Engine Cooling System
Water
Max. Torque / Engine Rotation
241 Nm / 1625 rpm
hydraulics
Auxiliary Hydraulic Pressure
239.59 bar
Standard Flow - Auxiliary Hydraulics
86.50 l/min
High-Flow Auxiliary Hydraulics – Option
114 l/min
High-Flow Auxiliary Hydraulics Pressure – Option
229.25 bar
tank capacities
Fuel Tank
106 l
Displacement
3.30 l
Hydraulic Tank Capacity
22.70 l
technical features
Name Link
DOWNLOAD TECHNICAL SHEET Download
