gehl

ID # 31183179

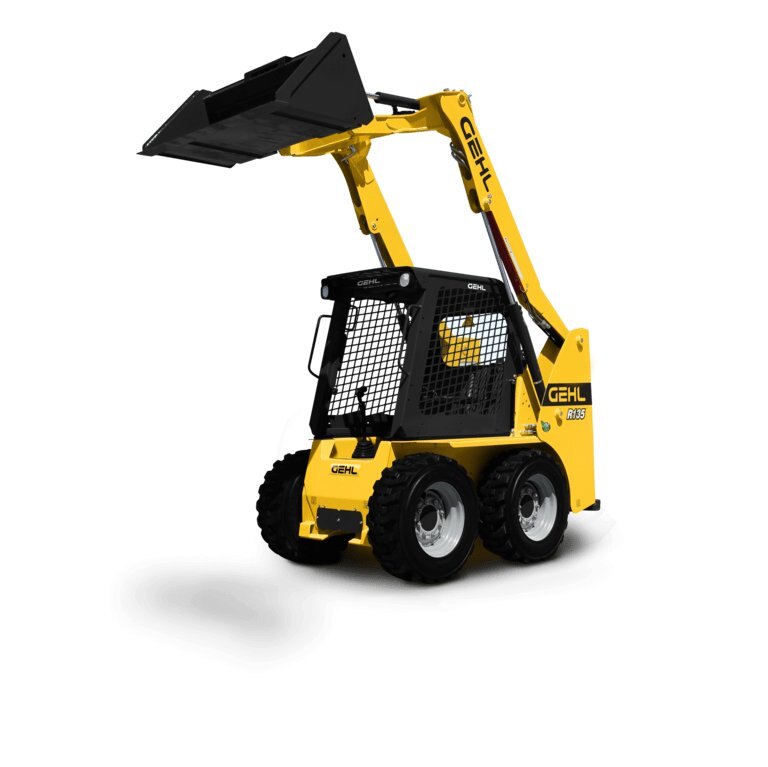

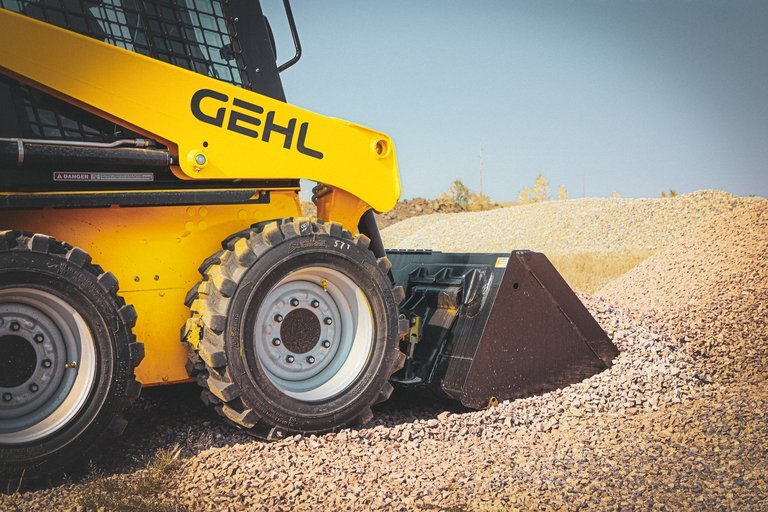

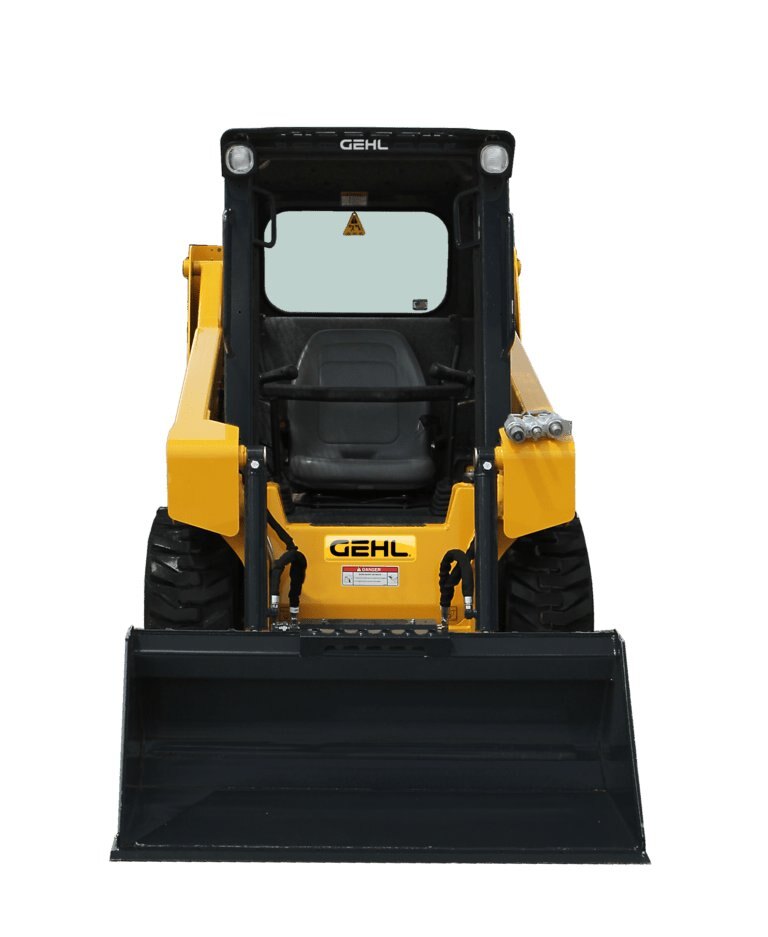

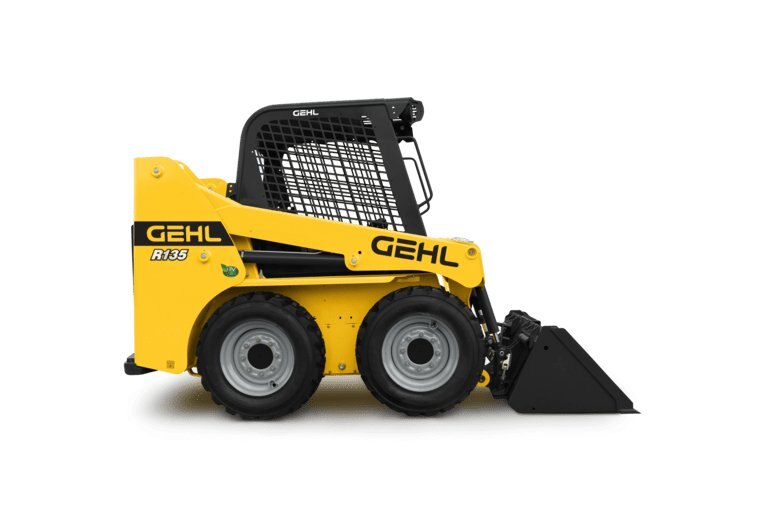

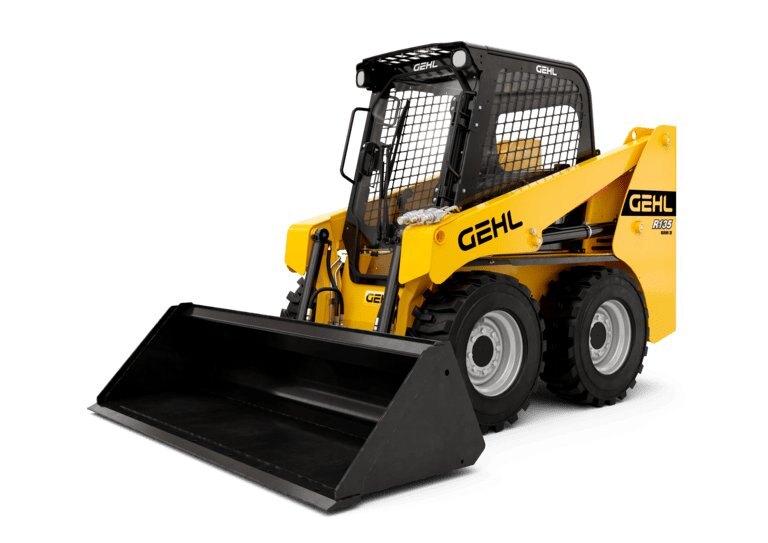

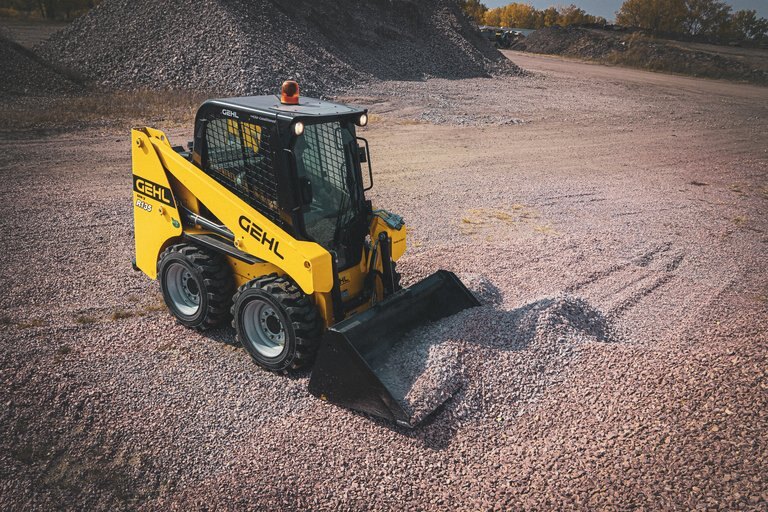

Gehl R135 GEN:2 COMPACT LOADERS

Call for Price
Overview

R135 GEN:2
Skid Loaders

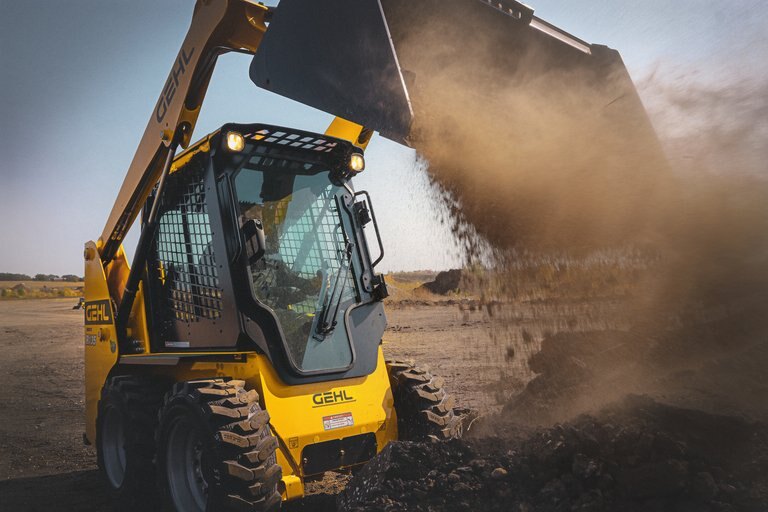

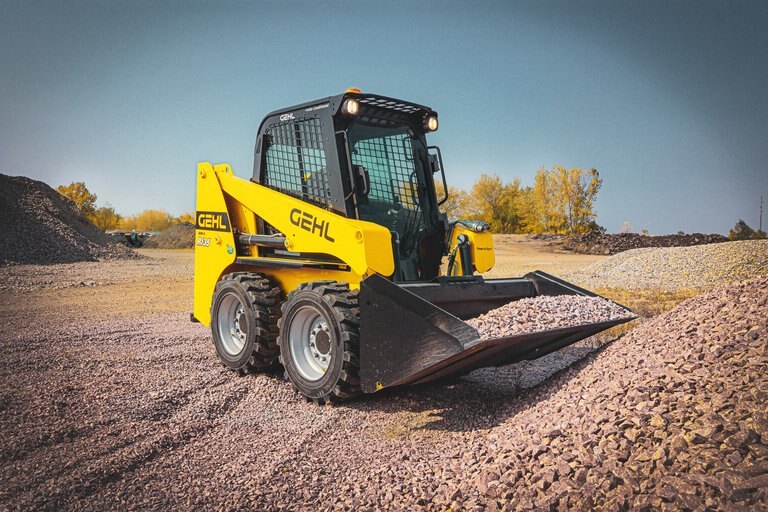

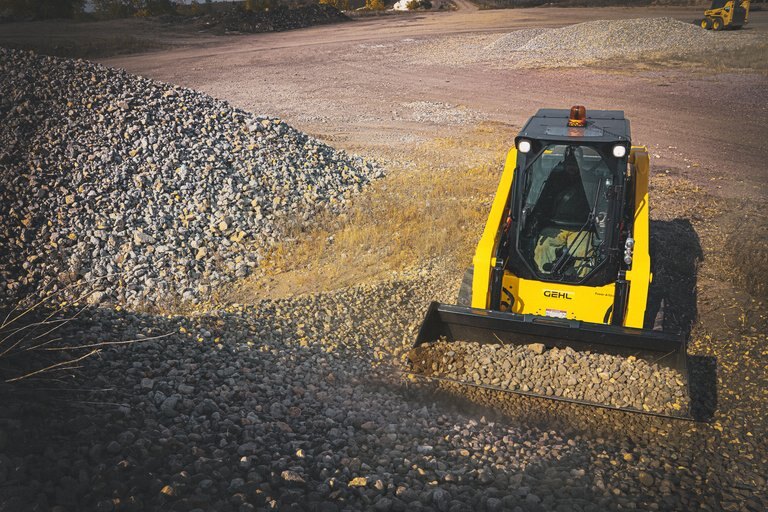

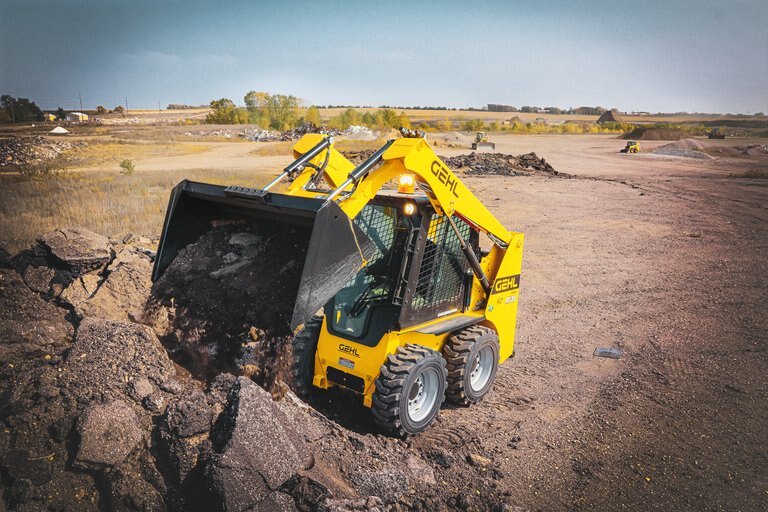

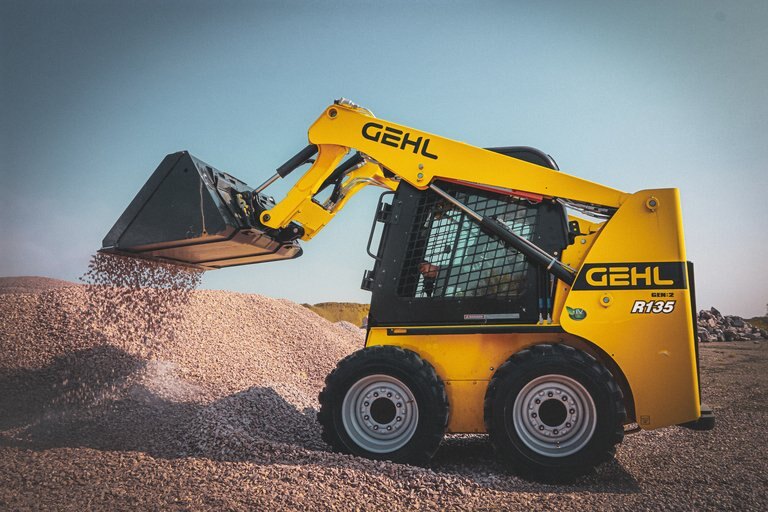

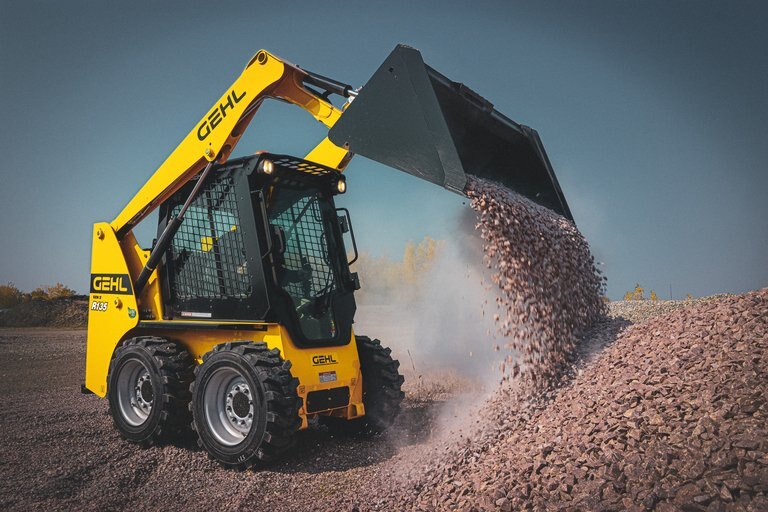

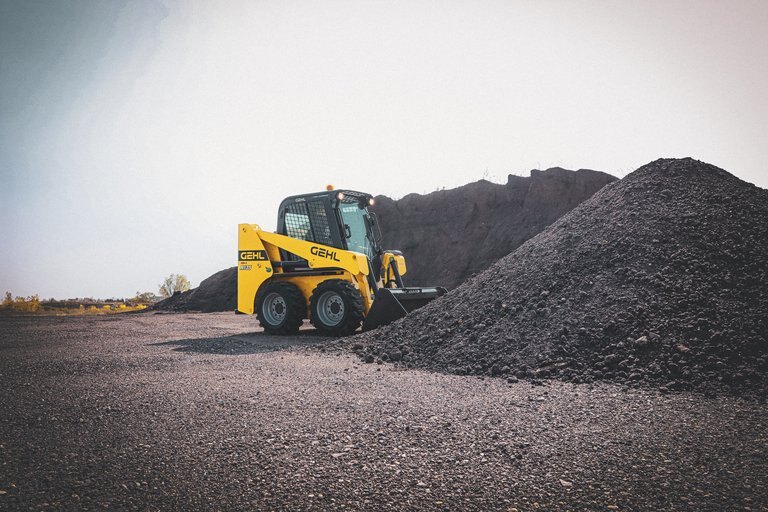

Born through the challenges of farm work but built for success everywhere else, the compact R135 GEN:2 delivers extra lifting capacity for those who need a nimble yet strong Skid Loader. Featuring power where it matters, this machine easily navigates through narrow gates and is more manageable during transport—getting you to wherever work needs doing, without causing a commotion. This new version of the R135 is packed with intuitive controls and designed for comfort, helping reduce operator fatigue during long days on the job. Low-effort controls make difficult jobs a cinch, and an air-ride seat along with other optional features means you'll go home at the end of a tough day without feeling like you've been hit by a ton of bricks.

Specifications
Model
R135 GEN:2
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Gehl
capacities
Operating Weight
2383.62 kg
Tipping Capacity
1224.69 kg
Operating Capacity At 50% Tipping Load
612.34 kg
Rated Operating Capacity With Optional Counterweight
680 kg
weight and dimensions
Wheelbase
950 mm
Dump Height
2120 mm
Bucket Width
1372 mm
Ground Clearance
201 mm
Rollback At Ground
28 °
Rear Departure Angle
25 °
Seat To Ground Height
871.22 mm
Dump Reach - Full Height
591 mm
Dump Angle At Full Height
40 °
Overall Width Less Bucket
1364 mm
Overall Length With Bucket
3073.40 mm
Overall Length - Less Bucket
2359.66 mm
Overall Height To Top Of ROPS
1930 mm
Clearance Radius - Front With Bucket
1842 mm
Height To Hinge Pin – Fully Raised
2790 mm
Overall Operating Height - Fully Raised
3670.30 mm
performances
Travel Speed (unladen)
12.90 km/h
wheels
Standard Tires
10.00x16.5 HD
engine
Engine Norm
Stage IV, Tier 4 final
Engine Brand
Yanmar
Engine Model
4TNV88C
Power Source
Diesel
Starter (kW)
2.30 kW
Battery Voltage
12 V
Gross Power (kW)
46 Hp
Max. Torque / Engine Rotation
146.20 Nm / 1820 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
63.60 l/min
tank capacities
Fuel Tank
59.40 l
Displacement
2.19 l
Hydraulic Tank Capacity
34.80 l
noise and vibration
Environmental Noise (LwA)
101 dB
Vibration To Whole Hand/arm
< 1.77 m/s²
Whole-Body Vibration (ISO 2631-1)
0.81 m/s²
technical features
Name Link
DOWNLOAD TECHNICAL SHEET Download
