gehl

ID # 31183113

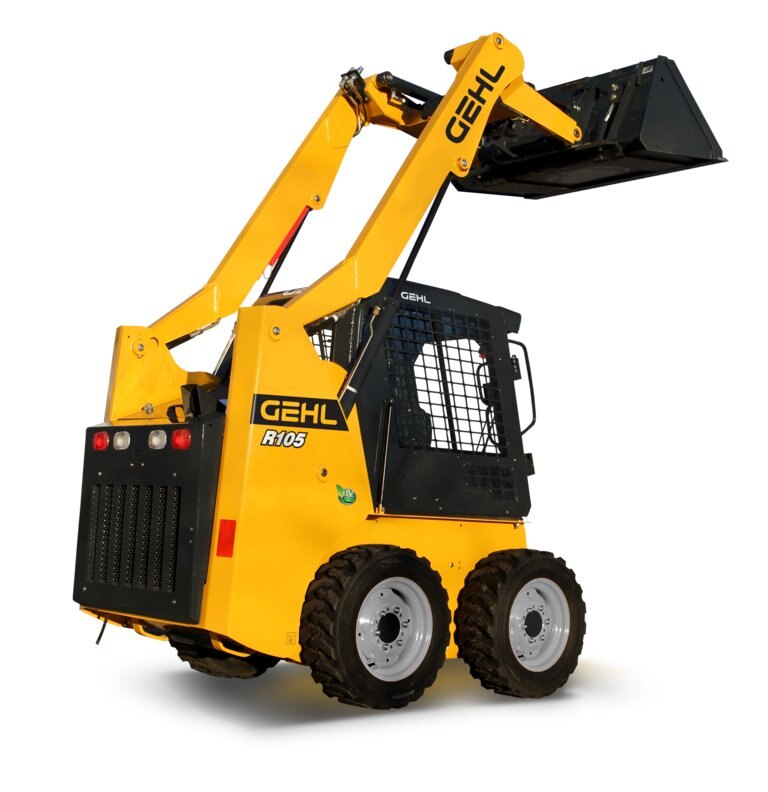

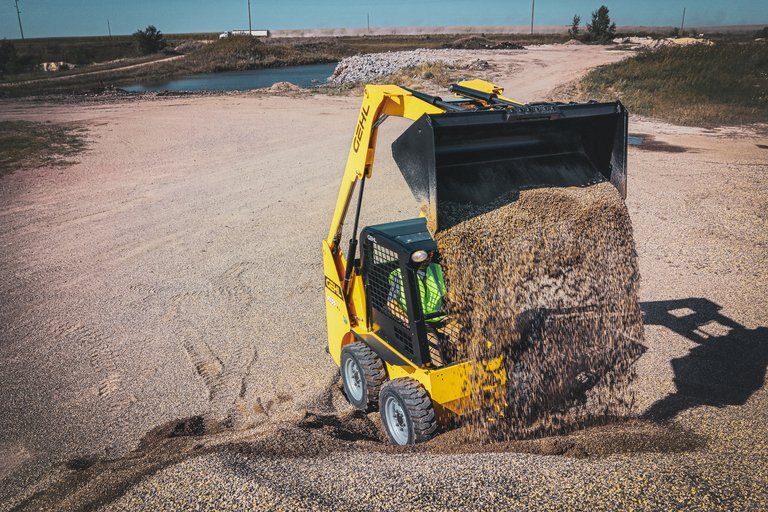

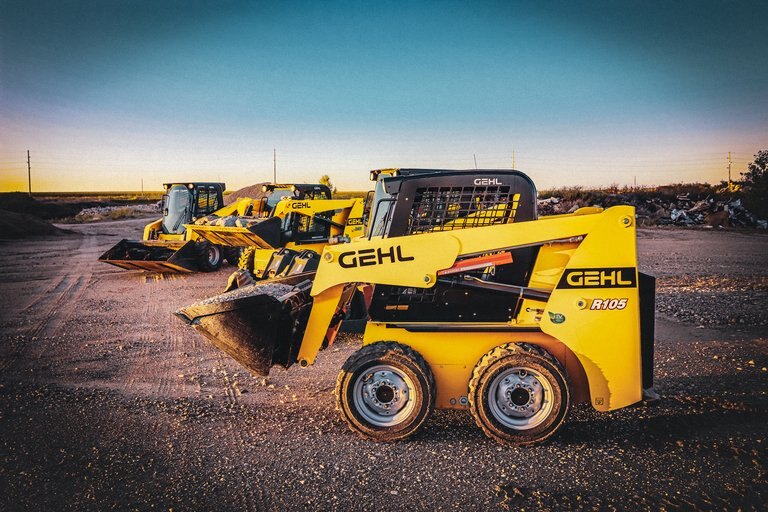

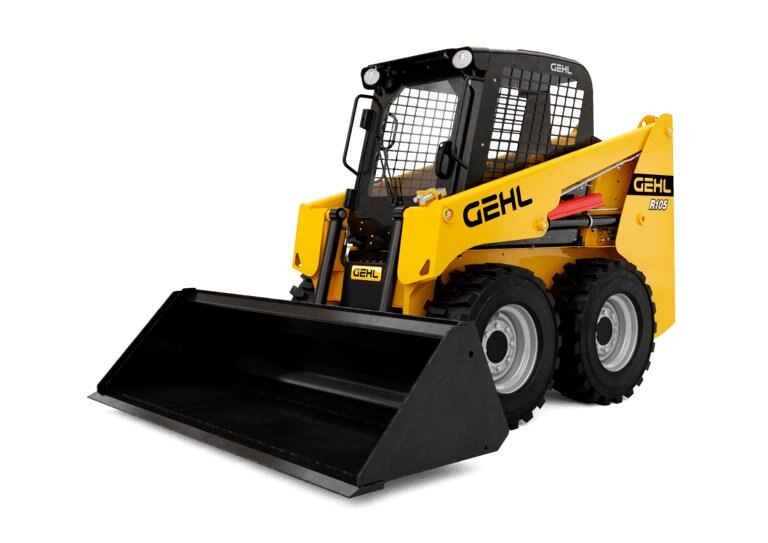

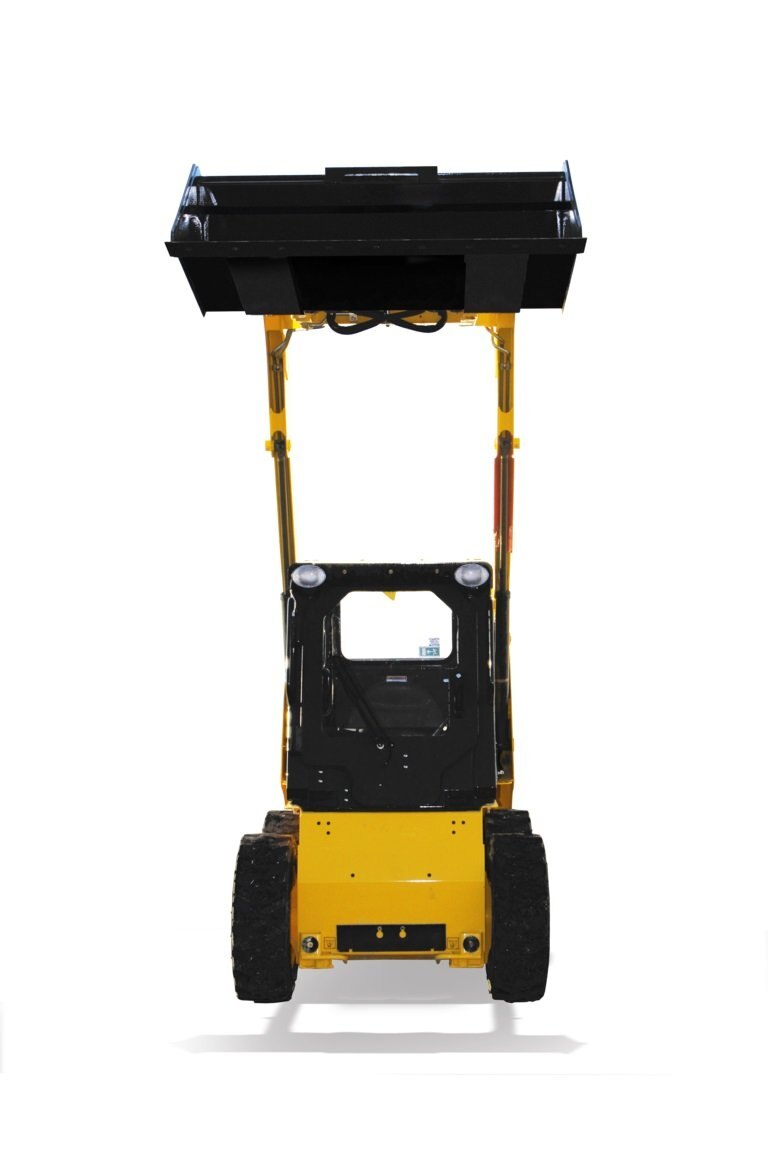

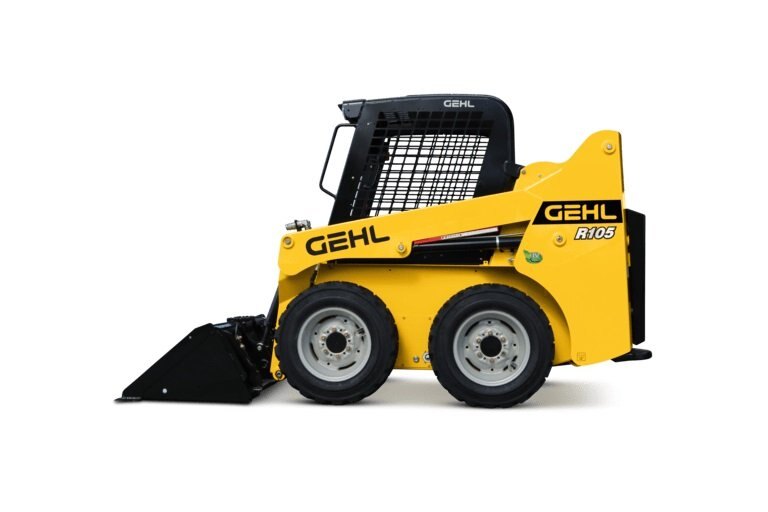

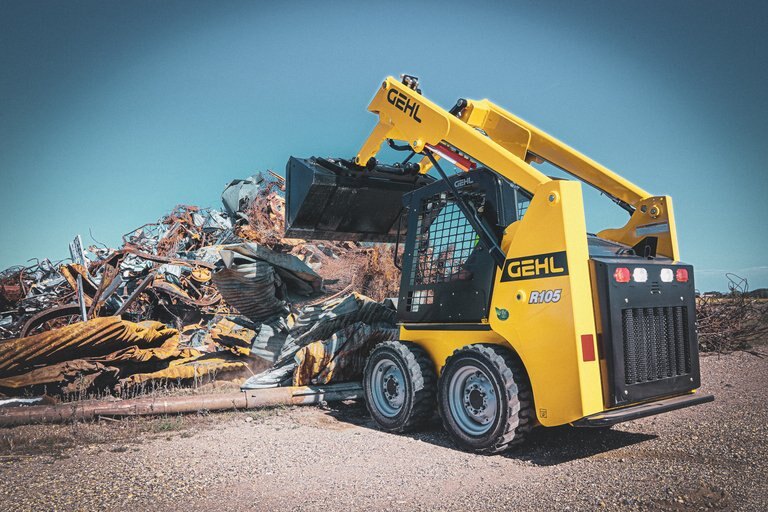

Gehl R105 COMPACT LOADERS

Call for Price
Overview

R105
Skid Loaders

Experience versatility with the R105, an ultra-compact Skid Loader that easily navigates tight spaces to handle the real-world demands tough operators like you face on a daily basis. Built to get work done on any terrain and in any condition, this nimble machine is compatible with our wide variety of Skid Loader attachments—adapting to whatever challenges are waiting on your to-do list. A whole lotta machine in a small package, the R105 is perfect for those looking to transform their property or business operations with a multi-purpose workhorse.

Specifications
Model
R105
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Gehl
capacities
Operating Weight
1905 kg
Tipping Capacity
952.54 kg
Operating Capacity At 50% Tipping Load
476.27 kg
Rated Operating Capacity With Optional Counterweight
533 kg
weight and dimensions
Wheelbase
876 mm
Dump Height
2083 mm
Bucket Width
1372 mm
Ground Clearance
159 mm
Rollback At Ground
31 °
Rear Departure Angle
22 °
Seat To Ground Height
826 mm
Dump Reach - Full Height
641 mm
Dump Angle At Full Height
40 °
Overall Width Less Bucket
1232 mm
Overall Length With Bucket
2997 mm
Overall Length - Less Bucket
2248 mm
Overall Height To Top Of ROPS
1784 mm
Clearance Radius - Front With Bucket
1829 mm
Height To Hinge Pin – Fully Raised
2731 mm
Overall Operating Height - Fully Raised
3607 mm
performances
Travel Speed (unladen)
8.26 km/h
wheels
Standard Tires
27x8.5x15 HD
engine
Engine Norm
Stage V, Tier 4 final
Engine Brand
Yanmar
Engine Model
3TNV88C-KMS
Power Source
Diesel
Starter (kW)
2.30 kW
Battery Voltage
12 V
Gross Power (kW)
34.20 Hp
Max. Torque / Engine Rotation
109.40 Nm / 1820 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
55 l/min
tank capacities
Fuel Tank
43.18 l
Displacement
1.64 l
Hydraulic Tank Capacity
30.30 l
noise and vibration
Environmental Noise (LwA)
101 dB
Vibration To Whole Hand/arm
< 1.70 m/s²
Whole-Body Vibration (ISO 2631-1)
1.12 m/s²
technical features
Name Link
DOWNLOAD TECHNICAL SHEET Download
