ID # 17936349

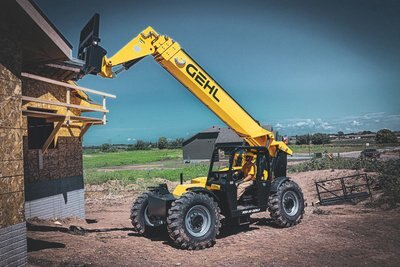

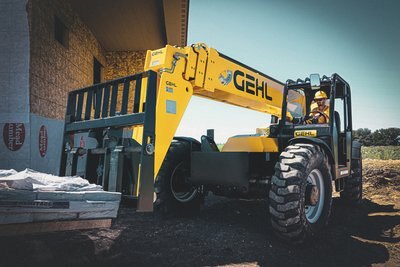

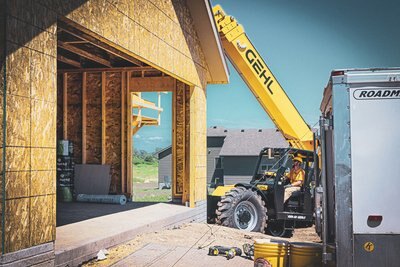

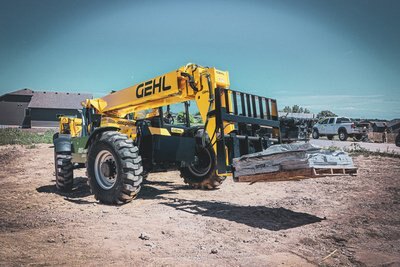

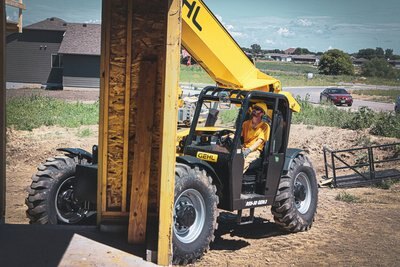

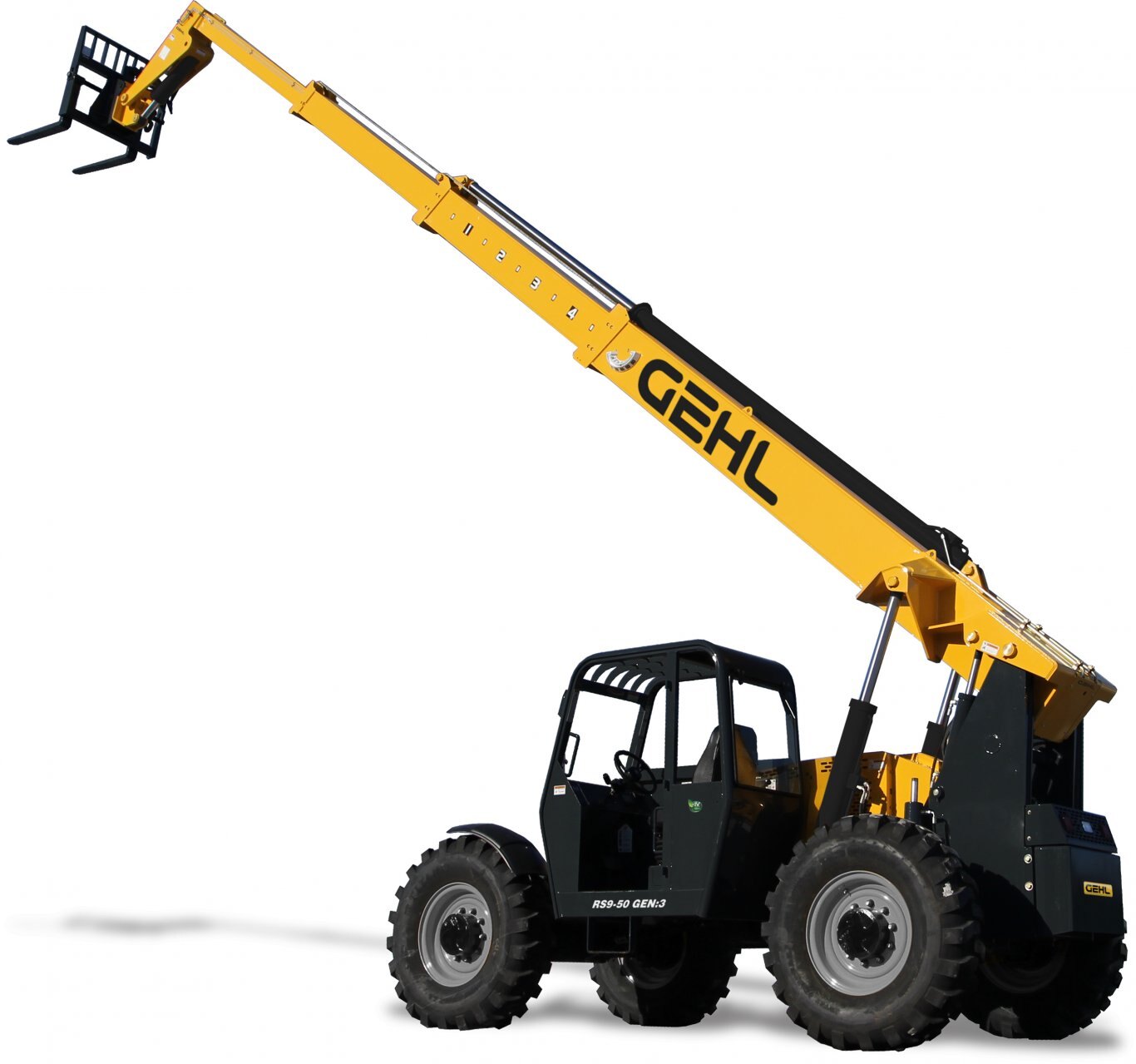

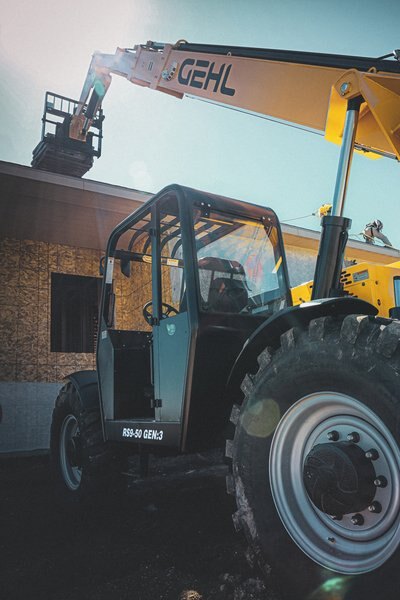

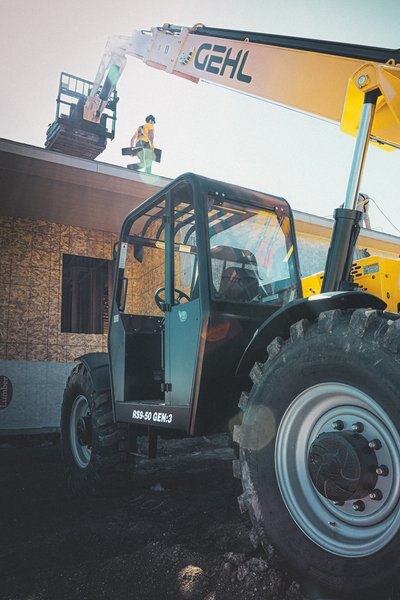

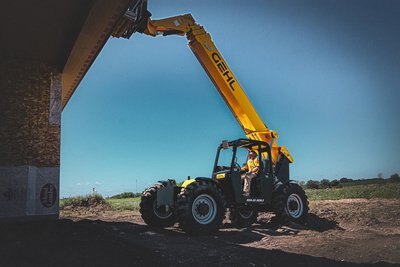

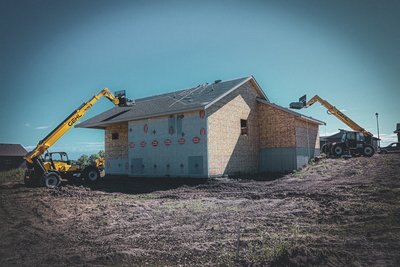

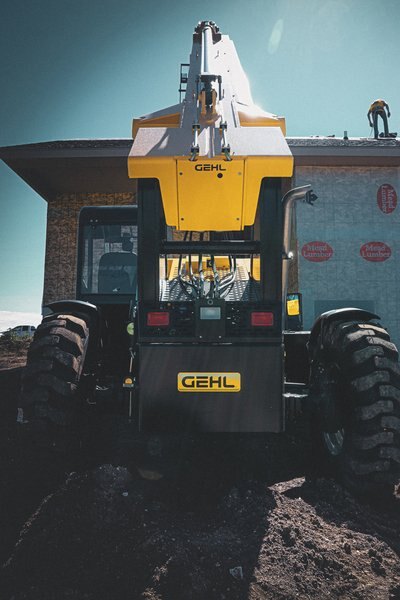

Gehl - Construction Telehandlers RS9-50 GEN:3

  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
  • Gehl Construction Telehandlers RS9 50 GEN:3
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  RS9-50 GEN:3
Construction Telehandlers

The RS9-50 has all the great features of the RS-Series combined with an industry leading 50 foot lift without the need for front stabilizers. Increase your material placement efficiency with this 9,000 lbs. pick and carry machine that takes 5,000 lbs to 50 feet.

Specifications
Model
Construction Telehandlers RS9-50 GEN:3
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Max. Reach
36 ft 7 in
Max. Capacity
9001 lbs
Max. Lifting Height
50 ft 2 in
I.C. Engine Power Rating
120 Hp
capacities
Max. Reach
36 ft 6.97 in
Max. Capacity
9001.47 lbs
Max. Lifting Height
50 ft 2.36 in
weight and dimensions
Wheelbase
10 ft 4.01 in
Overall Width
8 ft 3.60 in
Overall Height
8 ft 6.36 in
Standard Tyres
14 x 24
Ground Clearance
1 ft 5.99 in
Overall Cab Width
27 ft 5.92 in
External Turning Radius
13 ft 10.92 in
Overall Length To Carriage
20 ft 11.96 in
Unladen Weight (with Forks)
29901.29 lbs
Frame Levelling Longitudinal +/-
10 °
engine
Engine Norm
Stage IV / Tier 4 Final
Engine Brand
Cummins
Engine Model
QSF 3.8
Max. Torque / Engine Rotation
488 Nm @ 2500 rpm
I.C. Engine Power Rating - Power (kW)
120 Hp / 89 kW
hydraulics
Hydraulic Pump Type
Gear pump
Hydraulic Flow / Pressure
157 l/min / 3002.27 PSI
tank capacities
Fuel Tank
47.02 US gal
Hydraulic Oil
30.90 US gal
transmission
Parking Brake
SAHR
Service Brake
Wet disc brakes
Axle Manufacturer
Dana
Max. Travel Speed
19.32 mph
Transmission Type
Torque Converter with powershift
Number Of Gears (forward / Reverse)
4 / 3
miscellaneous
Controls
Single Joystick FNR
Safety Cab Homologation
ROPS/FOPS
Drive Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 2
