ID # 17935901

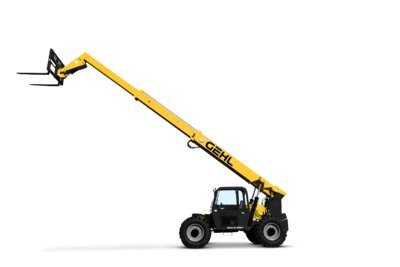

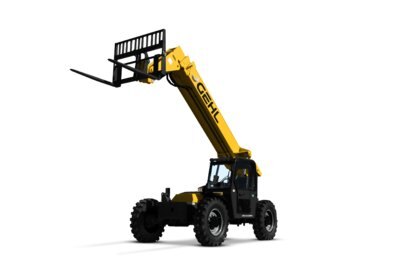

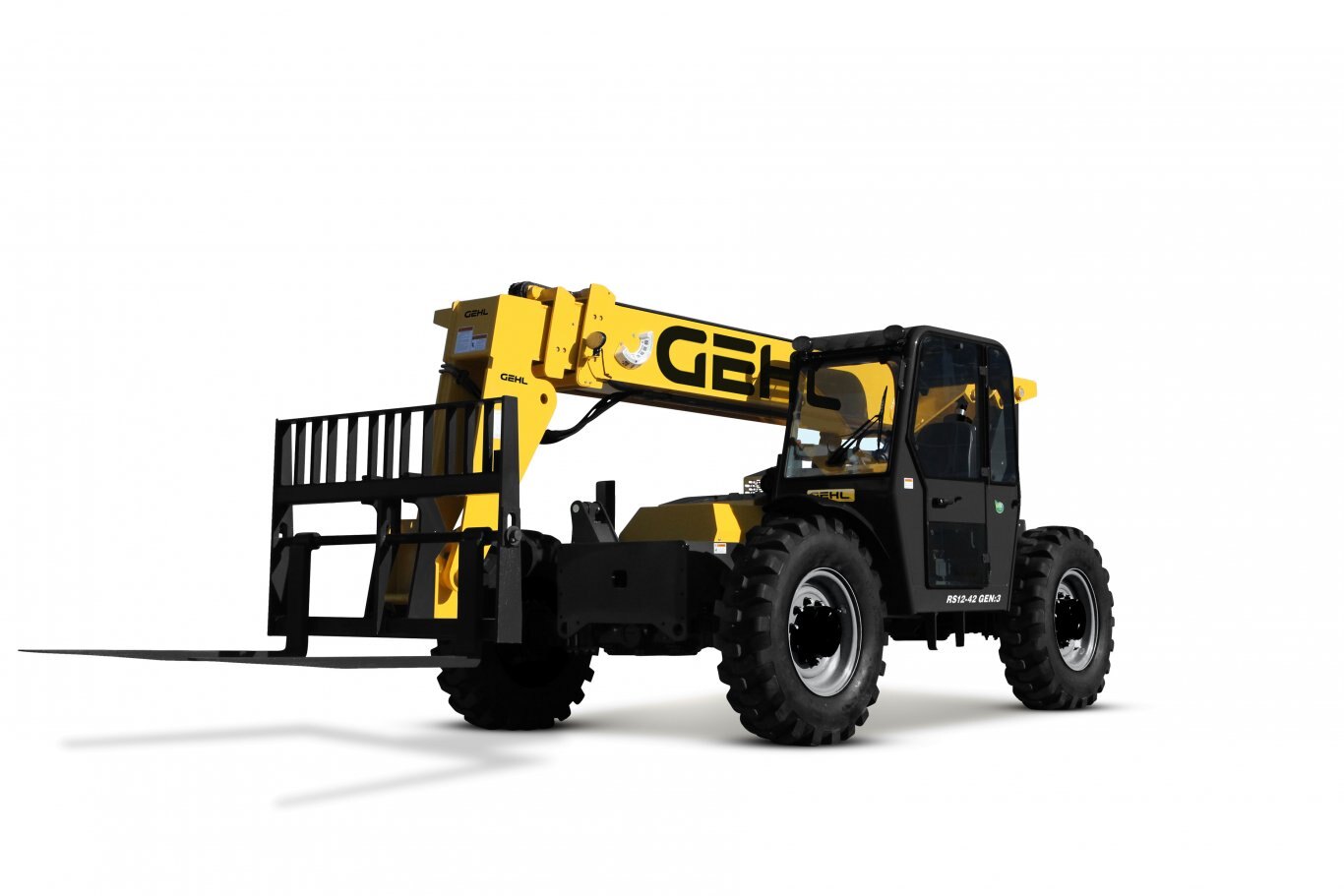

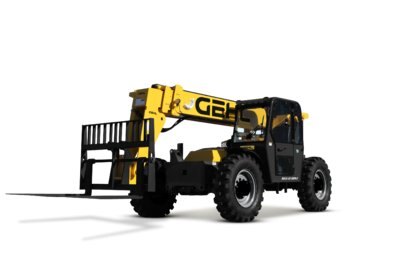

Gehl - Construction Telehandlers RS 12-42 Gen: 3

  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
  • Gehl Construction Telehandlers RS 12 42 Gen: 3
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  RS 12-42 Gen: 3
Construction Telehandlers

This Rental Series master has a 42' reach and 12,000lb lifting capactiy, getting you where you need to go on the jobsite. Take a break from getting your hands dirty and let the machine do the work for you. Undeniable visibilty, unbeatable lift capacity and the necessary strength and power to get your toughest job done, with ease.
Specifications
Model
Construction Telehandlers RS 12-42 Gen: 3
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Max. Reach
27 ft 11 in
Max. Capacity
12000 lbs
Max. Lifting Height
42 ft 4 in
I.C. Engine Power Rating
120 Hp
capacities
Max. Reach
27 ft 11.03 in
Max. Capacity
12000.02 lbs
Max. Lifting Height
42 ft 3.87 in
weight and dimensions
Wheelbase
10 ft 4.01 in
Overall Width
8 ft 2.81 in
Tilt-up Angle
12 °
Overall Height
7 ft 10.88 in
Standard Tyres
14X24
Tilt-down Angle
112 °
Ground Clearance
1 ft 6 in
Overall Cab Width
2 ft 8.99 in
External Turning Radius
13 ft 10.92 in
Overall Length To Carriage
19 ft 3.10 in
Unladen Weight (with Forks)
25201.04 lbs
Frame Levelling Longitudinal +/-
10 °
engine
Engine Norm
Tier IV Final
Engine Brand
Cummins
Engine Model
QSF 3.8
Max. Torque / Engine Rotation
488 Nm @ 2500 rpm
I.C. Engine Power Rating - Power (kW)
120 Hp / 89 kW
Number Of Cylinders / Capacity Of Cylinders
4 - 0.23 in³
hydraulics
Hydraulic Pump Type
Gear pump
Hydraulic Flow / Pressure
157.09 l/min / 3002.27 PSI
tank capacities
Fuel Tank
46.99 US gal
Engine Oil
3.88 US gal
Hydraulic Oil
44.90 US gal
DEF Tank Capacity
5.01 US gal
transmission
Parking Brake
SAHR
Service Brake
Wet disc brakes
Axle Manufacturer
Dana
Transmission Type
Torque Converter with powershift
Number Of Gears (forward / Reverse)
4 / 3
miscellaneous
Controls
Single Joystick FNR
Safety Cab Homologation
ROPS/FOPS
Drive Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 2
performances
Dump
3 s
Crowd
6 s
Lifting
15 s
Lowering
10 s
Extension
14 s
Retraction
10 s
