ID # 17935887

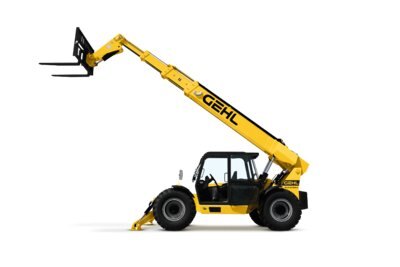

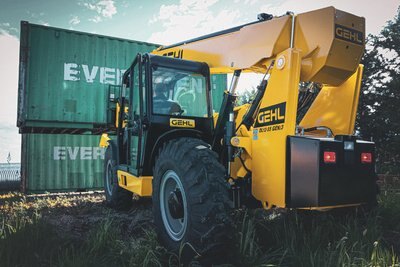

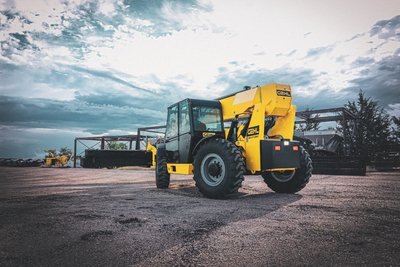

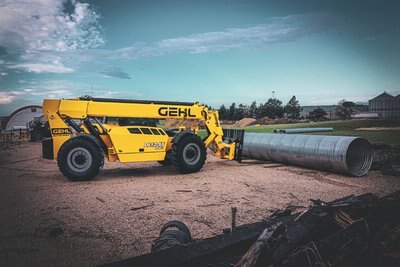

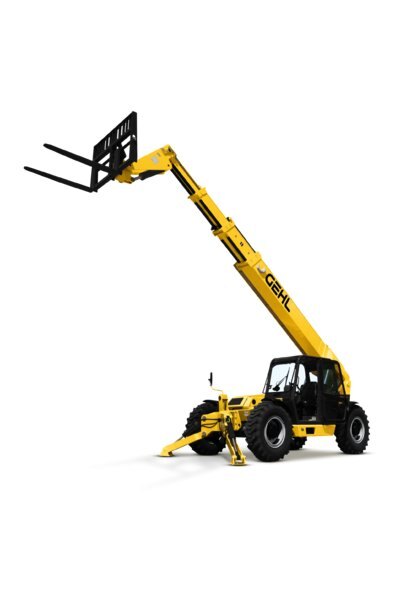

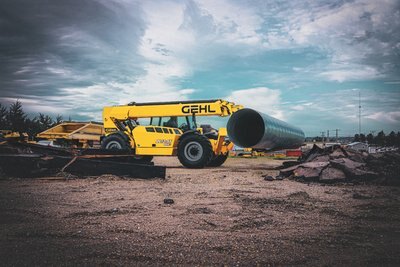

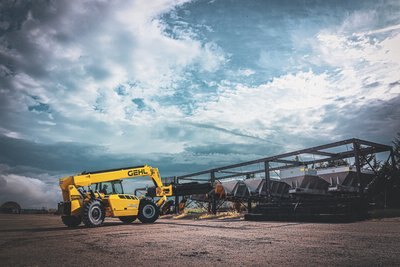

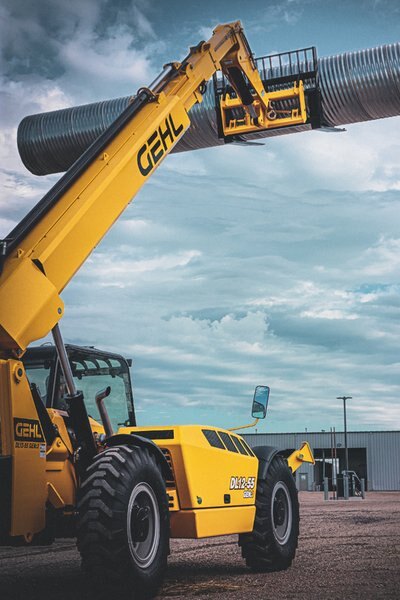

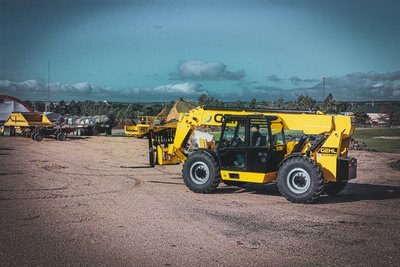

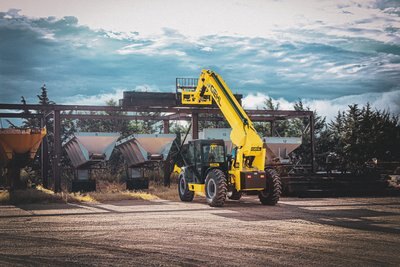

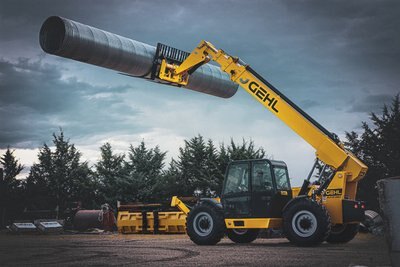

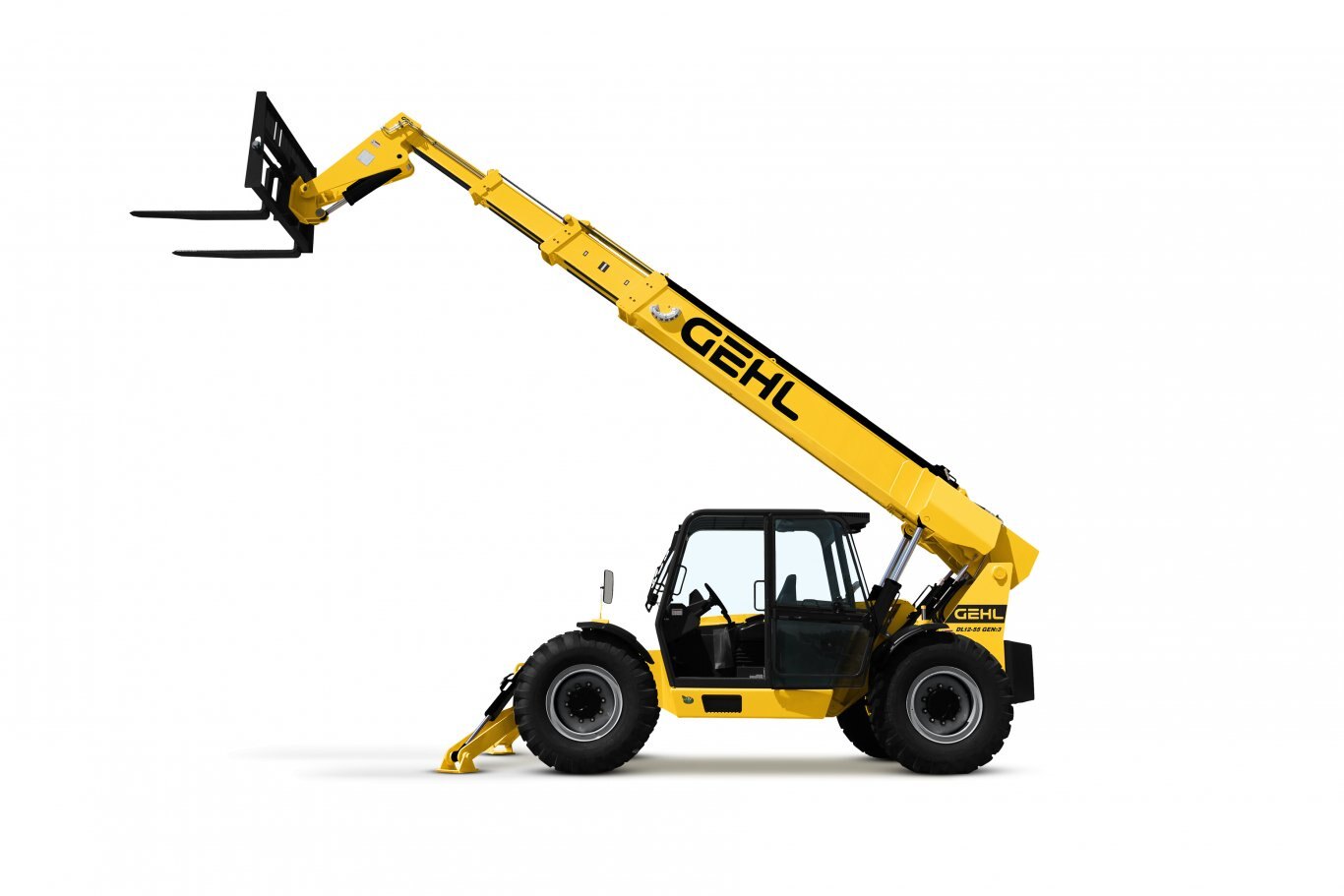

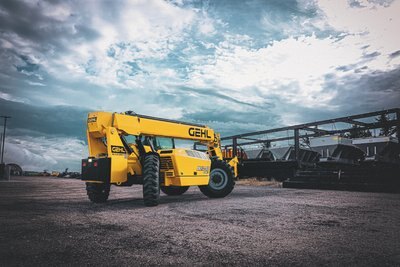

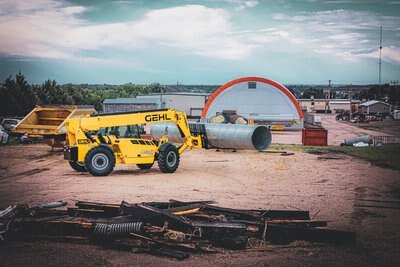

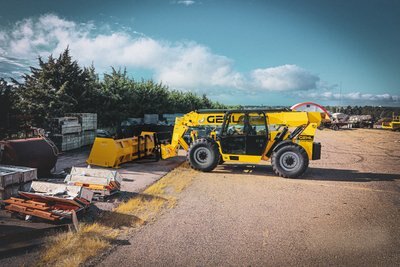

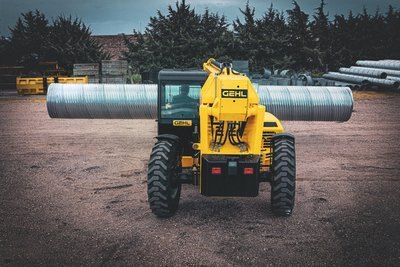

Gehl - Construction Telehandlers DL12-55 GEN:3

  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
  • Gehl Construction Telehandlers DL12 55 GEN:3
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  DL12-55 GEN:3
Construction Telehandlers

Move heavy loads on any jobsite with this proven performer. Sturdy, durable and packed with power, the DL12-55 is ready to meet the needs on the toughest jobsite. With an industry-leading turn radius of 12' 2", regardless of size, you can manuever with ease. Increase your productivity and get the gritty job done, because this machine Works Like You.

Specifications
Model
Construction Telehandlers DL12-55 GEN:3
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Max. Reach
40 ft
Max. Capacity
12002 lbs
Max. Lifting Height
55 ft 5 in
I.C. Engine Power Rating
120 Hp
capacities
Max. Reach
40 ft 0.31 in
Max. Capacity
12001.96 lbs
Max. Lifting Height
55 ft 5.35 in
weight and dimensions
Wheelbase
10 ft 9.92 in
Overall Width
8 ft 2.42 in
Overall Height
8 ft 6.36 in
Standard Tyres
14X24
Unladen Weight
31841.36 lbs
Ground Clearance
1 ft 3.98 in
Overall Cab Width
8 ft 2.42 in
External Turning Radius
2 ft 10.64 in
Overall Length To Carriage
20 ft 8.03 in
Frame Levelling Longitudinal +/-
10 °
engine
Engine Norm
Tier IV Final
Engine Brand
Cummins
Engine Model
QSF 3.8 Tier IV
Engine Rotation
2500 rpm
I.C. Engine Power Rating - Power (kW)
120 Hp / 89 kW
hydraulics
Hydraulic Pump Type
Gear pump
Hydraulic Flow / Pressure
162.80 l/min / 3002.27 PSI
tank capacities
Fuel Tank
30.11 US gal
Hydraulic Oil
40.94 US gal
transmission
Parking Brake
SAHR
Service Brake
Wet disc brakes
Axle Manufacturer
Dana
Max. Travel Speed
22.80 mph
Transmission Type
Powershift
Number Of Gears (forward / Reverse)
4 / 4
miscellaneous
Controls
Single Joystick FNR
Safety Cab Homologation
ROPS/FOPS
Drive Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 2
