ID # 17934700

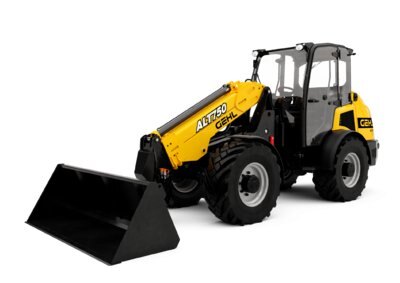

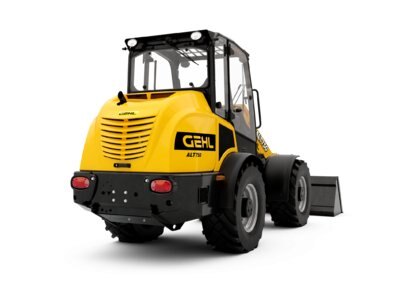

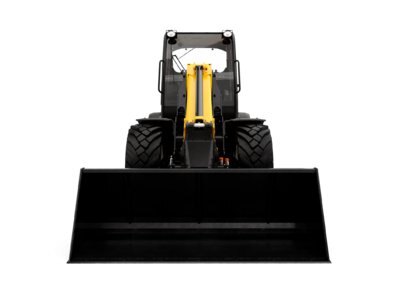

Gehl - Articulated loaders ALT750

  • Gehl Articulated loaders ALT750
  • Gehl Articulated loaders ALT750
  • Gehl Articulated loaders ALT750
  • Gehl Articulated loaders ALT750
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  ALT750
Articulated loaders

Love your GEHL AL750 but need that extra reach to get the job done? The ALT750 pushes your lift to new boundaries with its telescopic boom on an already agile chassis. The hydrostatic transmission gives you smooth, reliable power to get the job done. True 360° visibility allows GEHL to stay true to what's most important - keeping you safe. Stay comfortable all day long in a fully adjustable operator station that helps you work hard, all day long.
Specifications
Model
Articulated loaders ALT750
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
capacities
Max. Outreach
10 ft 9.92 in
Breakout Force With Bucket
4990 daN
Max. Height Of Bucket Pivot Point
16 ft 6.03 in
Max. Lifting Height (below Forks)
15 ft 10.55 in
Static Tipping Load With Bucket (straight)
7713.97 lbs
Static Tipping Load With Bucket (full Turn)
4012.41 lbs
Max. Payload With Forks As Per EN 474-3 (80%)
3527.39 lbs
weight and dimensions
Standard Tyres
405/70-20
Ground Clearance
1 ft 0.20 in
Overall Cab Width
4 ft 2.39 in
Articulation Angle
40 °
Overall Width (over Tyres)
6 ft 5.16 in
Overall Height With 4 Posts Canopy
8 ft 1.63 in
External Turning Radius (over Tyres)
13 ft 2.66 in
Overall Length To Carriage (without Hitch)
18 ft 9.59 in
Unladen Weight (with Forks) With 4-post Canopy
12299.58 lbs
engine
Engine Brand
Deutz
Engine Model
TD3.6 L4
Number Of Cylinders
4
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
330 Nm / 2300 rpm
I.C. Engine Power Rating / Power (kW)
74.30 Hp / 55 kW
hydraulics
Hydraulic Pump Type
Gear pump
High-Flow Option (l/min)
110 l/min
Drive Hydraulic System Pressure
5511.43 PSI
tank capacities
Fuel Tank
30.37 US gal
Hydraulic Oil
19.46 US gal
transmission
Parking Brake
Manual
Differential Lock
Machine Lock Rear & front
Transmission Type
Hydrostatic
Travel Speed (laden)
12.42 mph
Number Of Gears (forward / Reverse)
2 / 2
Max. Travel Speed (may Vary According To Applicable Regulations)
18.64 mph
miscellaneous
Safety Cab Homologation
ROPS - FOPS cab (level 1)
noise and vibration
Vibration To Whole Hand/arm
< 2.50 m/s²
