ID # 17934693

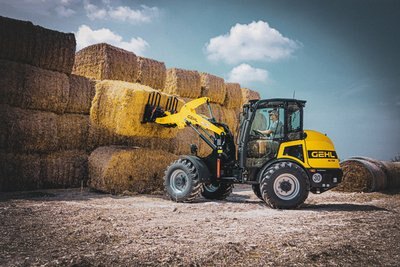

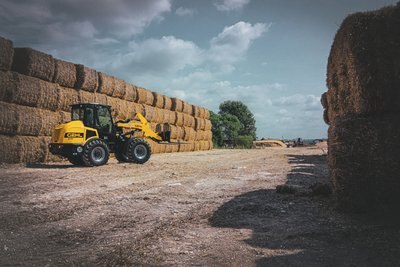

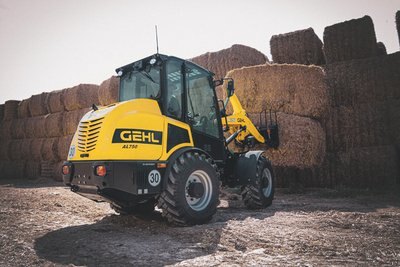

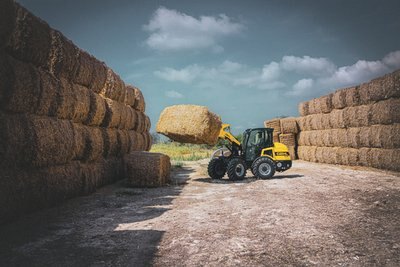

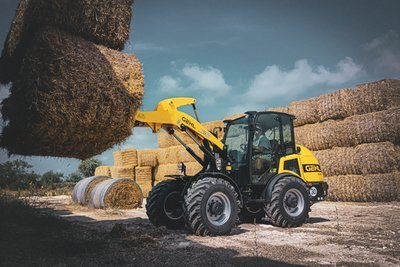

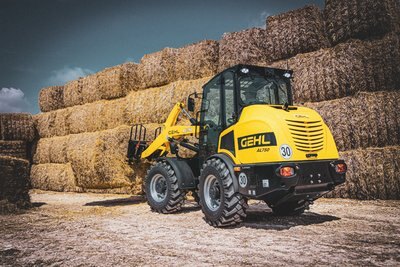

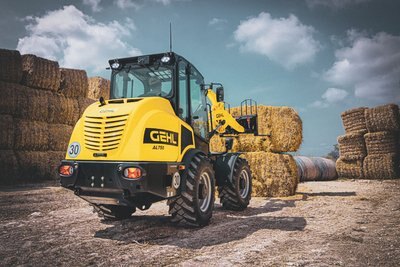

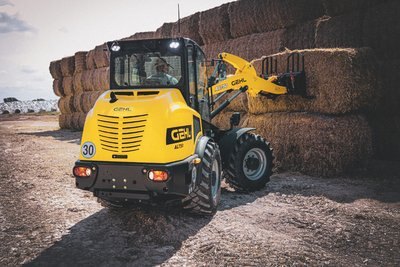

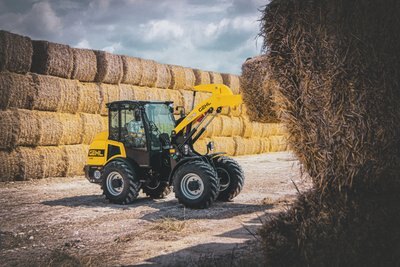

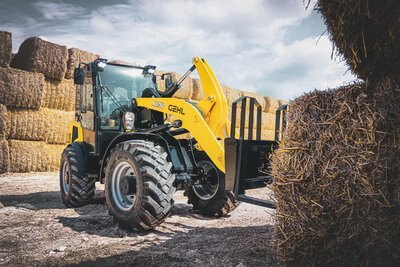

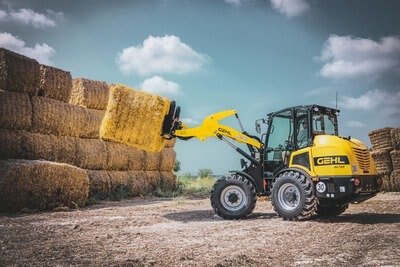

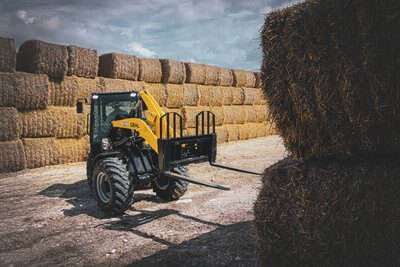

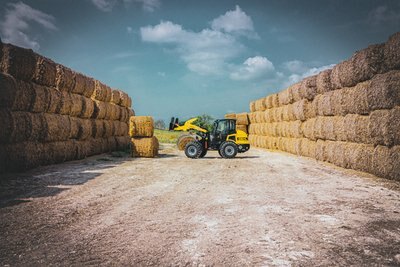

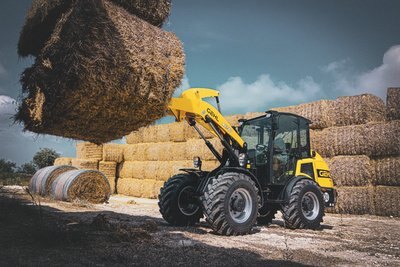

Gehl - Articulated loaders AL750

  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
  • Gehl Articulated loaders AL750
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  AL750
Articulated loaders

Largest Articulated Loader in the GEHL lineup with a standard lift arm, this mighty machine will fight through the work day as hard as you. With a hydrostatic transmission and Z-Kinematic lift arm, you'll bring the extra break-out force and power to the jobsite. Great for agricultural or construction sites, this beast will keep you moving toward a job well done in half the time.
Specifications
Model
Articulated loaders AL750
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
capacities
Breakout Force With Bucket
5906 daN
Max. Height Of Bucket Pivot Point
11 ft 4.61 in
Max. Lifting Height (below Forks)
10 ft 9.13 in
Static Tipping Load With Bucket - Straight With Cab
7907.98 lbs
Static Tipping Load With Bucket - Full Turn With Cab
6126.64 lbs
Static Tipping Load With Pallet Forks - Straight With Cab
6353.72 lbs
Static Tipping Load With Bucket - Straight With 4-post Canopy
7447.21 lbs
Static Tipping Load With Pallet Forks - Straight With 4-post Canopy
6042.87 lbs
Static Tipping Load With Pallet Forks - Full Turn With 4-post Canopy
4792.84 lbs
weight and dimensions
Wheelbase
6 ft 9.10 in
Tilt-up Angle
45 °
Tilt-down Angle
45 °
Ground Clearance
1 ft 0.20 in
Overall Cab Width
4 ft 9.08 in
Articulation Angle
45 °
Overall Height With Cab
8 ft 1.63 in
Overall Width (over Tyres)
5 ft 8.50 in
Unladen Weight (with Forks)
10919.49 lbs
Overall Width Of 4 Posts Canopy
4 ft 9.08 in
Overall Height With 4 Posts Canopy
8 ft 1.63 in
External Turning Radius (over Tyres)
11 ft 2.25 in
Overall Length To Carriage (without Hitch)
14 ft 6.80 in
Unladen Weight (with Forks) With 4-post Canopy
10540.30 lbs
engine
Engine Brand
Deutz
Engine Model
TD3.6 L4
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
330 Nm / 2300 rpm
I.C. Engine Power Rating / Power (kW)
74.30 Hp / 55 kW
Number Of Cylinders / Capacity Of Cylinders
4 - 219.68 in³
hydraulics
Hydraulic Pump Type
Gear pump
High-Flow Option (l/min)
114.30 l/min
Hydraulic Flow - Pressure
2 radiators water + hydraulic oil
Drive Hydraulic System Pressure
5511.43 PSI
tank capacities
Fuel Tank
26.94 US gal
Hydraulic Oil
19.49 US gal
transmission
Parking Brake
Manual
Differential Lock
Machine Lock Rear & front
Transmission Type
Hydrostatic
Travel Speed (laden)
18.64 mph
Number Of Gears (forward / Reverse)
2 / 2
Max. Travel Speed (may Vary According To Applicable Regulations)
18.64 mph
miscellaneous
Safety Cab Homologation
ROPS - FOPS cab (level 1)
noise and vibration
Vibration To Whole Hand/arm
< 2.50 m/s²
