ID # 17934613

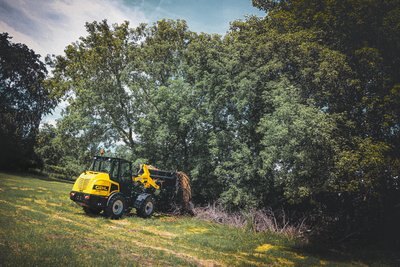

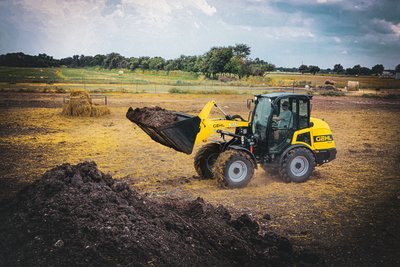

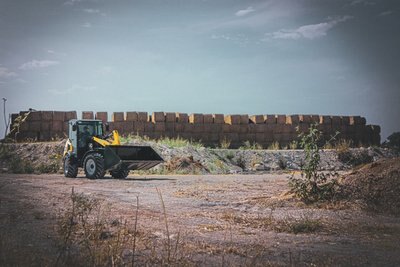

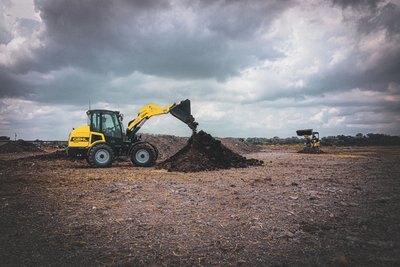

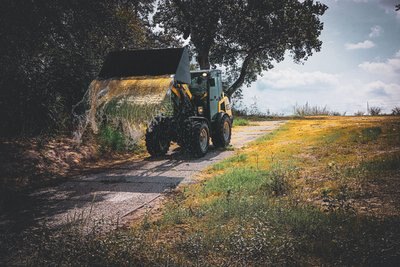

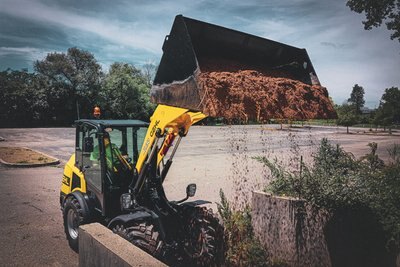

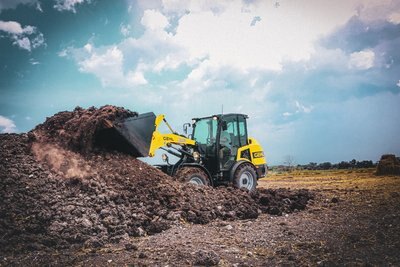

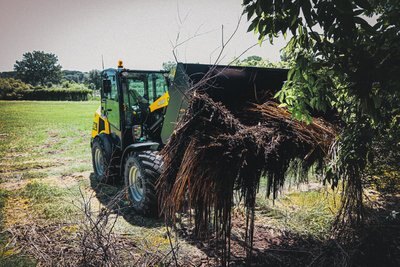

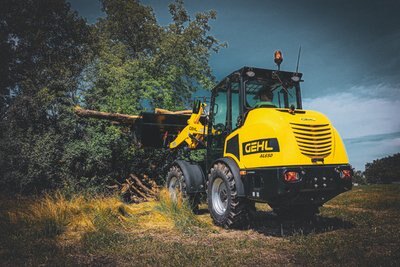

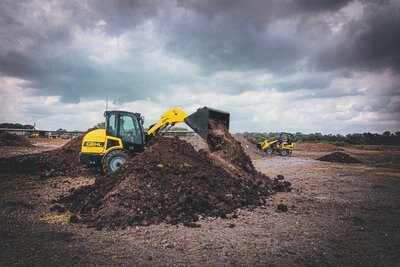

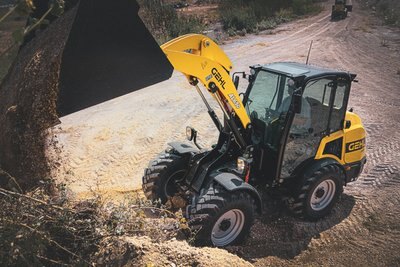

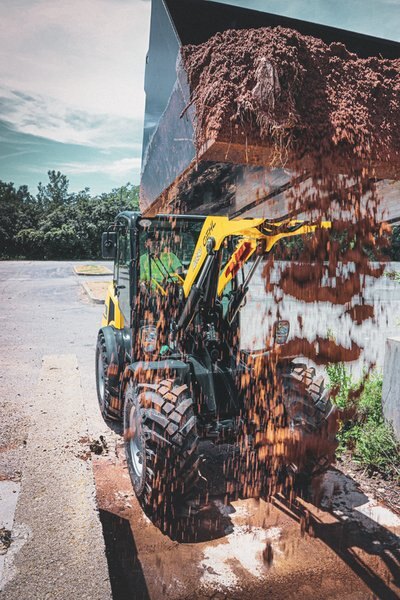

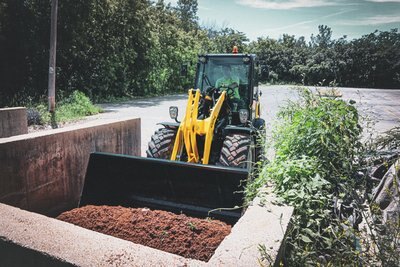

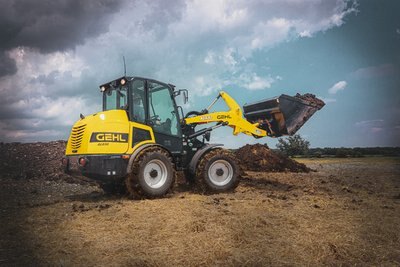

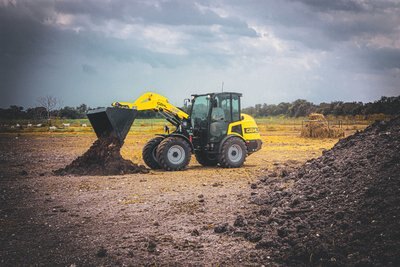

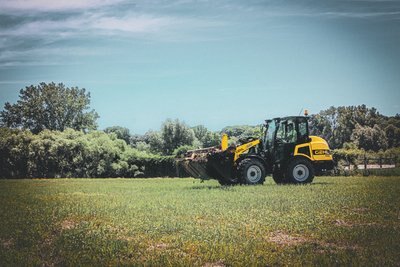

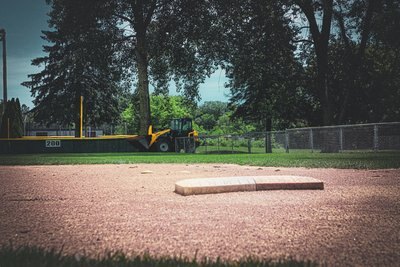

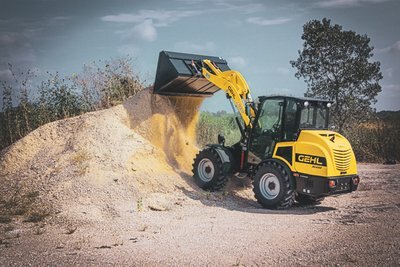

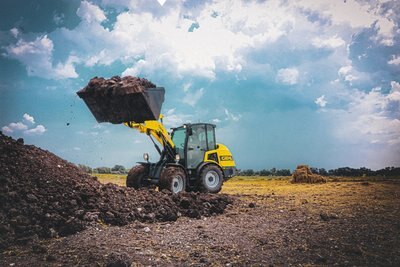

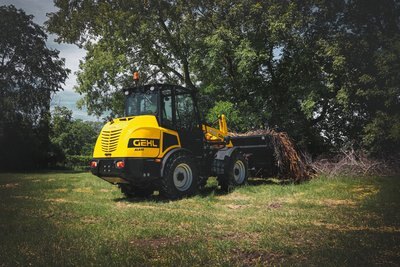

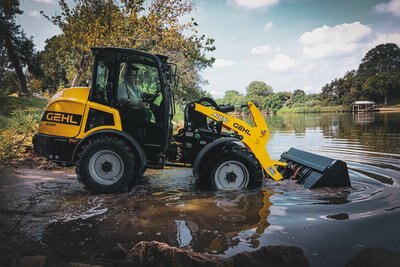

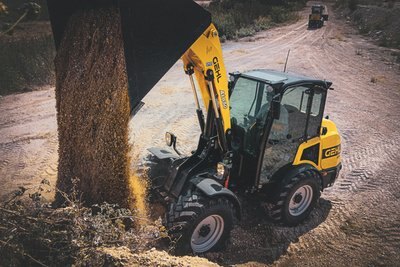

Gehl - Articulated loaders AL650

  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
  • Gehl Articulated loaders AL650
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  AL650
Articulated loaders

A reliable machine to work like you, the AL650 combines reduced dimensions with true power. Slip in and out of that manure pile with ease, in even the tightest spaces. All controls are centralized around the joystick and on the floating armrest. With full 360° visibility, an adjustable workspace and ergonomic controls, this comfort allows you to work as hard as you do, sun up to sun down.
Specifications
Model
Articulated loaders AL650
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
I.C. Engine Power Rating
64.4 Hp
Max. Height Of Bucket Pivot Point
10 ft 11 in
Overall Height With 4 Posts Canopy
8 ft 1 in
Overall Length To Carriage (without Hitch)
14 ft
capacities
Breakout Force With Bucket
5743 daN
Max. Height Of Bucket Pivot Point
10 ft 10.70 in
Max. Lifting Height (below Forks)
10 ft 3.22 in
Static Tipping Load With Bucket - Straight With Cab
6743.94 lbs
Static Tipping Load With Bucket - Full Turn With Cab
5244.79 lbs
Static Tipping Load With Pallet Forks - Straight With Cab
5302.11 lbs
Static Tipping Load With Bucket - Straight With 4-post Canopy
6408.83 lbs
Static Tipping Load With Bucket - Full Turn With 4-post Canopy
4916.30 lbs
Static Tipping Load With Pallet Forks - Straight With 4-post Canopy
4980.24 lbs
Static Tipping Load With Pallet Forks - Full Turn With 4-post Canopy
3919.81 lbs
weight and dimensions
Wheelbase
6 ft 7.01 in
Tilt-up Angle
45 °
Tilt-down Angle
45 °
Ground Clearance
1 ft 2.56 in
Overall Cab Width
4 ft 5.93 in
Articulation Angle
45 °
Overall Height With Cab
8 ft 1.24 in
Overall Width (over Tyres)
5 ft 4.96 in
Unladen Weight (with Forks)
9499.71 lbs
Overall Width Of 4 Posts Canopy
4 ft 5.93 in
Overall Height With 4 Posts Canopy
8 ft 1.24 in
External Turning Radius (over Tyres)
10 ft 10.31 in
Overall Length To Carriage (with Hitch)
13 ft 11.71 in
Unladen Weight (with Forks) With 4-post Canopy
9149.18 lbs
engine
Engine Brand
Yanmar
Engine Model
4TNV98CT
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
280 Nm / 2300 rpm
I.C. Engine Power Rating / Power (kW)
64.40 Hp / 48 kW
Number Of Cylinders / Capacity Of Cylinders
4 - 201.37 in³
hydraulics
Hydraulic Pump Type
Gear pump
High-Flow Option (l/min)
97 l/min
Hydraulic Flow - Pressure
69.50 l/min / 2900.75 PSI
Drive Hydraulic System Pressure
6091.58 PSI
tank capacities
Fuel Tank
25.09 US gal
Hydraulic Oil
19.49 US gal
transmission
Parking Brake
Manual
Differential Lock
Machine Lock Rear & front
Transmission Type
Hydrostatic
Travel Speed (laden)
18.64 mph
Number Of Gears (forward / Reverse)
2 / 2
Max. Travel Speed (may Vary According To Applicable Regulations)
18.64 mph
miscellaneous
Safety Cab Homologation
ROPS - FOPS cab (level 1)
noise and vibration
Vibration To Whole Hand/arm
< 2.50 m/s²
