ID # 17934594

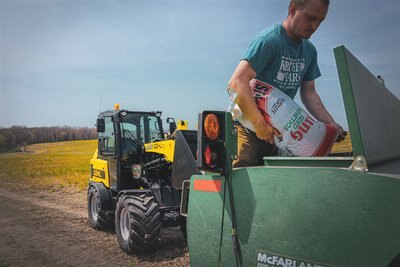

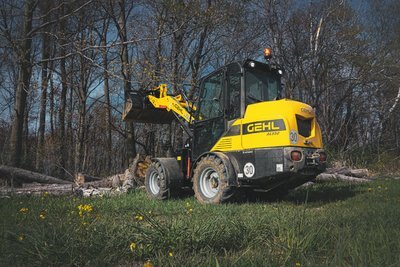

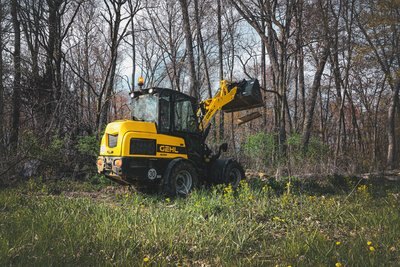

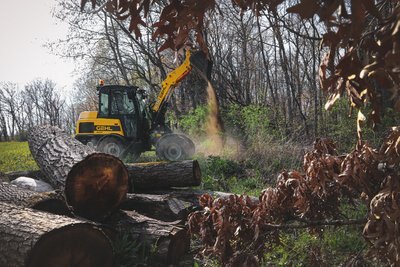

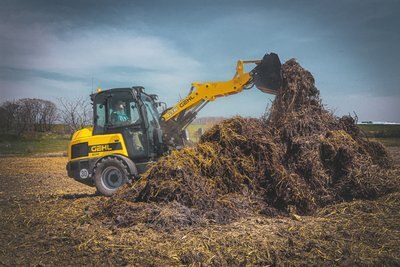

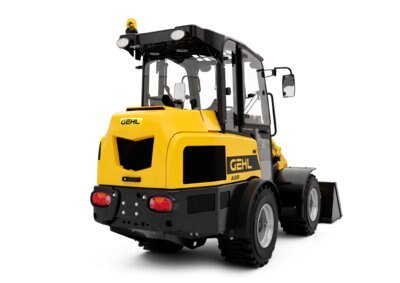

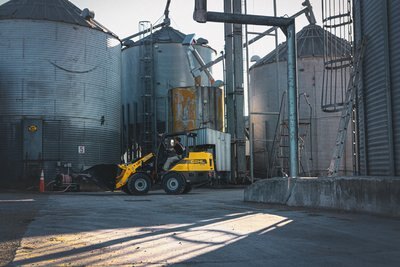

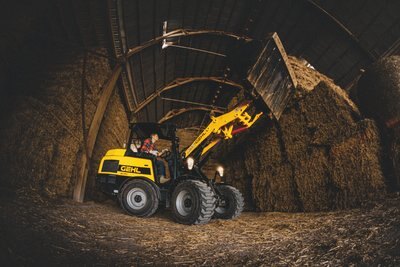

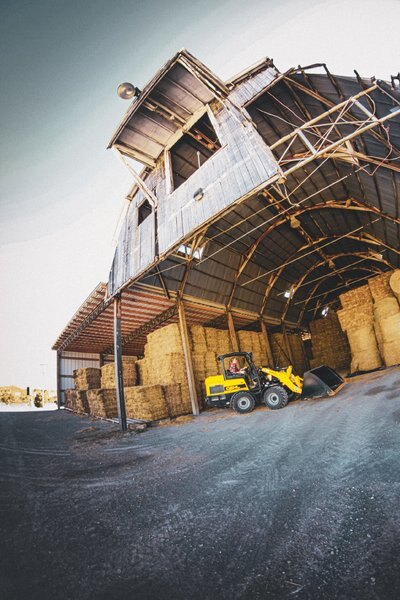

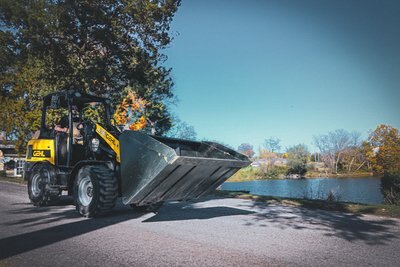

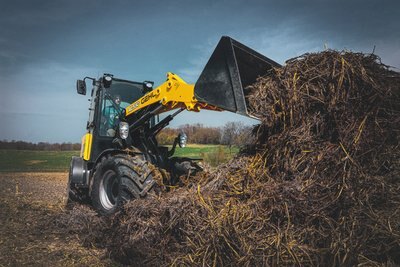

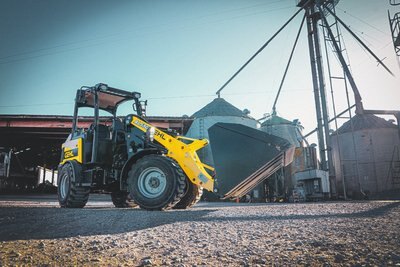

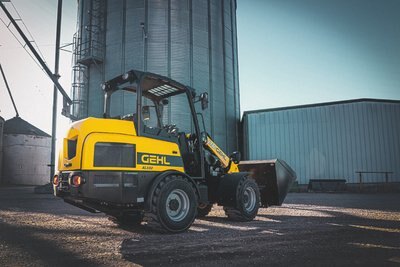

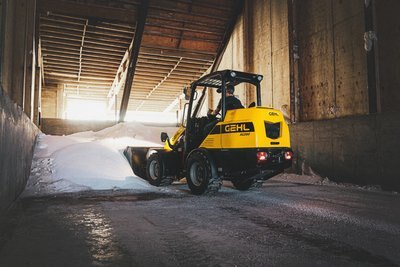

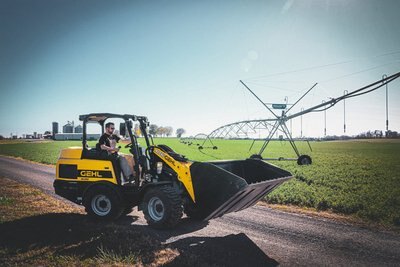

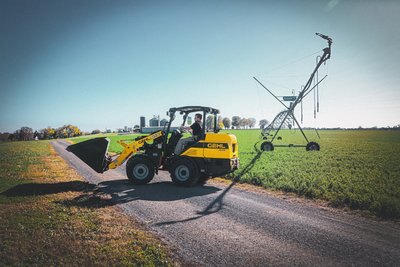

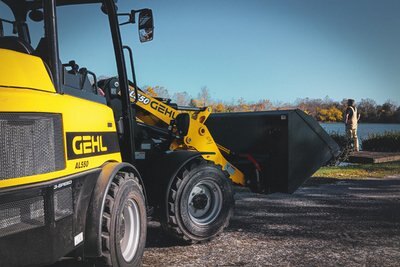

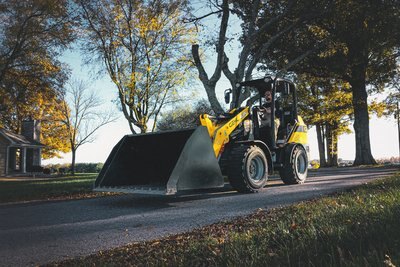

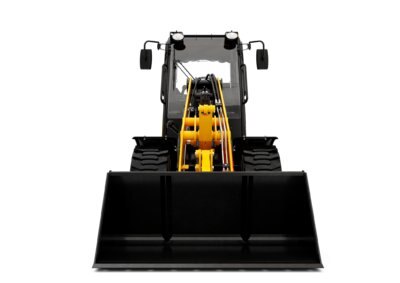

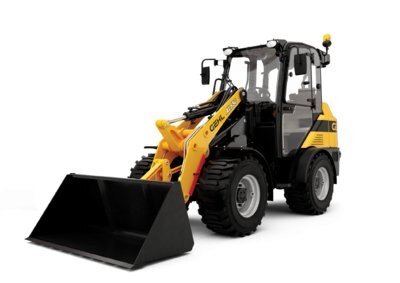

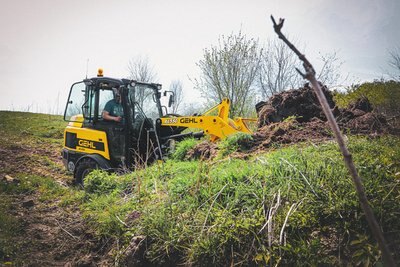

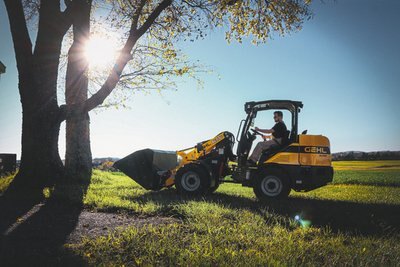

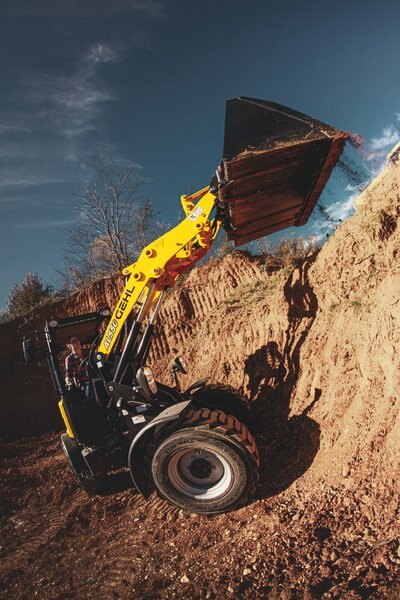

Gehl - Articulated loaders AL550

  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
  • Gehl Articulated loaders AL550
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  AL550
Articulated loaders

The AL550 is the smallest of our lineup to have our Z-kinematic loaderarm, giving you unmatched break-out forces. This beast comes with an open canopy with

Specifications
Model
Articulated loaders AL550
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
I.C. Engine Power Rating
60 Hp
Max. Height Of Bucket Pivot Point
10 ft 4 in
Static Tipping Load With Forks (straight)
3411 lbs
Static Tipping Load With Bucket (straight)
4828 lbs
capacities
Reach At Max. Height
1 ft 4.92 in
Breakout Force With Bucket
4329.46 daN
Max. Height Of Bucket Pivot Point
10 ft 4.40 in
Static Tipping Load With Forks (straight)
3410.55 lbs
Static Tipping Load With Bucket (straight)
4828.12 lbs
Static Tipping Load With Forks (full Turn)
2654.36 lbs
Static Tipping Load With Bucket (full Turn)
3732.42 lbs
Static Tipping Load With Bucket - Straight With Cab
4828.12 lbs
Static Tipping Load With Bucket - Full Turn With Cab
3732.42 lbs
Static Tipping Load With Pallet Forks - Straight With Cab
3410.55 lbs
weight and dimensions
Wheelbase
5 ft 8.66 in
Tilt-up Angle
39.90 °
Tilt-down Angle
44.70 °
Ground Clearance
10.15 in
Overall Cab Width
4 ft 0.34 in
Articulation Angle
45 °
Overall Height With Cab
7 ft 7.06 in
Overall Width (over Tyres)
4 ft 10.22 in
Overall Width Of 4 Posts Canopy
4 ft 0.42 in
Overall Height With 4 Posts Canopy
7 ft 6.94 in
External Turning Radius (over Tyres)
10 ft 6.18 in
Overall Length To Carriage (with Hitch)
13 ft 8.56 in
Unladen Weight (with Forks) With 4-post Canopy
7469.92 lbs
performances
Dump
1.85 s
Crowd
2.52 s
engine
Engine Brand
Deutz
Engine Model
TD 2.2 L3
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
200 Nm / 2400 rpm
I.C. Engine Power Rating / Power (kW)
60 Hp / 45.50 kW
Number Of Cylinders / Capacity Of Cylinders
3 - 20.61 in³
hydraulics
Hydraulic Pump Type
Gear pump
High-Flow Option (l/min)
72.30 l/min
Hydraulic Flow - Pressure
58.30 l/min / 3045.79 PSI
Drive Hydraulic System Pressure
6091.58 PSI
tank capacities
Fuel Tank
21.79 US gal
Hydraulic Oil
11.88 US gal
transmission
Parking Brake
Manual
Differential Lock
Machine Lock Rear & front
Transmission Type
Hydrostatic
Number Of Gears (forward / Reverse)
2 / 2
Max. Travel Speed (may Vary According To Applicable Regulations)
17.59 mph
miscellaneous
Safety Cab Homologation
ROPS - FOPS cab (level 1)
