gehl

ID # 17934386

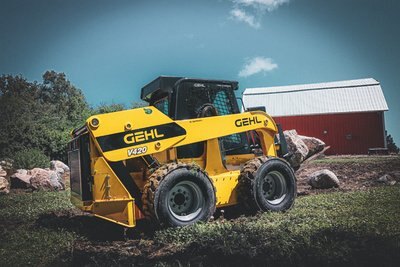

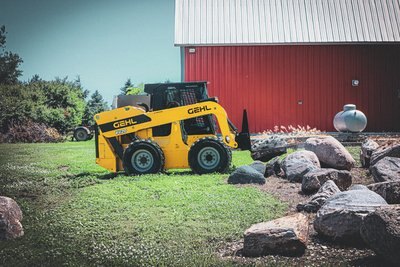

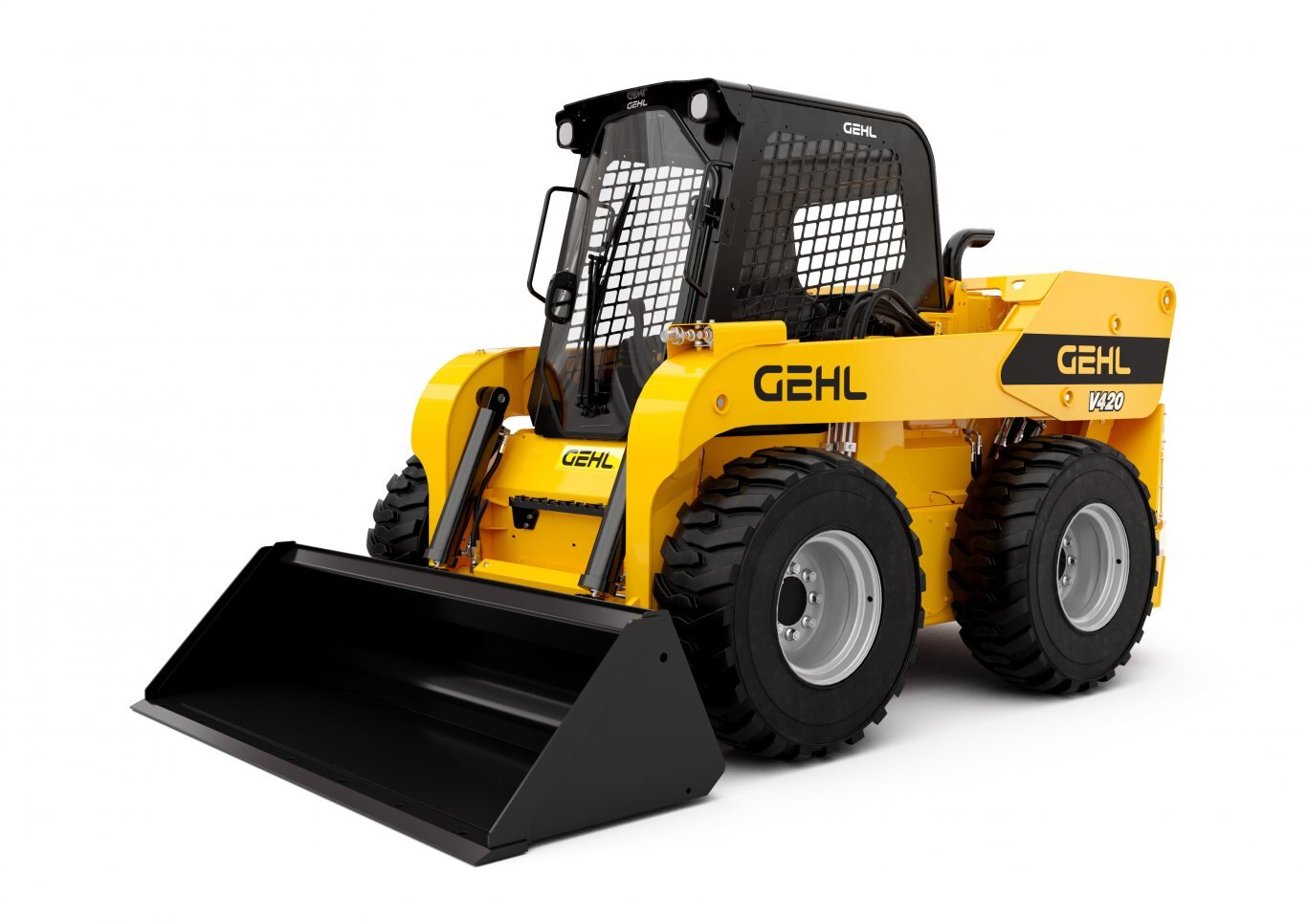

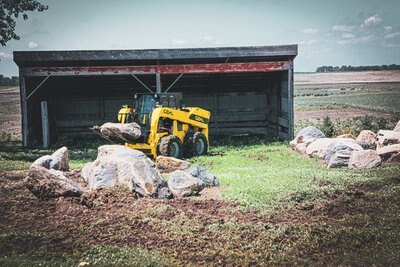

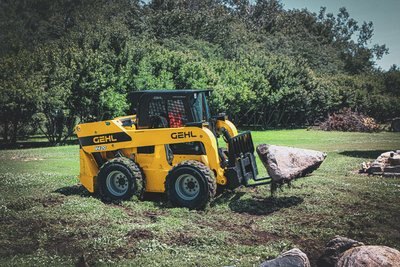

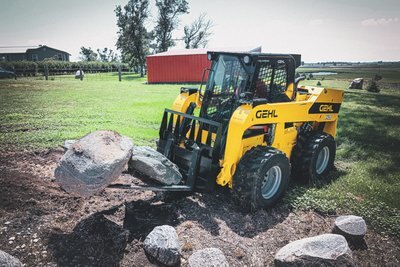

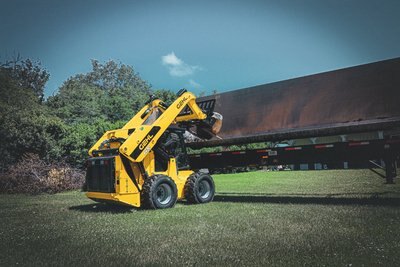

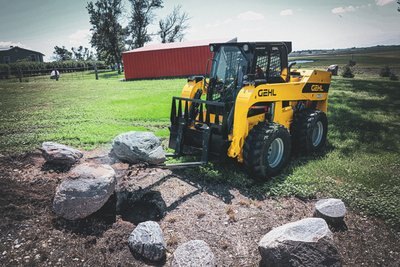

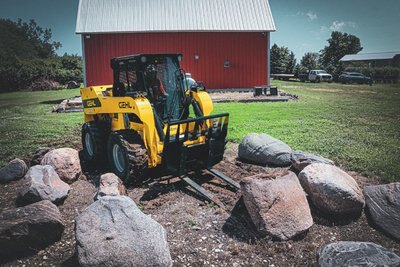

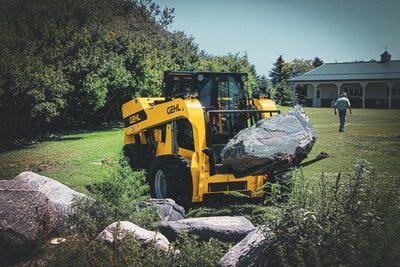

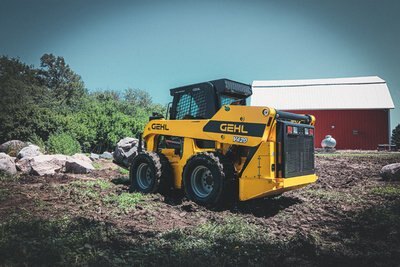

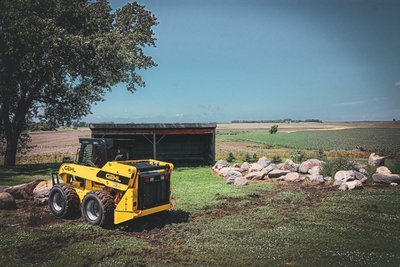

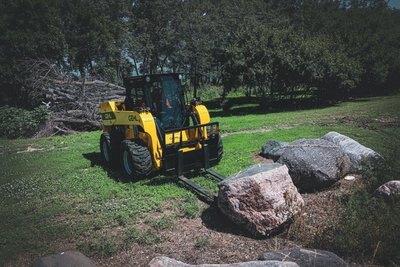

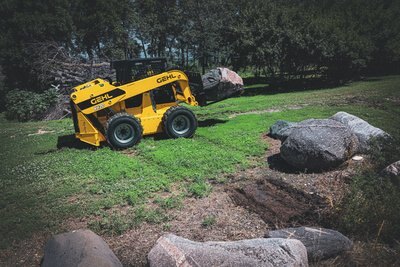

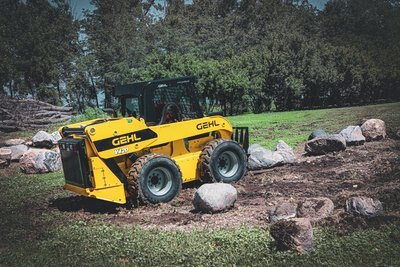

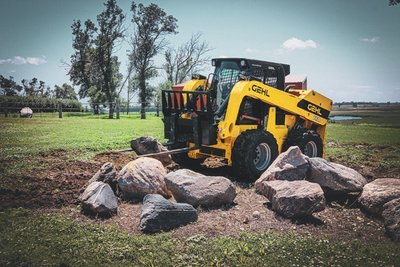

Gehl - Skid Loader V420

Call for Price
Overview

  Skid Loader V420
Compact Loaders

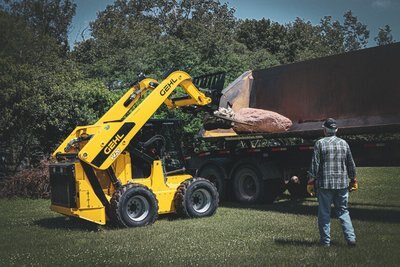

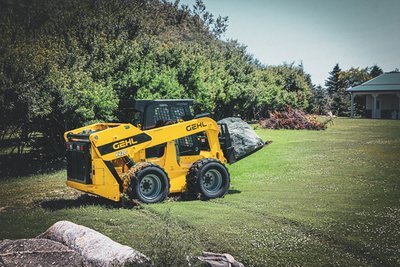

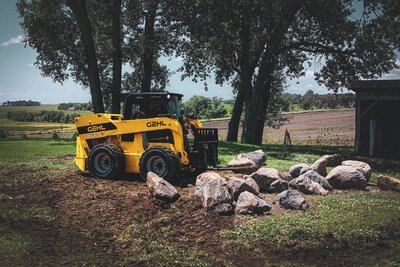

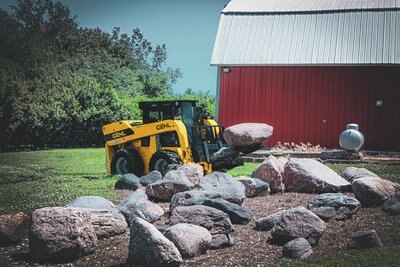

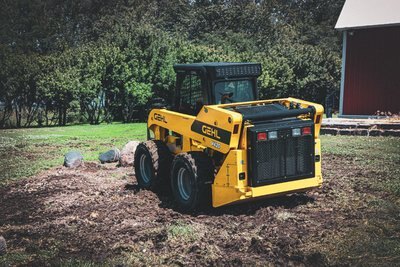

We've come to the monster of them all, the V420. Lift height? Yes. Lift capacity? Oh Yes! True raw power and durability? Like none other and built to impress. 120HP. Yes, you read that right. This loader is in a class of it's own. Anything from flatwork in construction to filling the back of a dump truck, this machine won't let you down. Drive one today at your local dealer and you'll notice the difference when you feel those 120 horses behind you. All while not giving up anything in maneuverability. Specially engineered body type with straight loader arms below the operator's eyesight gives the V420 unmatched visibility. You gotta see drive it to believe it!

Specifications
Model
Skid Loader V420
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
4200 lbs
Dump Reach At Full Height
37.992 in
Overall Length With Bucket
159.016 in
Overall Operating Height - Fully Raised
186.772 in
capacities
Unladen Weight
11664.65 lbs
Rated Operating Capacity
4199.80 lbs
weight and dimensions
Wheelbase
4 ft 6.48 in
Dump Height
9 ft 7 in
Bucket Width
7 ft 0.01 in
Ground Clearance
7.75 in
Rollback At Ground
30 °
Clearance Circle - Rear
6 ft 2.01 in
Dump Angle At Full Height
31 °
Dump Reach At Full Height
3 ft 1.99 in
Overall Width Less Bucket
6 ft 8.98 in
Overall Length With Bucket
13 ft 3.01 in
Overall Length - Less Bucket
10 ft 2.99 in
Overall Height To Top Of ROPS
6 ft 10 in
Clearance Radius - Front With Bucket
8 ft 1.79 in
Height To Hinge Pin – Fully Raised
11 ft 11.81 in
Clearance Circle - Front Without Bucket
4 ft 7.51 in
Overall Operating Height - Fully Raised
15 ft 6.77 in
performances
Travel Speed With Two-Speed Option - Maximum
11.61 mph
engine
Battery
12 V
Engine Norm
Stage IV / Tier 4 Final
Engine Model
TCD 3.6
Starter (kW)
4 kW
Engine Brand
Deutz
Gross Power (kW)
90 kW
Max. Torque / Engine Rotation
480 Nm / 2200 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
114 l/min
High-Flow Auxiliary Hydraulics – Option
155 l/min
noise and vibration
Environmental Noise (LwA)
82.90 dB(A)
Vibration To Whole Hand/arm
< 1.15 m/s²
Whole-Body Vibration (ISO 2631-1)
1.091 m/s²
wheels
Standard Tyres
14.00x17.5 HD
tank capacities
Fuel Tank
38.04 US gal
Displacement
0.95 US gal
Reservoir Capacity Hydraulics
15.79 US gal
