gehl

ID # 17932856

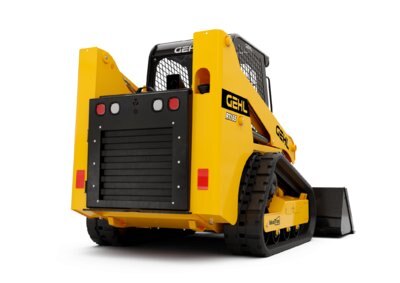

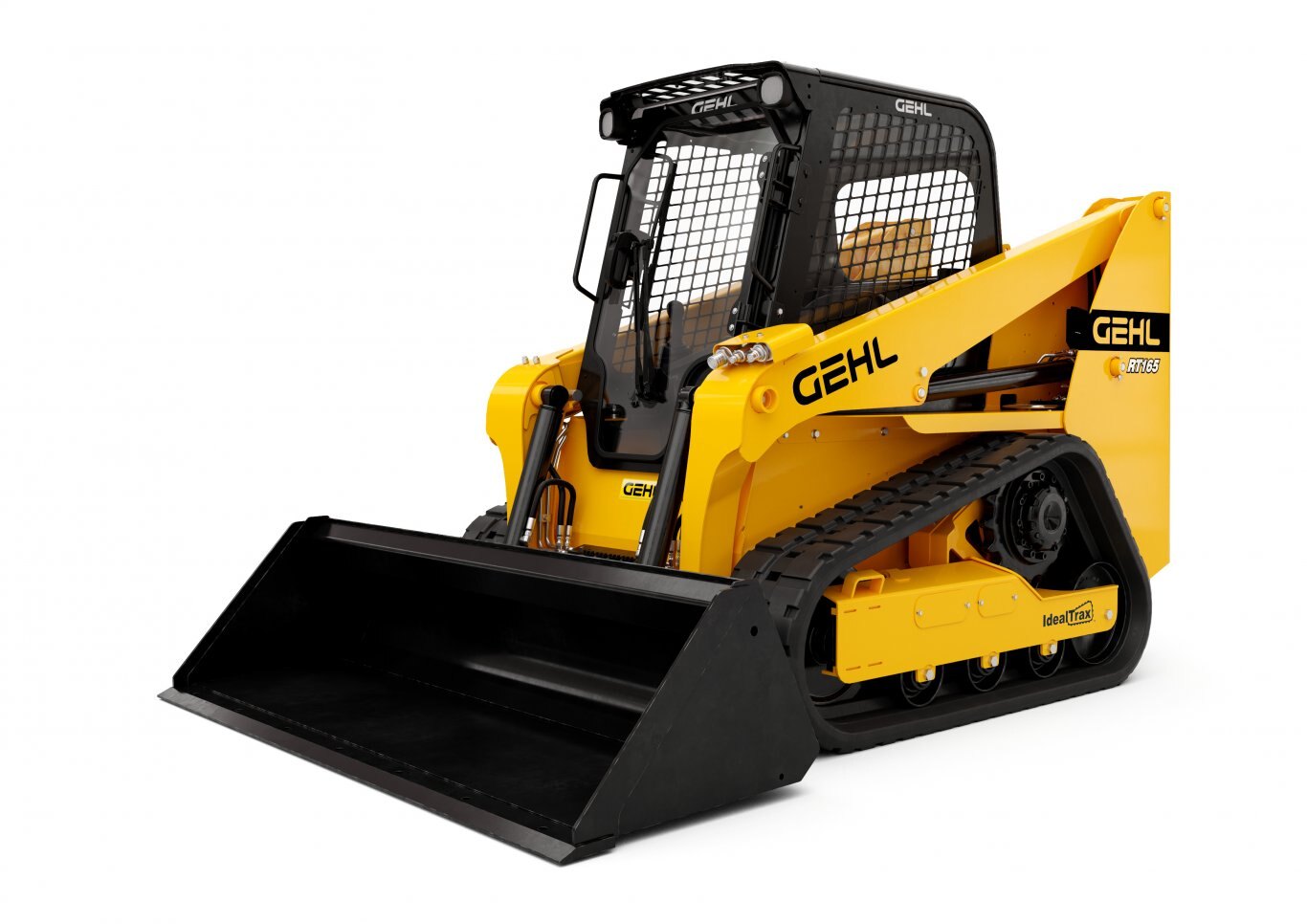

Gehl - Skid Loader RT165

Call for Price
Overview

  Skid Loader RT165
Compact Loaders

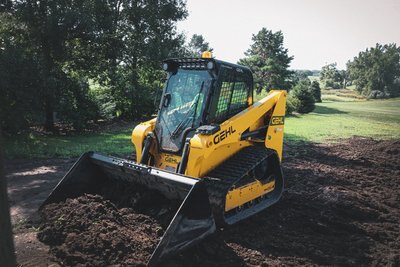

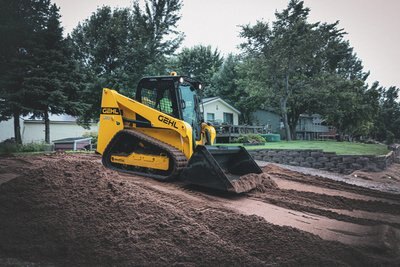

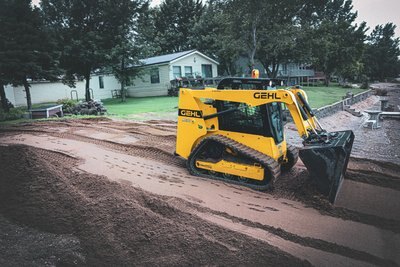

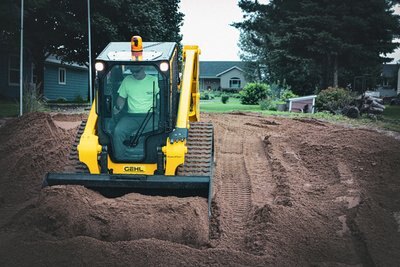

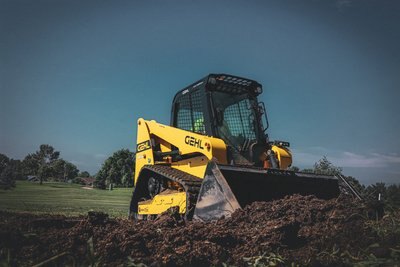

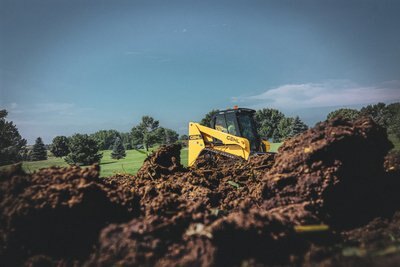

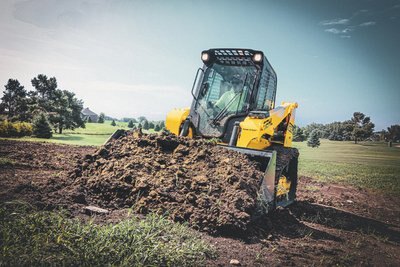

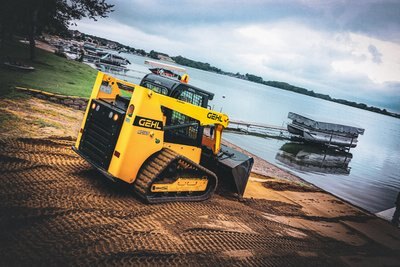

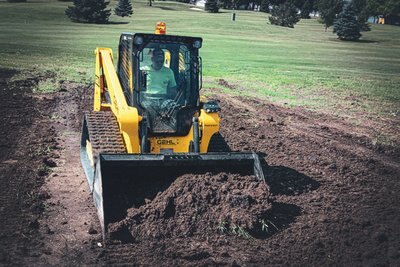

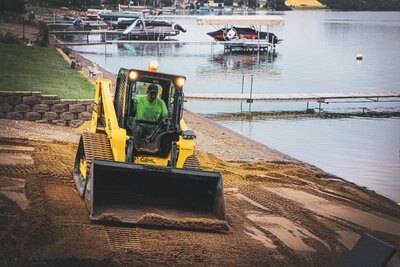

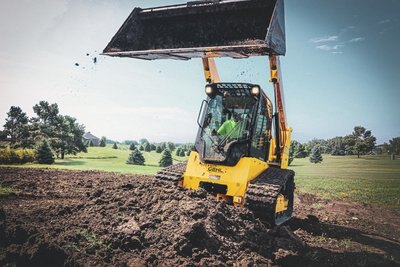

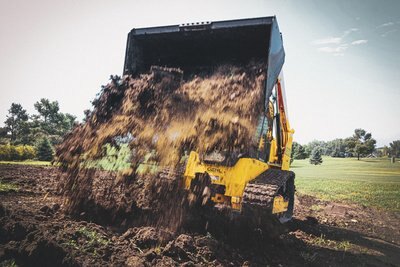

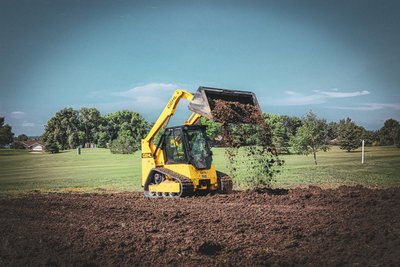

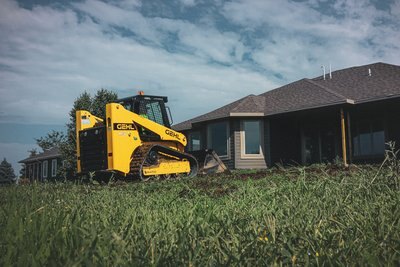

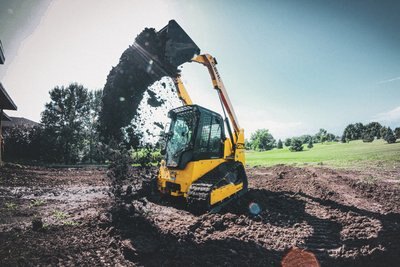

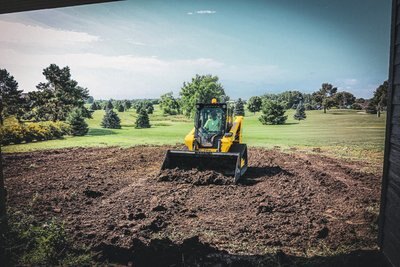

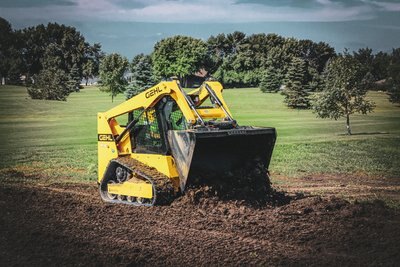

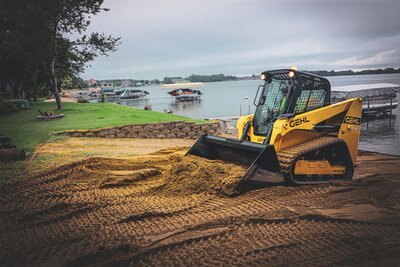

If you're looking for an agile and nimble track loader to tackle tough tasks on your site, the RT165 is your solution. Boasting a 52 kW engine, this compact unit offers an awesome power to weight ratio, increasing operator productivity in challenging applications. For those long days in the seat, the RT165 offers a plethora of options (HVAC, air-ride suspension seat, bluetooth radio) to enhance operator comfort. If you want to get more done in less time, do yourself a favor and look into an RT165. Thank us later.

Specifications
Model
Skid Loader RT165
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Gross Power (kW)
51.7 kW
Overall Width Less Bucket
67.992 in
Overall Length With Bucket
126.181 in
Overall Operating Height - Fully Raised
157.795 in
capacities
Operating Weight
8020.41 lbs
Tipping Capacity
4715.68 lbs
Operating Capacity At 50% Tipping Load
2356.74 lbs
Operating Capacity At 35% Tipping Load
1649.05 lbs
weight and dimensions
Bucket Width
5 ft 5.98 in
Carry Position
7.79 in
Digging Position
2.08 in
Ground Clearance
7.28 in
Specified Height
5 ft 4.48 in
Dump Angle At Full Height
39 °
Overall Width Less Bucket
5 ft 7.99 in
Reach At Specified Height
1 ft 10 in
Dump Height - Fully Raised
7 ft 7.69 in
Overall Length With Bucket
10 ft 6.18 in
Overall Height To Top Of ROPS
6 ft 5.51 in
Overall Length Without Bucket
7 ft 10.21 in
Dump Angle At Specified Height
73 °
Maximum Rollback Angle At Ground
28 °
Clearance Radius - Front With Bucket
6 ft 5.91 in
Height To Hinge Pin – Fully Raised
9 ft 11.60 in
Overall Operating Height - Fully Raised
13 ft 1.79 in
Maximum Rollback Angle At Carry Position
28 °
performances
Ground Speed - Single Speed
6.52 mph
Drawbar Pull/Tractive Effort
9579.08 lbs
Bucket Breakout - Lift Cylinder
5059.60 lbs
Bucket Breakout - Tilt Cylinder
4230.67 lbs
engine
Battery
12 V
Motor Type
Radial Piston
Engine Brand
Yanmar
Engine Model
4TNV98C-NMS2V Stage V
Alternator - Voltage / Ampere
112 V / 100 A
Gross Power (kW) / Gross Power
51.70 kW / 2500 rpm
Cold Cranking Amps At Temperature (CCA)
950 A
hydraulics
Standard Flow - Auxiliary Hydraulics
71 l/min
tank capacities
Fuel Tank
16.51 US gal
Oil Pan Capacity
2.37 US gal
Hydraulic Tank Capacity
10.30 US gal
Displacement / Number Of Cylinders
0.87 US gal / 4
