ID # 17932708

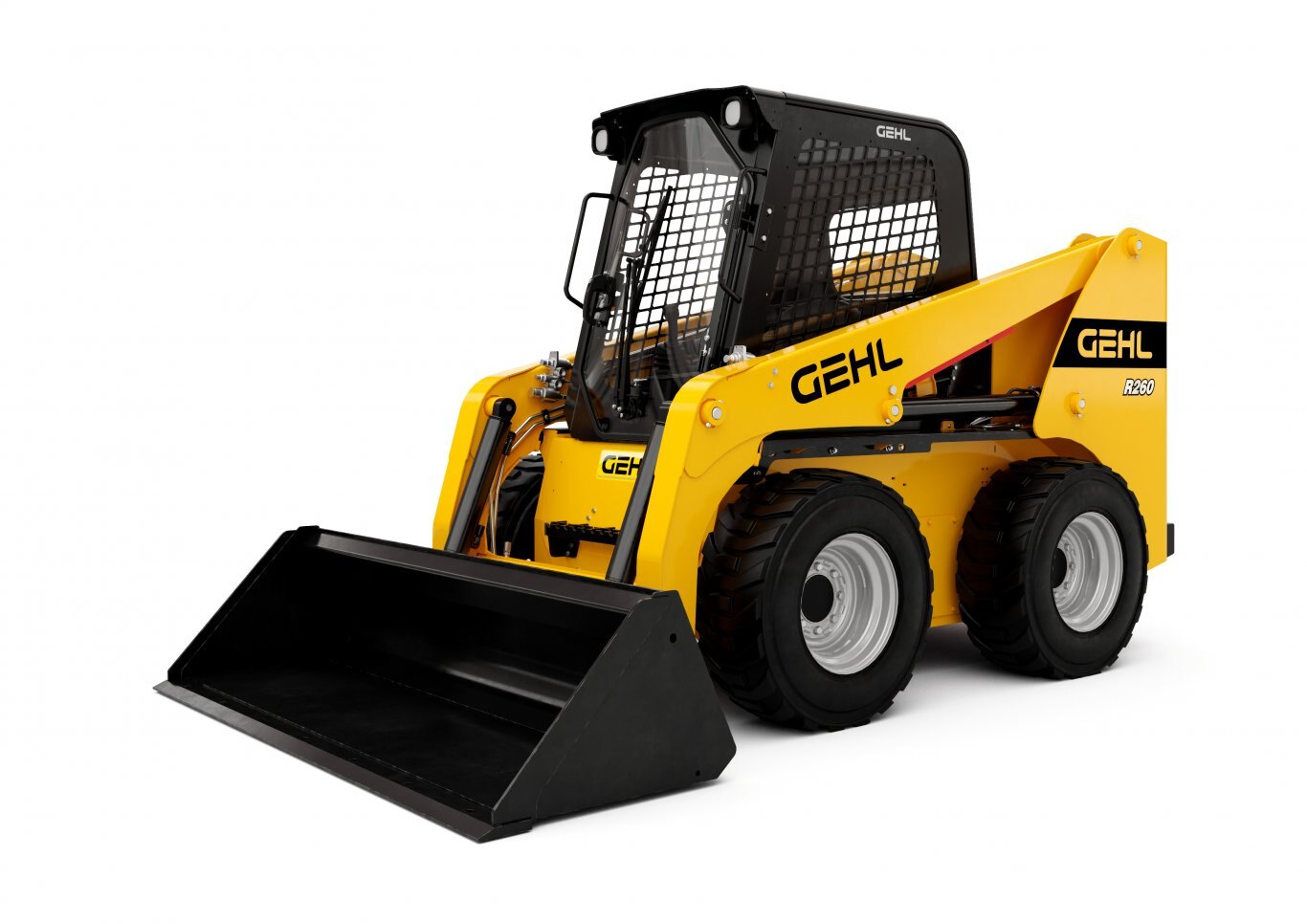

Gehl - Skid Loader R260

  • Gehl Skid Loader R260
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  R260
Compact Loaders

The R260 is largest radial lift skid loader in GEHL's offering, and it doesn't disappoint. With 1,179 kg. of rated operating capacity, it would be hard to find an application tougher than this machine. Various control options give owners the ability to select what is most comfortable to them, making them even more productive throughout a long day.
Specifications
Model
Skid Loader R260
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
2599 lbs
Dump Reach At Full Height
27.008 in
Overall Length With Bucket
142.992 in
Overall Operating Height - Fully Raised
160.984 in
capacities
Fuel Tank
21.50 US gal
Displacement
0.87 US gal
Rated Operating Capacity
2599.25 lbs
Rated Operating Capacity With Optional Counterweight
2780.02 lbs
weight and dimensions
Dump Height
7 ft 10.01 in
Bucket Width
5 ft 10 in
Standard Tyres
12.00x16.5 HD
Ground Clearance
7.99 in
Rear Departure Angle
25 °
Seat To Ground Height
3 ft 4 in
Clearance Circle - Rear
5 ft 4.01 in
Dump Angle At Full Height
40 °
Dump Reach At Full Height
2 ft 3 in
Overall Width Less Bucket
5 ft 7.40 in
Overall Length With Bucket
11 ft 10.99 in
Overall Length - Less Bucket
9 ft 3.49 in
Overall Height To Top Of ROPS
6 ft 8.98 in
Clearance Radius - Front With Bucket
7 ft 6 in
Height To Hinge Pin – Fully Raised
10 ft 2.99 in
Clearance Circle - Front Without Bucket
4 ft 7.98 in
Overall Operating Height - Fully Raised
13 ft 4.98 in
performances
Travel Speed (unladen)
8.01 mph
Travel Speed With Two-Speed Option - Maximum
11.93 mph
engine
Battery
12 V
Engine Model
4TNV98CT-NMSLV Stage V
Starter (kW)
3 kW
Net Power (kW)
52.70 kW
Gross Power (kW)
53.70 kW
Engine Brand / Norm
Yanmar / Stage V
Max. Torque / Engine Rotation
294 Nm at 2500 rpm
hydraulics
Reservoir Capacity Hydraulics
8 US gal
Standard Flow - Auxiliary Hydraulics
90 l/min
High-Flow Auxiliary Hydraulics – Option
132.50 l/min
noise and vibration
Environmental Noise (LwA)
101 dB(A)
Vibration To Whole Hand/arm
1.50 m/s²
Whole-Body Vibration (ISO 2631-1)
.96 m/s²
general information
New
Brand
GEHL
Markets
Agriculture, Construction
Main Visual
/api/media/f/e/6/1/fe6103baaed9e8e077be548a8428246fd9eb4875_260R_AVGFB.png
Product Name
R260
Compact Loader Type
Skid Steer Loaders
Radial Lift Or Vertical Lift
Radial Lift
assortiments
Region
R1
Country Excluded From The Region
Turkey
technical characteristics
Wheelbase
4 ft 1.48 in
media and document
Video Range (Youtube Video Code, Not Playlist Code)
yY9qhnnhEGE
performance loader
Rollback At Ground
28 °
best-seller
This Machine Has A One Or More Best-Seller Versions
