ID # 17931596

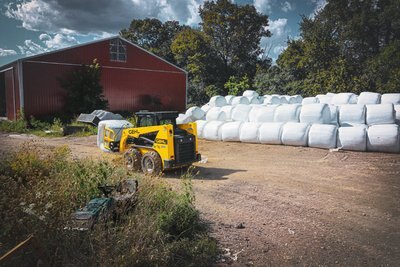

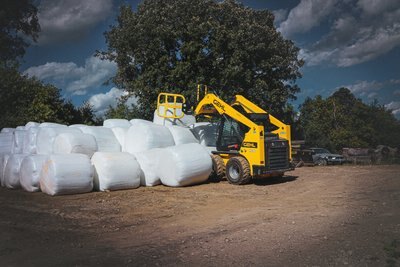

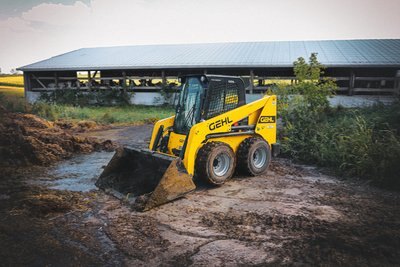

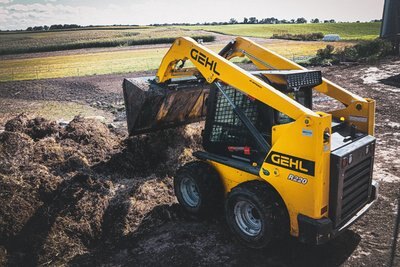

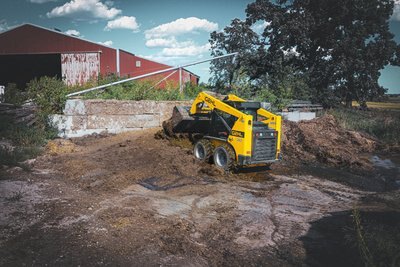

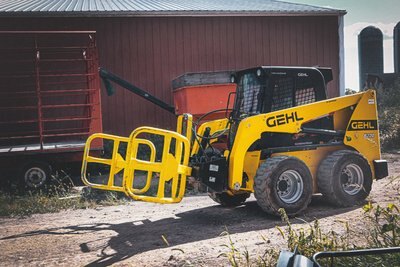

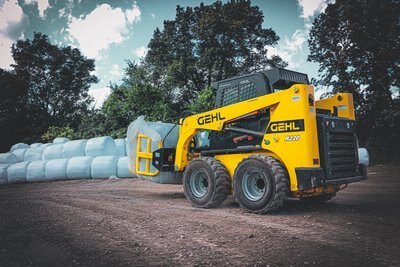

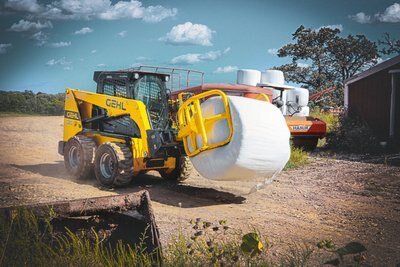

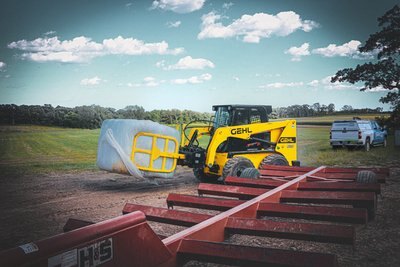

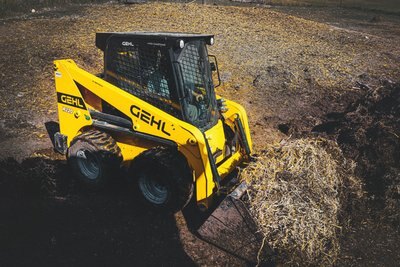

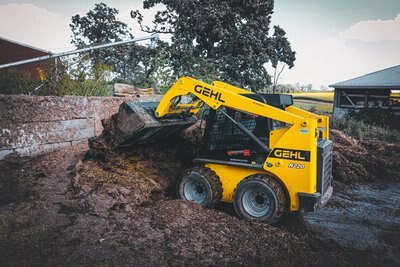

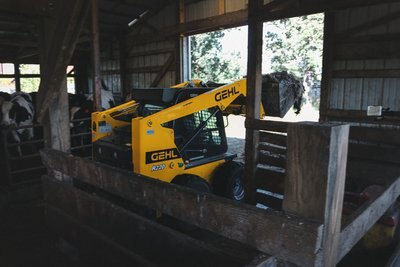

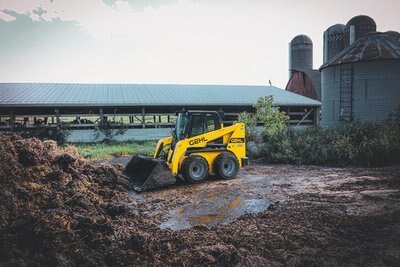

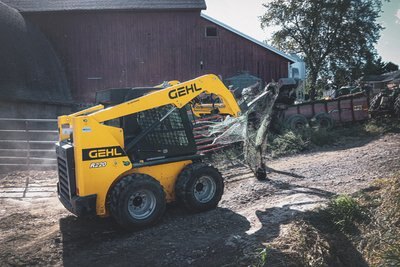

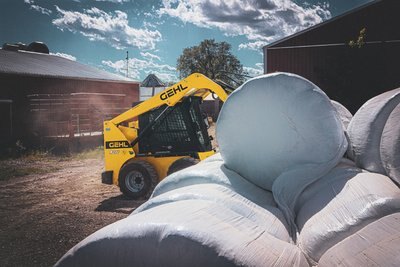

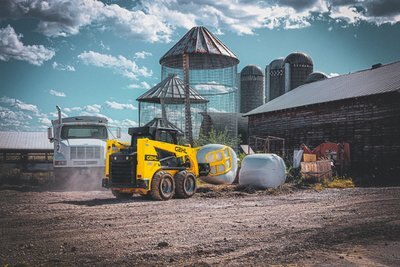

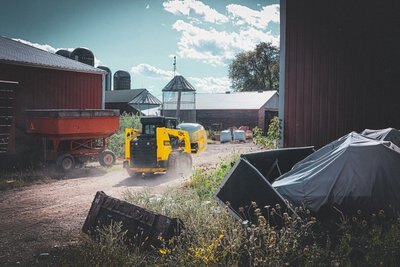

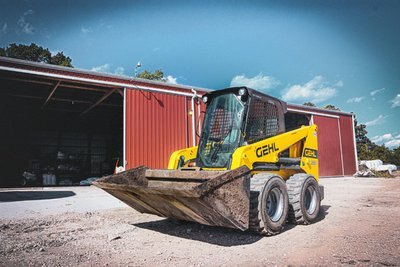

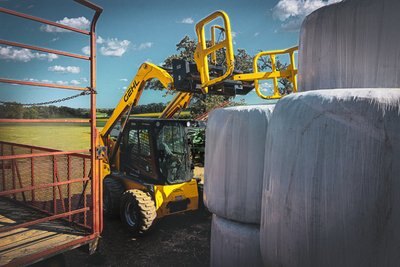

Gehl - Skid Loader R220

  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
  • Gehl Skid Loader R220
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  R220
Compact Loaders

Optimize your operations with the R220. This medium-frame skid loader was born at the intersection of dimensions and performance. The ideal construction machine that will handle any job with ease. We thought about calling it simple, intuitive and strong but it didn't pass our Marketing Director's approval. The R220, need we say more? If so, visit your local dealer and they'll show you around this beast. Simple to service and works like you.
Specifications
Model
Skid Loader R220
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
2200 lbs
Dump Reach At Full Height
15.197 in
Overall Length With Bucket
136.496 in
Overall Operating Height - Fully Raised
160.984 in
capacities
Unladen Weight
7980.73 lbs
Rated Operating Capacity
2200.21 lbs
Rated Operating Capacity With Optional Counterweight
2369.96 lbs
weight and dimensions
Wheelbase
3 ft 6.99 in
Dump Height
7 ft 10.01 in
Bucket Width
5 ft 10 in
Ground Clearance
7.99 in
Rollback At Ground
28 °
Seat To Ground Height
3 ft 4 in
Clearance Circle - Rear
5 ft
Dump Angle At Full Height
40 °
Dump Reach At Full Height
1 ft 3.19 in
Overall Width Less Bucket
5 ft 5.51 in
Overall Length With Bucket
11 ft 4.49 in
Overall Length - Less Bucket
8 ft 9 in
Overall Height To Top Of ROPS
6 ft 8.98 in
Clearance Radius - Front With Bucket
7 ft 3.51 in
Height To Hinge Pin – Fully Raised
10 ft 2.99 in
Clearance Circle - Front Without Bucket
4 ft 4 in
Overall Operating Height - Fully Raised
13 ft 4.98 in
performances
Travel Speed (unladen)
8.01 mph
Travel Speed With Two-Speed Option - Maximum
11.93 mph
wheels
Standard Tyres
12.00x16.5 HD
engine
Battery
12 V
Engine Norm
Stage V
Engine Brand
Yanmar
Engine Model
4TNV98CT-NMSLV Stage V
Starter (kW)
3 kW
Net Power (kW)
53.70 kW
Gross Power (kW)
53.70 kW
Max. Torque / Engine Rotation
294 Nm / 2500 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
90 l/min
High-Flow Auxiliary Hydraulics – Option
132.50 l/min
tank capacities
Fuel Tank
17.99 US gal
Displacement
0.87 US gal
Reservoir Capacity Hydraulics
8 US gal
noise and vibration
Environmental Noise (LwA)
101 dB(A)
Vibration To Whole Hand/arm
< 1.50 m/s²
Whole-Body Vibration (ISO 2631-1)
.96 m/s²
