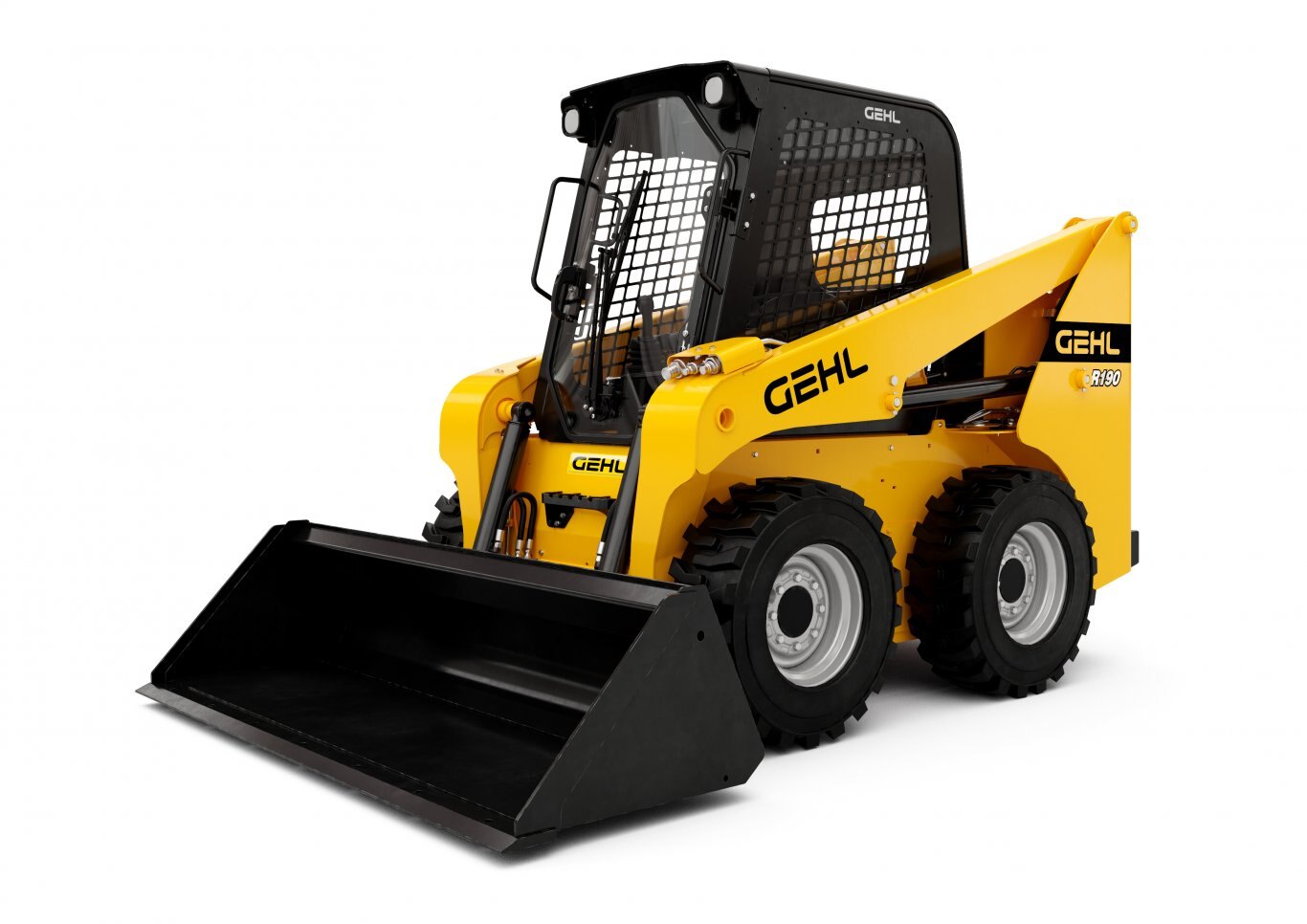

Gehl - Skid Loader R190

  • Gehl Skid Loader R190
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  R190
Compact Loaders

Boasting 862 kg of rated operating capacity this machine is not to be underestimated. With the optional counterweight added this machine can lift over a ton! Remember to consider how you'll be transporting the machine you choose because a smaller body style may play to your advantage. Visit a dealer today to get behind the controls and find the right fit for you. On a farm or jobsite daily tasks change and this machine is suitable to be your multifunctional tool that fits every job perfectly.
Specifications
Model
Skid Loader R190
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
1900 lbs
Dump Reach At Full Height
22.52 in
Overall Length With Bucket
127.008 in
Overall Operating Height - Fully Raised
157.992 in
capacities
Unladen Weight
6880.62 lbs
Rated Operating Capacity
1900.38 lbs
Rated Operating Capacity With Optional Counterweight
2109.82 lbs
weight and dimensions
Wheelbase
3 ft 6 in
Dump Height
7 ft 6.98 in
Bucket Width
5 ft 5.98 in
Ground Clearance
6.49 in
Rollback At Ground
26 °
Seat To Ground Height
3 ft 3.01 in
Clearance Circle - Rear
4 ft 10.50 in
Dump Angle At Full Height
42 °
Dump Reach At Full Height
1 ft 10.51 in
Overall Width Less Bucket
5 ft 4.21 in
Overall Length With Bucket
10 ft 7 in
Overall Length - Less Bucket
7 ft 10.01 in
Overall Height To Top Of ROPS
6 ft 8 in
Clearance Radius - Front With Bucket
6 ft 7.01 in
Height To Hinge Pin – Fully Raised
10 ft 0.51 in
Clearance Circle - Front Without Bucket
3 ft 8.48 in
Overall Operating Height - Fully Raised
13 ft 1.99 in
performances
Travel Speed (unladen)
7.51 mph
Travel Speed With Two-Speed Option - Maximum
12.48 mph
wheels
Standard Tyres
10.00x16.5 HD
engine
Battery
12 V
Engine Norm
Stage V
Engine Brand
Yanmar
Engine Model
4TNV98C-NMSLV Stage V
Starter (kW)
3 kW
Net Power (kW)
51 kW
Gross Power (kW)
51.70 kW
Max. Torque / Engine Rotation
241 Nm / 1625 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
70 l/min
High-Flow Auxiliary Hydraulics – Option
119 l/min
tank capacities
Fuel Tank
16.51 US gal
Displacement
0.87 US gal
Reservoir Capacity Hydraulics
8 US gal
noise and vibration
Environmental Noise (LwA)
101 dB(A)
Vibration To Whole Hand/arm
< 1.50 m/s²
Whole-Body Vibration (ISO 2631-1)
.96m/s²
