ID # 17931504

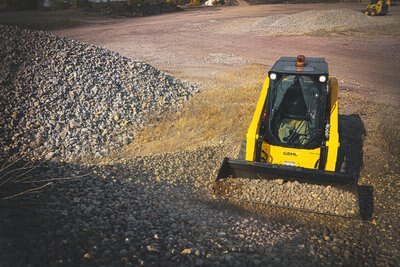

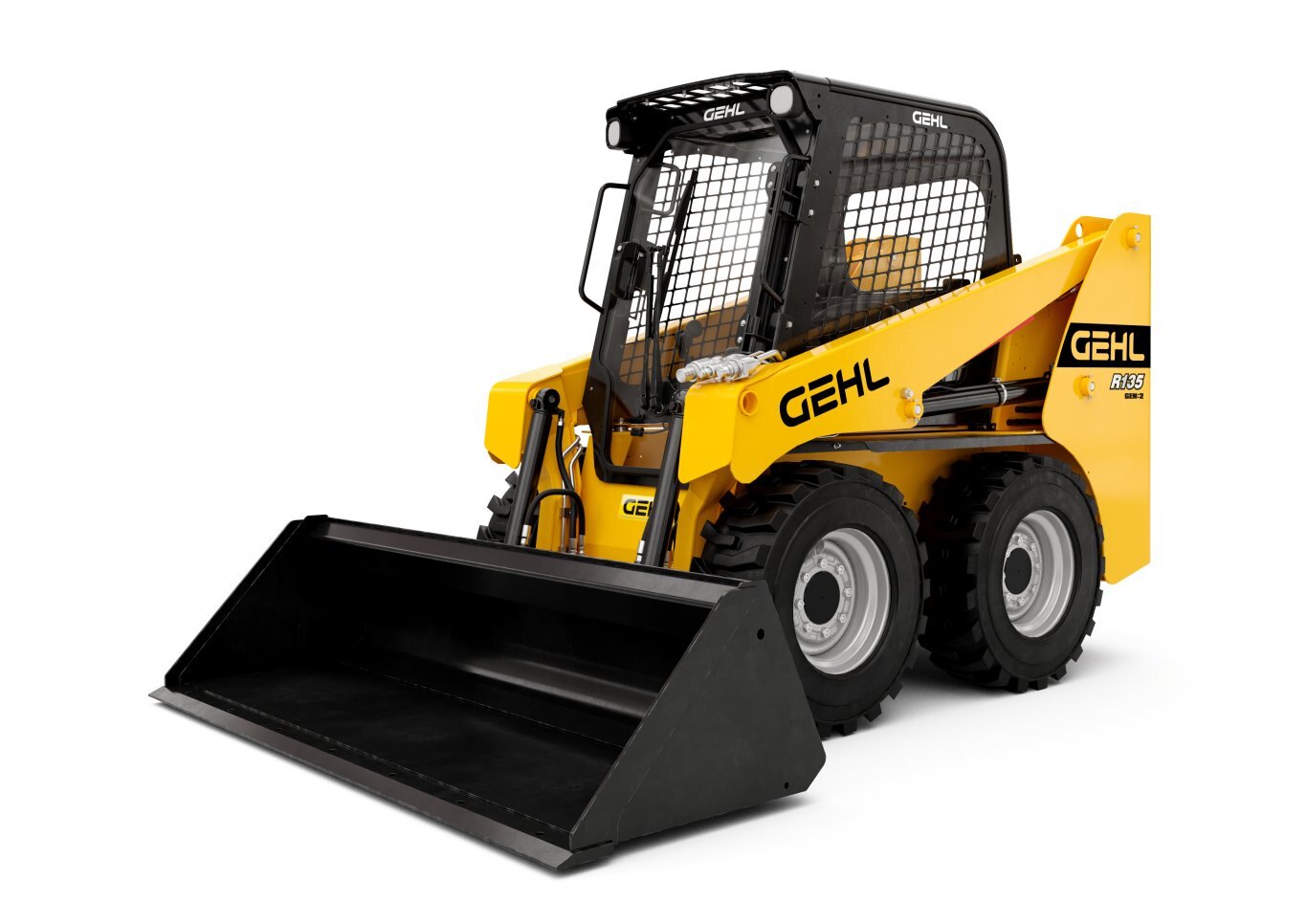

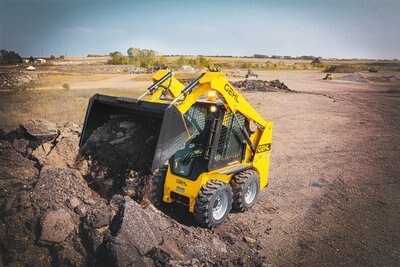

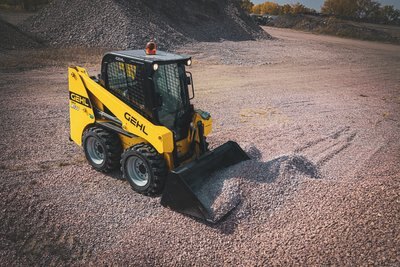

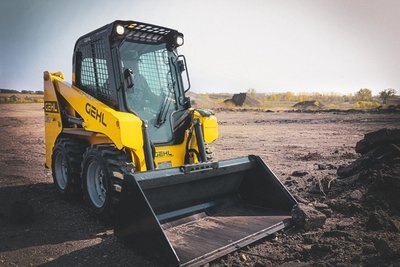

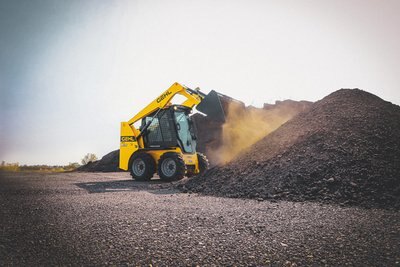

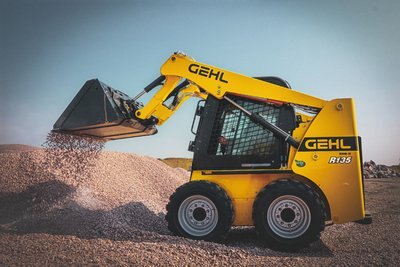

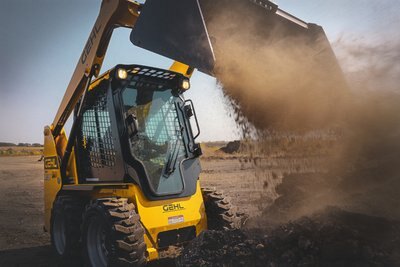

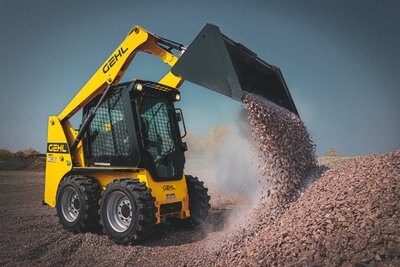

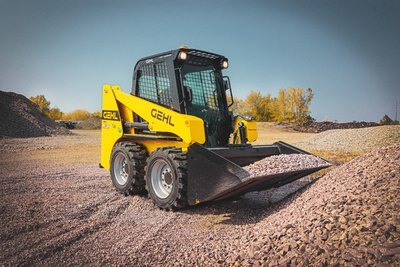

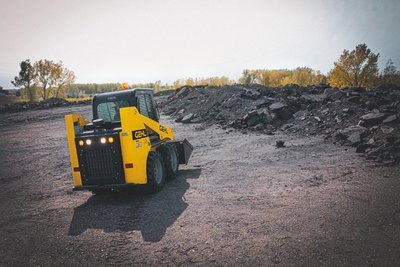

Gehl - Skid Loader R135

  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
  • Gehl Skid Loader R135
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  R135
Compact Loaders

The R135 GEN: 2 skid loader is an great option that includes a compact body style with a little extra lifting capacity compared to our smallest loaders. Still able to be easily transported and the operator experience is very intuitive. New low effort controls in the GEN:2 help with operator fatigue after a long day behind the controls. Air-ride seat and other upgradeable options available to increase comfort if long hours of operation is more common than not for your new R135 GEN:2.
Specifications
Model
Skid Loader R135
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
1349 lbs
Dump Reach At Full Height
23.268 in
Overall Length With Bucket
120 in
Overall Operating Height - Fully Raised
143.819 in
capacities
Unladen Weight
5130.15 lbs
Rated Operating Capacity
1349.22 lbs
Rated Operating Capacity With Optional Counterweight
1499.14 lbs
weight and dimensions
Wheelbase
3 ft 1.40 in
Dump Height
6 ft 11.46 in
Bucket Width
4 ft 6.01 in
Ground Clearance
7.91 in
Rollback At Ground
28 °
Seat To Ground Height
2 ft 9.30 in
Clearance Circle - Rear
4 ft 6.01 in
Dump Angle At Full Height
40 °
Dump Reach At Full Height
1 ft 11.26 in
Overall Width Less Bucket
4 ft 5.70 in
Overall Length With Bucket
10 ft
Overall Length - Less Bucket
7 ft 7.41 in
Overall Height To Top Of ROPS
6 ft 3.98 in
Clearance Radius - Front With Bucket
6 ft 0.51 in
Height To Hinge Pin – Fully Raised
9 ft 1.84 in
Clearance Circle - Front Without Bucket
3 ft 8.09 in
Overall Operating Height - Fully Raised
11 ft 11.81 in
performances
Travel Speed (unladen)
8.01 mph
wheels
Standard Tyres
10.00x16.5 HD
engine
Battery
12 V
Engine Norm
Stage V / Tier 4
Engine Brand
Yanmar
Engine Model
4TNV88C
Starter (kW)
2.30 kW
Net Power (kW)
33.20 kW
Gross Power (kW)
34.30 kW
Max. Torque / Engine Rotation
146.20 Nm / 2800 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
70 l/min
tank capacities
Fuel Tank
15.69 US gal
Displacement
0.57 US gal
noise and vibration
Environmental Noise (LwA)
101 dB(A)
Vibration To Whole Hand/arm
< 1.77 m/s²
Whole-Body Vibration (ISO 2631-1)
.81 m/s²
