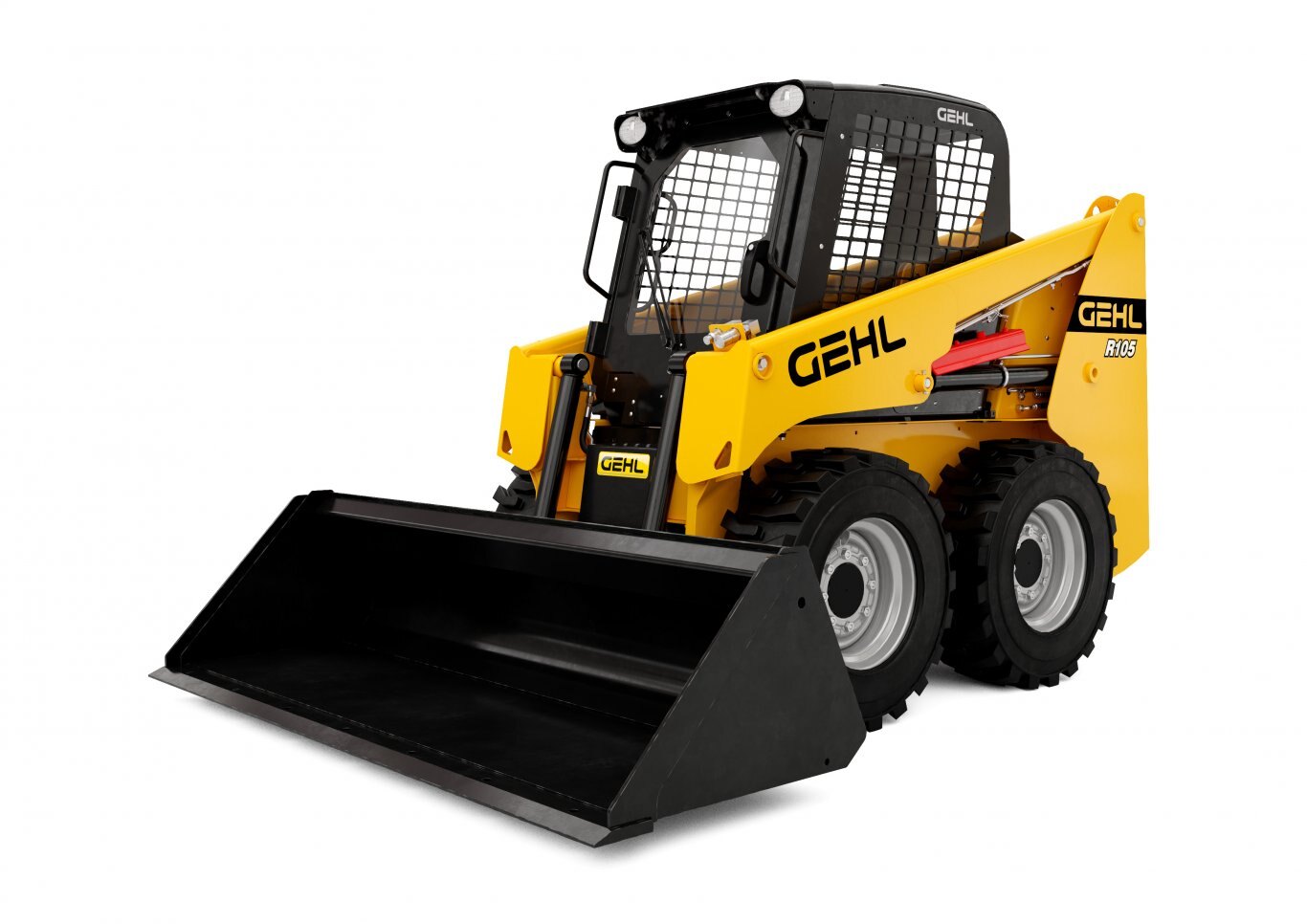

Gehl - Skid Loader R105

  • Gehl Skid Loader R105
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  R105
Compact Loaders

When you're ready to take your business or property to the next level this R105 ultra-compact skid loader shines. Easy for a customer or rental company to transport. Clearing narrow gates and small entry ways is no problem for this all-terrain machine. Offering improved performance on rough and uneven ground. Take advantage of the full versatility of the R105 skid steer loader to carry out your various operations - transporting, loading, grading and unloading. Make sure to check out this durable loader at a low price point in its capacity class. You can also transform your machine anytime with an endless variety of skid loader attachments offered by GEHL.
Specifications
Model
Skid Loader R105
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Gehl
Rated Operating Capacity
1049 lbs
Dump Reach At Full Height
25.236 in
Overall Length With Bucket
117.992 in
Overall Operating Height - Fully Raised
142.008 in
capacities
Unladen Weight
4199.80 lbs
Rated Operating Capacity
1049.40 lbs
Rated Operating Capacity With Optional Counterweight
1175.06 lbs
weight and dimensions
Wheelbase
2 ft 10.48 in
Dump Height
6 ft 10 in
Bucket Width
4 ft 6.01 in
Ground Clearance
6.25 in
Rollback At Ground
31 °
Seat To Ground Height
2 ft 8.51 in
Clearance Circle - Rear
4 ft 6.01 in
Dump Angle At Full Height
40 °
Dump Reach At Full Height
2 ft 1.23 in
Overall Width Less Bucket
4 ft 0.50 in
Overall Length With Bucket
9 ft 9.99 in
Overall Length - Less Bucket
7 ft 4.50 in
Overall Height To Top Of ROPS
5 ft 10.23 in
Clearance Radius - Front With Bucket
6 ft
Height To Hinge Pin – Fully Raised
8 ft 11.51 in
Clearance Circle - Front Without Bucket
3 ft 6 in
Overall Operating Height - Fully Raised
11 ft 10 in
performances
Travel Speed (unladen)
5.13 mph
wheels
Standard Tyres
27x8.5x15 HD
engine
Battery
12 V
Engine Norm
Stage V
Engine Brand
Yanmar
Engine Model
3TNV88C-KMSV Stage V
Starter (kW)
2.30 kW
Net Power (kW)
23.70 kW
Gross Power (kW)
25.50 kW
Max. Torque / Engine Rotation
109.40 Nm / 2800 rpm
hydraulics
Standard Flow - Auxiliary Hydraulics
55 l/min
tank capacities
Fuel Tank
10.01 US gal
Displacement
0.43 US gal
Reservoir Capacity Hydraulics
8 US gal
noise and vibration
Environmental Noise (LwA)
101 dB(A)
Vibration To Whole Hand/arm
< 1.70 m/s²
Whole-Body Vibration (ISO 2631-1)
1.12 m/s²
