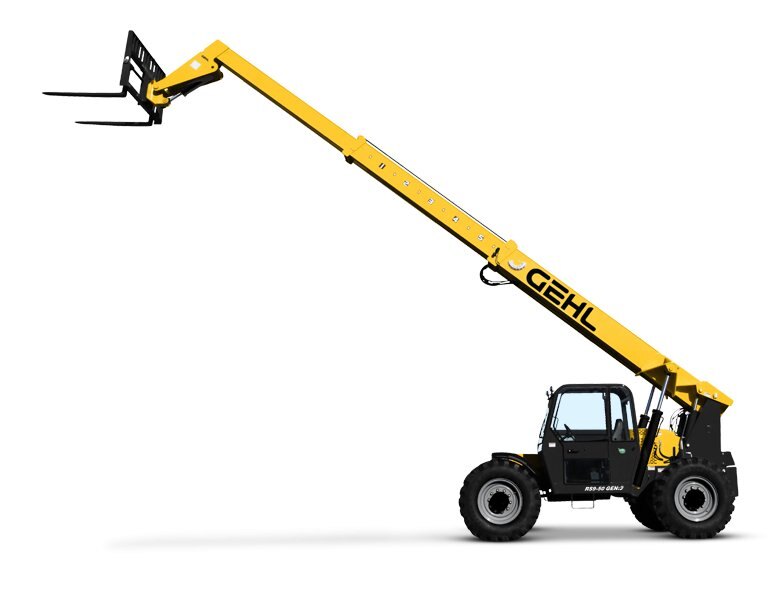

The model RS9-50 GEN:3 is built with high quality components, for long life and superior performance.

• Land 5,000 lbs at 47' 0" high without moving the machine.
• Additional reach of 50' 0" telescopic boom provides greater work range and material placement ability than competitive 42' 0" or 44' 0" units..
• Boom tip lift hook option is now available as a factory-installed option or field installed option.

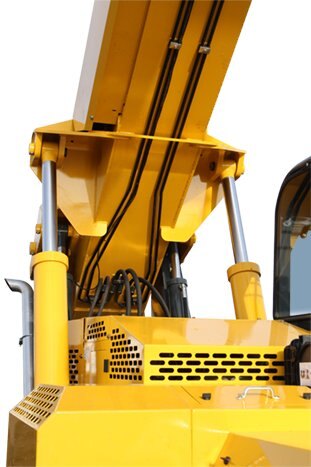

• Proven welded box-section telescopic boom design maximizes material lift and placement.
• Cylinder design provides one of the fastest cycle times in the industry.
• Frame leveling feature adjusts 10-degrees to the left and right, for level performance on uneven terrain.
• Internal wet disc brakes provide excellent braking and long life.
• Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.

The RS9-50 GEN:3 Telescopic Handler features spacious, durable operator stations to maximize comfort and productivity.

• 44 cubic-foot cab enclosure provides optimal leg room and a spacious operating environment.
• ROPS/FOPS canopy is standard equipment; ROPS/FOPS enclosed cab is optional.
• Virtually 360-degree visibility increases safety and operating accuracy.
• Deluxe high-back seat maximizes operator comfort. Adjustable suspension seat is optional.
• Side and rear glass is standard equipment.

Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

• In 4-wheel steer, the machine has a 13' 8" turning radius for machine positioning on tight job sites..

Turning Radius (m)       13'8" (4.2)

The RS9-50 GEN:3 Telescopic Handlers provides the power to get work done effectively and efficiently.

• Dana four-speed power-shift transmission is easy to operate.
• Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.

The model RS9-50 GEN:3 has outstanding hydraulic system and control performance.

• Dual-function, pilot-assisted joystick is standard equipment.
• Optional tri-function, pilot-assisted joystick allows the operator to set fork tilt and auxiliary function speeds.
• Boom tip auxiliary hydraulics are standard to power hydraulic operated attachments.
• Auto-leveling feature keeps loads level when raising/lowering the boom.

Plenty of access points and over-sized covers make service and maintenance on the RS9-50 GEN:3 quick and efficient.

• Over-sized front cover provides easy access to the hydraulic reservoir and hydraulic pressure ports for service and testing.
• Side-mounted fuel tank with battery access and an additional storage compartment.
• Lockable rear-side covers located on both sides of the machine slide out of the way to expose the engine for service.
• Shorter hoses from main valve to boom provide a compact hose routing, enhancing serviceability.
