• Height to Hinge Pin - Fully Raised (mm): 107.5" (2731)
• Rated Operating Capacity (kg): 1,050 lbs. (476)
• Gross Power (kW): 34.7 hp (25.5)

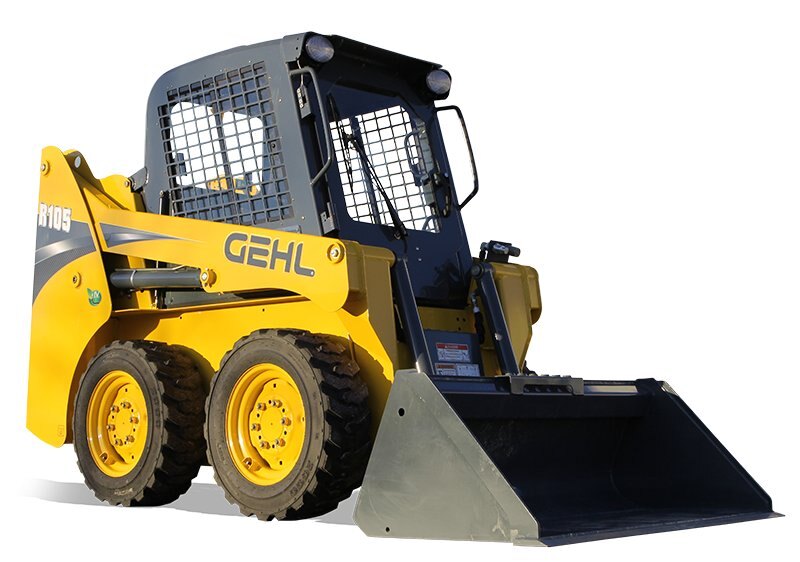

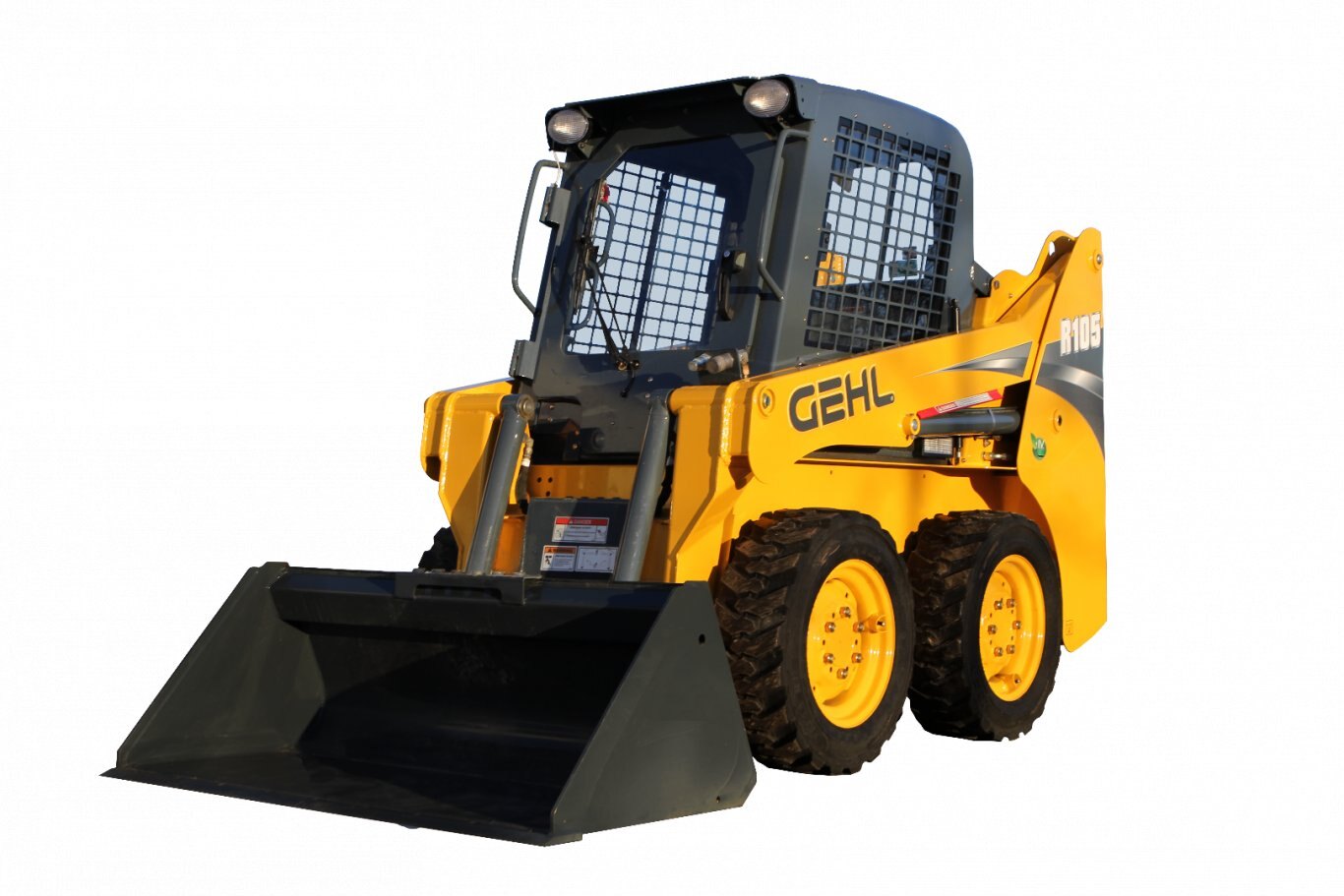

The R105 is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.

• Longer wheelbase and a low center-of-gravity offer a smooth, stable ride.
• Hydraloc™ automatic interlock system locks lift, tilt and drive systems when the operator leaves the seat, increasing operator safety. System also engages when the restraint bar is raised or the ignition switch is turned off.
• Lift arm hydraulic tubes are concealed and protected from the work environment.
• Rated operating load can be readily increased with the addition of a counterweight.
• Overall Width (mm)  :  48.4" (1229)
• Overall Height to Top of ROPS (mm)  :  70.3" (1786)

• ROPS/FOPS Level II is standard for extra operator protection.
• Roof grid section and window provide excellent bucket visibility at full height.
• Adjustable operator restraint bar offers secondary protection and serves as a padded armrest.
• Lockout system shuts down lift/tilt functions when optional front door is opened.
• Open canopy, open canopy with door and enclosed cab with heat are available.

• Liquid-cooled for superior performance in all weather conditions.
• Excellent cold weather starting with glow plug assist system.
• Make : Yanmar
• Model : 3TN88CKMS Tier IV
• Net Power (kW) @ rpm : 33.1 (24.7) @ 2800
• Maximum Torque (Nm) @ rpm : 80 ft. - lbs. (108) @ 1680
• Displacement (L)  : 100 cu. in. (1.6)

• Direct-drive hydrostatic pump with self-neutralizing feature provides 100% efficient drive from engine to pump, requiring no maintenance
• Hydraloc™ Automatic Interlock System increases operator safety by locking lift, tilt and drive systems when the operator leaves the seat, raises the restraint bar or turns off the ignition switch.
• Auxiliary Hydraulics - Standard  (L/min) : 14.5 gpm (55)
• High-Flow Auxiliary Hydaulics - Option : N/A
• Reservoir Capacity (L) : 8 gal. (30.3)

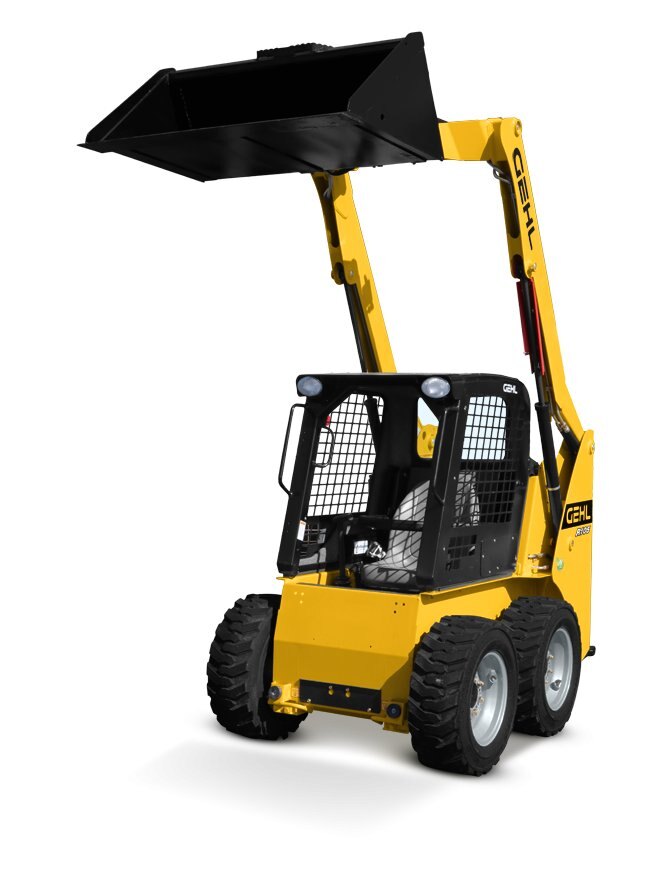

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.

• Entire ROPS/FOPS structure pivots back, with gas-spring assist, for full, easy access to the internal hydraulic components.
• Swing-open rear door and flip-up engine cover fully expose maintenance access points to engine, battery, filters and filler caps.
• Maintenance-free axles are lubricated and sealed for long life.
• Removable access plates for clean out.
