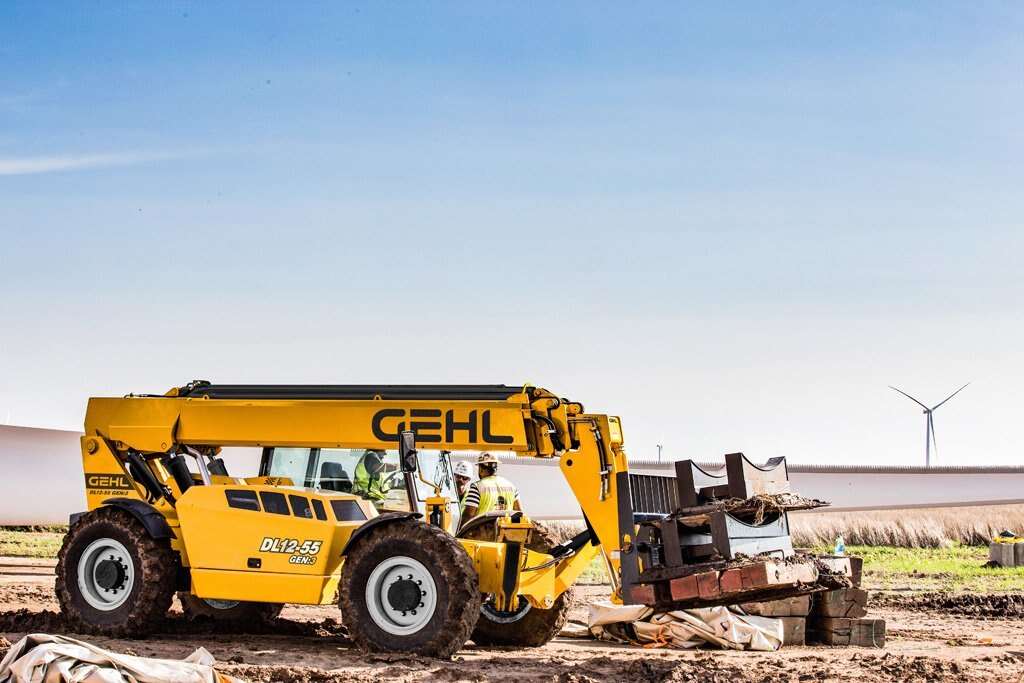

2020 Gehl DL12-55 GEN:3 Telescopic Handler

  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
  • 2020 Gehl DL12 55 GEN:3 Telescopic Handler
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

DL12-55 GEN:3
Telescopic Handler
- Rated Lift Capacity (kg): 12,000 lbs. (5444)

- Gross Power (kW): 120 hp (89)

- Maximum Lift Height (m): 55' 5" (16.8)

- Maximum Forward Reach (m): 40' 9" (12.3)
 Performance
Gehl DL12-55 GEN3 Performance

 The DL12-55 GEN:3 Telescopic Handler is a tool to increase jobsite productivity, develop new business and improve your return-on-investment.

  • Rear axle stabilization system locks the rear axle to the frame if the parking brake is engaged, if the boom is raised 60 degrees or higher, or if the PWP System is activated.
  • 10-degree frame tilt in both directions.
  • Double universal joints for tight turn radius without applying stress on the axle.
  • Two-wheel, four-wheel, crab steering standard.
  • Standard centrifugal pre-cleaner and two-stage air cleaner.
  • Powershift transmission with four forward and two reverse gears, with a 2-year/2,000-hour warranty.
  • Standard foam filled tires.
  • ROPS and FOPS certified operator's compartment.
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 22.8 mph (36.7)
Turning Radius (m) 12'2" (3.7)
Lift Capacity (kg) 12,000 lbs. (5444)

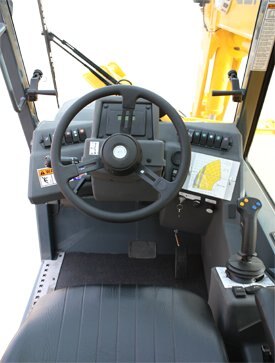

 Operator's Cabin

Gehl DL12-40 GEN3 Operator's Station Controls
Comfort comes standard on the DL12-55 GEN:3 Telescopic Handler, boasting 57 cubic feet of interior space.
  • Comfort comes standard on the DL12-55 GEN:3 Telescopic Handler, boasting 57 cubic feet of interior space.
  • Lockable, two-piece cab door for security, communication and cross-ventilation.
  • Standard lockable storage compartment for service items, such as work gloves, tools, blueprints and more.
  • Choice of canopy or cab with heating and defrosting systems standard (air-conditioning optional).
  • Un-matched panoramic visibility increases work-site safety and operator productivity and reduces operator fatigue.
 Handling
Gehl DL12-40 GEN3 DL Series Steering
  • Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.
  • Industry loading job site maneuverability with a 12' 2" turning radius.
 Engine
Gehl DL12-40 GEN3 DL Series Engine Access

The DL12-55 GEN:3 Telescopic Handlers provides the power to get work done effectively and efficiently.

  • Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair.







Manufacturer Cummins
Model 3.8L QSF Tier IV
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 22.8 mph (36.7)
 Hydraulics
Gehl DL12-40 GEN3 Telehandler Hydraulics

 The DL12-55 GEN:3 Telescopic Handler has the hydraulic power to get the job done.

Pump Type Dual Gear
Total Capacity (L/min) 19 gpm (72) / 24 gpm (91)
Main Relief Pressure (bar) 3,000 psi (207)
Auxiliary Relief Pressure (bar) 2,500 psi (172)
Hydraulic Reservoir Capacity (L) 62.5 gal. (237)
 Attachments
There is a tool for every job, and the DL12-40 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.
A Carriages – Masonry, framing and standard carriages available in different widths.
B Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C Fork Shift - 48" (1270 mm) wide.
E Swing Carriage – 90° swing.
F Log and Pipe Grapple.
G Jib Boom - 5' (1.5 m) with winch and 60' (18.3 m) cable.
H Truss Boom - 12' (3.6 m) and 15' (4.5 m) with optional winch.
Dl Attachments
 Serviceability

Side-mounted engine improves serviceability, allowing three-sided service access through a large, hinged hood.

  • Exterior boom hose routings for easy access.
  • Transmission and hydraulics easily accessed through large hinged panel.
  • Easy access to hydraulic oil and transmission reservoirs.
  • Hydraulic main control valve in back door.
  • Rifled bushings in key areas



Specifications
Model
DL12-55 GEN:3 Telescopic Handler
Category Name
Skid Steer
Year
2020
Sale Type
New
Manufacturer
Gehl
Model
3.8L QSF Tier IV
Width
8'3''
Brakes
Oil-Immersed, Disc-type
Power
120 hp
Pump Type
Dual Gear
Wheelbase
10'8''
Rated Speed
2,400 rpm
Manufacturer
Cummins
Transmission
Dana 4-Speed Power Shift
Fuel Capacity
30 gal.
Total Capacity
19 gpm (72) / 24 gpm
Ground Clearance
16''
Approximate Weight
27,500 lbs.
Length - Less Forks
20'10"
Main Relief Pressure
3,000 psi
Maximum Travel Speed
22.8 mph
Auxiliary Relief Pressure
2,500 psi
Hydraulic Reservoir Capacity
62.5 gal.
