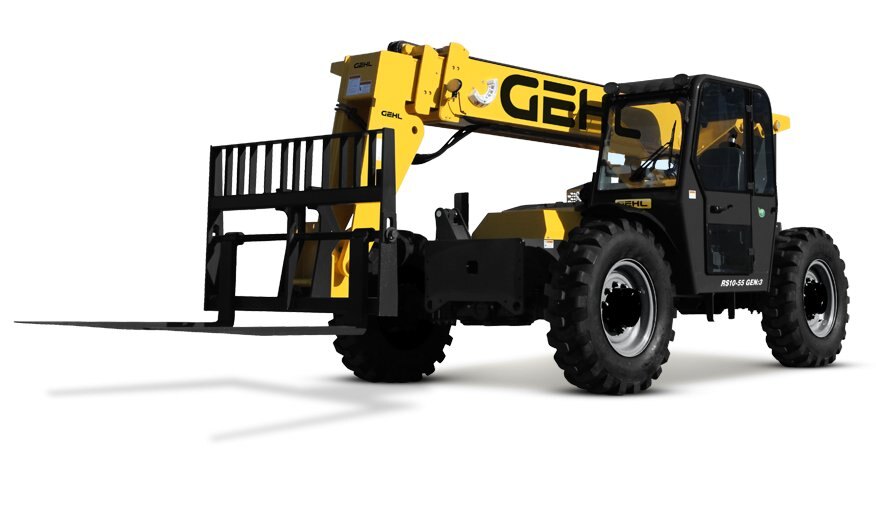

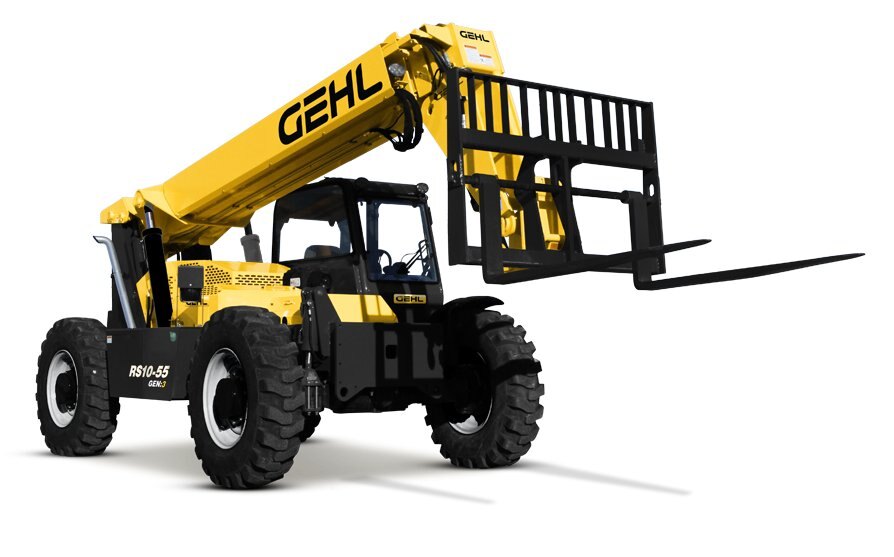

The model RS10-55 GEN:3 is built with high quality components, for long life and superior performance.

• Boom tip lift hook option is now available as a factory-installed option or field installed option.
• Proven welded box-section telescopic boom design maximizes material lift and placement.

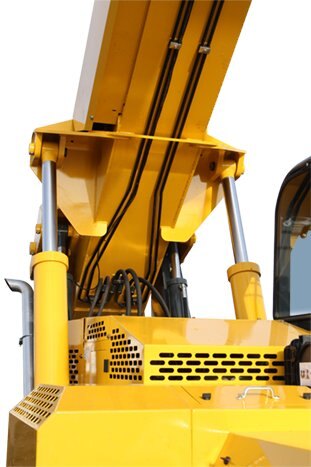

• Cylinder design provides one of the fastest cycle times in the industry.
• Frame leveling feature adjusts 10-degrees to the left and right, for level operation on uneven terrain.
• Internal wet disc brakes provide excellent braking and long life.
• Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.
• Standard front outriggers provide increased forward reach capacity.

The RS10-55 GEN:3 Telescopic Handler features spacious, durable operator stations to maximize comfort and productivity.

• Large cab enclosure provides optimal leg room and a spacious operating environment.
• ROPS/FOPS canopy is standard equipment; ROPS/FOPS enclosed cab is optional.
• Virtually 360-degree visibility increases safety and operating accuracy.
• Deluxe high-back seat maximizes operator comfort. Adjustable suspension seat is optional.
• Side and rear glass is standard equipment.

Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

• Tight turning radius of only 13’ 10” (4.22 m) is one of the tightest in its class.

Turning Radius (m)              13'11" (4.24)

The model RS10-55 GEN:3 has outstanding hydraulic system and control performance.

• Dual-function, pilot-assisted joystick is standard equipment.
• Optional tri-function, pilot-assisted joystick allows the operator to set fork tilt and auxiliary function speeds.
• Auto-leveling feature keeps loads level when raising/lowering the boom.
• Boom Tip auxiliary hydraulics are standard to provide power for hydraulic operated attachments.

Plenty of access points and over-sized covers make service and maintenance on the RS10-55 GEN:3 quick and efficient.

• Over-sized front cover provides easy access to the hydraulic reservoir and hydraulic pressure ports for service and testing.
• Side-mounted fuel tank with battery access and an additional storage compartment.
• Lockable rear-side covers located on both sides of the machine slide out of the way to expose the engine for service.
• Shorter hoses from main valve to boom provide a compact hose routing, enhancing serviceability.
