ID # 13371596

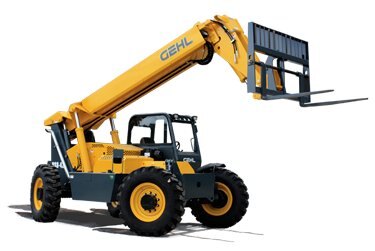

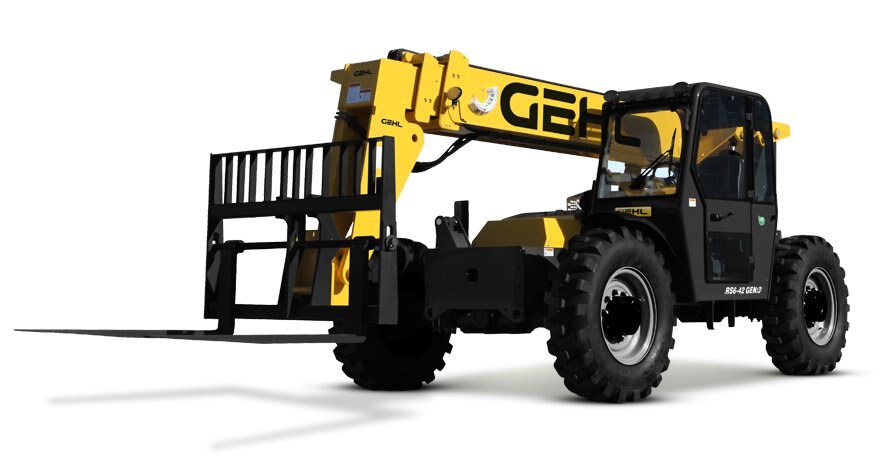

2020 Gehl RS6-42 GEN:3 Telescopic Handler

  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
  • 2020 Gehl RS6 42 GEN:3 Telescopic Handler
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

RS6-42 GEN:3
Telescopic Handler

- Rated Lift Capacity (kg) : 6,600 lbs. (2994)

- Gross Power (kW) : 120 hp (89)

- Maximum Lift Height (m) : 42' 0" (12.8)

- Maximum Forawrd Reach (m) : 28' 3" (8.6)
 Performance
Gehl RS6-42

The model RS6-42 GEN:3 is built with high quality components, which provides the performance to get the job done.

  • Boom tip lift hook option is now available as a factory-installed option or field installed option.
  • Proven welded box-section telescopic boom design maximizes material lift and placement.
  • Cylinder design provides one of the fastest cycle times in the industry.
  • Frame leveling feature adjusts 10-degrees to the left and right, for level performance on uneven terrain.
  • Internal wet disc brakes provide excellent braking and long life.
  • Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.
 Operator's Cabin
Gehl RS6-42 Telehandler Operator Cabin

The RS6-42 GEN:3 Telescopic Handler features spacious, durable operator stations to maximize comfort and productivity.

  • 44 cubic-foot cab enclosure provides optimal leg room and a spacious operating environment.
  • ROPS/FOPS canopy is standard equipment; ROPS/FOPS enclosed cab is optional.
  • Side and rear glass is standard equipment.
  • Virtually 360-degree visibility increases safety and operating accuracy.
  • Deluxe high-back seat maximizes operator comfort. Adjustable suspension seat is optional.
 Handling
Gehl RS6-42 Telehandler Steering

Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

  • In 4-wheel steer, the machine has a 13' 8" turning radius for machine positioning on tight job sites..



Turning Radius (m)                                  13'8" (4.2)
 Engine
Gehl RS8-42 Engine Access

The RS6-42 GEN:3 Telescopic Handlers provides the power to get work done effectively and efficiently.

  • Dana three-speed power-shift transmission is easy to operate.
  • Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.



Manufacturer Cummins
Model QSF 3.8 Tier IV
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 19.6 mph (31.5)
Rated Speed 2,500 rpm
 Hydraulics
Gehl RS6-42 Telehandler Hydraulics

 The model RS6-42 GEN:3 has outstanding hydraulic system and control performance.

  • Dual-function, pilot-assisted joystick is standard equipment.
  • Optional tri-function, pilot-assisted joystick allows the operator to set fork tilt and auxiliary function speeds.
  • Auto-leveling feature keeps loads level when raising/lowering the boom.



Pump Type Gear
Total Capacity (L/min) 41.5 gpm (157)
System Pressure (bar) 3,000 psi (207)
Hydraulic Reservoir Capacity (L) 45 gal. (170)
 Attachments
There is a tool for every job, and the RS6-42 GEN:3 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.

A Carriages – Masonry, framing and standard carriages available in different widths.
B Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C Fork Shift - 50" (1270 mm) wide.
D Personnel Work Platforms - 180° swing platform and 48” x 50” x 114” (1219 mm x 1270 mm x 2895 mm) platform.
E Swing Carriage – 90° and 180° swing.
F Log and Pipe Grapple.
G Jib Boom - 5' (1.5 m) with winch and 60' (18.3 m) cable.
H Truss Boom - 15' (4.5 m) with optional winch.
Gehl RS6-42 Telehandler Attachment System
Gehl RS6-42 GEN:2 Telehandler Boom Hook Attachment System

 Boom Tip Lift Hook

  • This factory-installed option provides a secure lifting point for handling suspended loads without the use of an additional attachment.
  • The lift capacity remains the same as a standard carriage, while the quick attachment point increases versatility and reduces downtime.
  Serviceability
Gehl RS6-42 Telehandler Service Access

Plenty of access points and over-sized covers make service and maintenance on the RS6-42 GEN:3 quick and efficient.

  • Over-sized front cover provides easy access to the hydraulic reservoir and hydraulic pressure ports for service and testing.
  • Side-mounted fuel tank with battery access and an additional storage compartment.
  • Lockable rear-side covers located on both sides of the machine slide out of the way to expose the engine for service.
  • Shorter hoses from main valve to boom provide neat hose routing, enhancing serviceability.
Specifications
Model
RS6-42 GEN:3 Telescopic Handler
Category Name
Skid Steer
Year
2020
Sale Type
New
Manufacturer
Gehl
Model
QSF 3.8 Tier IV
Width
8'0''
Brakes
4-Wheel Hydraulically Actuated Internal Wet-Disc Brake
Power
120 hp
Pump Type
Gear
Wheelbase
10'0''
Aspiration
120 hp
Rated Speed
2,500 rpm
Manufacturer
Cummins
Transmission
Dana 3-speed Powershift
Parking Brake
Spring-Applied, Hydraulic Release (SAHR) on Front Axle
Total Capacity
41.5 gpm
Ground Clearance
16''
System Pressure
3000 psi
Length - Less Forks
19'1"
Maximum Travel Speed
19.6 mph
Hydraulic Reservoir Capacity
45 gal.
