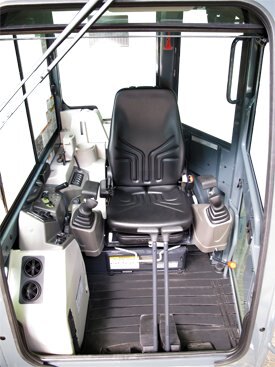

T he Z80 GEN:2 comes with a fully enclosed cab as standard equipment providing ultimate in operator comfort.

• Standard cab enclosure with heat or heat/air-conditioning system provides protection in extreme weather conditions.
• Adjustable suspension seat and armrests provide personalized comfort.
• Excellent visibility in all directions allows safe and efficient operation. Rear mirror provides a view of the back and side of the machine for additional safety.
• Work lights and integrated boom light enhances the operator’s view after dark.
• The cab is mounted on five silicon oil filled iso-mounts, which reduce cab noise and vibration to the operator.

The controls on the Z80 GEN:2 are ergonomically designed and easy to use.

• Large travelling pedals are easy to press and allow confident, reliable work.
• Pilot operated joystick controls are operated by simple wrist movements, reducing fatigue during a long workday.
• One-way auxiliary functions can be controlled by joystick buttons, allowing optimal control of high-flow attachments such as compactors or breakers.
• The proportional control mechanism switch vastly enhances attachment performance, allowing the operator to set the flow for optimal attachment performance.
• The operator can easily select from ISO or standard operating control patterns with the flip of a mechanical lever.

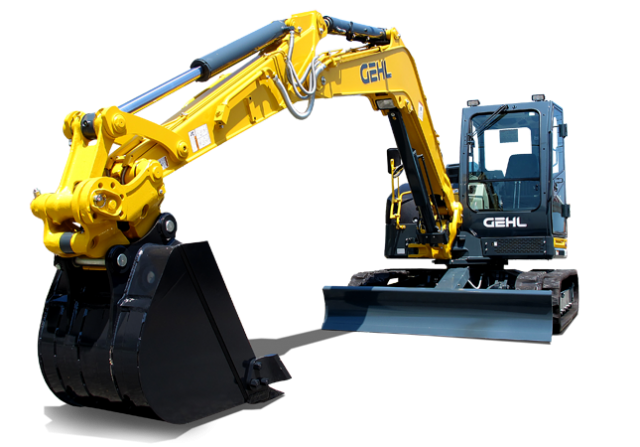

Rugged, high-strength boom incorporates features to protect and extend the life of moving parts and components.

• Precision welded boom is constructed with thick side plates that are reinforced by contoured transition plates.
• Heavy-duty sliding cylinder guards protect exposed cylinder rods from damage.
• Integrated boom light illuminates the work area and allows for safe and effective operation after dark.
• Reliable single pin boom mount design for optimal durability and component life.

 The Z80 GEN:2 is built around a powerful, reliable emission-certified Yanmar diesel engine.

• Proven technology provides reliable operation and a fuel efficient system.
• ECO mode reduces engine RPM by 10% without sacrificing power when activated, saving fuel when full speed is not necessary.
• Easy-starting, even in cold weather without the need for block heaters or starting fluid.
• Auto deceleration improves fuel economy and lowers noise and emissions levels when activated by reducing engine speed to idle after four seconds without hydraulic movement.

Make                                                                                             Yanmar

Model                                                                                            4TNV98C-WBV Tier IV

Type                                                                                              Diesel

Displacement (L)                                                                           202.5 cu.in. (3.32)

Net Power (kW) @ rpm                                                                 55.7 hp (41.5) @ 2000

Fuel Tank (L)                                                                                 30.4 gal. (115)

Fuel Consumption (L/hr)                                                               1.9 gal./hr. (7.2)

• Hydraulic system is designed to enhance engine performance, resulting in a more efficient system.
• Two variable pumps and two gear pumps combine oil and redirect the flow to where it is needed, allowing for simultaneous operation without loss of power.
• Smooth operation, even while using the boom and arm during turning.
• Auxiliary hydraulic valve, tubing and hoses with flat faced coupler connections are standard equipment.
• Two-way and one-way auxiliary flow valve with direct-to-tank bypass valve feature is standard equipment.

Pumps                                                                                    2 variable, 2 gear

Total Flow Rate (L/min)                                                     56.7 gpm (214.5)

Working Pressure (bar)                                                    3,699 psi (255)

Swing System Pressure (bar)                                          3,481 psi (240)

Oil Cooler                                                                          Standard

Hydraulic Tank (L)                                                            15.9 gal. (60)
