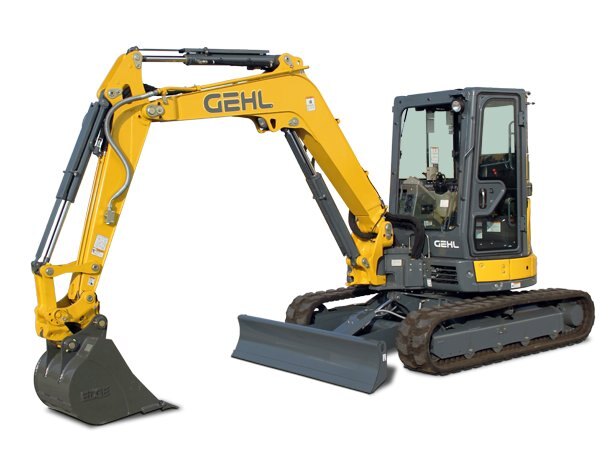

The Z45 GEN:2 is available in canopy or cab configurations, allowing you to tailor the machine to meet your specific work environment.

• Large cab offers state-of-the-art controls, digital display and excellent visibility.
• Walk-through canopy for easy entry and exit.
• Optional cab enclosure with heat or heat/air-conditioning system provides protection in extreme weather conditions.
• Adjustable suspension seat and armrests provide personalized comfort.
• Excellent visibility in all directions allows safe and efficient operation. Rear mirror provides a view of the back and side of the machine for additional safety.
• Work lights and integrated boom light enhances the operator’s view after dark.

The controls on the Z45 GEN:2 compact excavator are ergonomically designed and easy to use.

• Digital Operator Interface shows real time system information, service reminders, and 90 days of operating history.
• Large travelling pedals are easy to press and allow confident, reliable work.
• Pilot operated joystick controls are operated by simple wrist movements, reducing fatigue during a long workday.
• One-way auxiliary functions can be controlled by a foot pedal or joystick buttons, allowing optimal control of high-flow attachments such as compactors or breakers.
• The operator can easily select from ISO or standard operating control patterns with the flip of a mechanical lever.

Rugged, high-strength boom incorporates features to protect and extend the life of moving parts and components.

• Precision welded boom is constructed with thick side plates that are reinforced by contoured transition plates.
• Heavy-duty sliding cylinder guards protect exposed cylinder rods from damage.
• Integrated boom light illuminates the work area and allows for safe and effective operation after dark.
• Reliable single pin boom mount design for optimal durability and component life.

The Z45 GEN:2 compact excavator is built around a powerful, reliable emission-certified Tier IV Yanmar diesel engine.

• Yanmar Tier IV certified diesel engine with 37.7 hp provides excellent balance in power and fuel conservation.
• ECO Mode can be activated from the cab with a switch. When activated, the engine speed is reduced by 10%, reducing fuel consumption for lowered operating costs.
• Auto Deceleration lowers noise and emissions levels when the hydraulic movement has not occurred for more than four seconds. This increases fuel economy and lowers operating costs.
• Proven technology provides reliable operation and a fuel efficient system.
• Easy-starting, even in cold weather without the need for block heaters or starting fluid.

Make                                                                            Yanmar

Model                                                                           4TNV88C-PBV Tier IV

Type                                                                             Diesel

Displacement (L)                                                         133.6 cu.in. (2.19)

Net Power (kW) @ rpm                                               37.7 hp (28.1) @ 2400

Fuel Tank (L)                                                               17.4 gal. (66)

Fuel Consumption (L/hr)                                             1.24 gal./hr. (4.7)

• Standard auxiliary proportional hydraulics give the operator infinitely variable control of the hydraulic flow.
• Hydraulic system is designed to enhance engine performance, resulting in a more efficient system.
• Two variable pumps and two gear pumps combine oil and redirect the flow to where it is needed, allowing for simultaneous operation without loss of power.
• Smooth operation, even while using the boom and arm during turning.
• Auxiliary hydraulic valve, tubing and hoses with flat faced coupler connections are standard equipment.
• Two-way and one-way auxiliary flow valve with direct-to-tank bypass valve feature is standard equipment.

Pumps                                                                                2 variable, 2 gear

Total Flow Rate (L/min)                                                     35.1 gpm (132.8)

Working Pressure (bar)                                                    3,133 psi (216)

Swing System Pressure (bar)                                          3,133 psi (216)

Oil Cooler                                                                          Standard

Hydraulic Tank (L)                                                            10.0 gal. (38)
