ID # 13370540

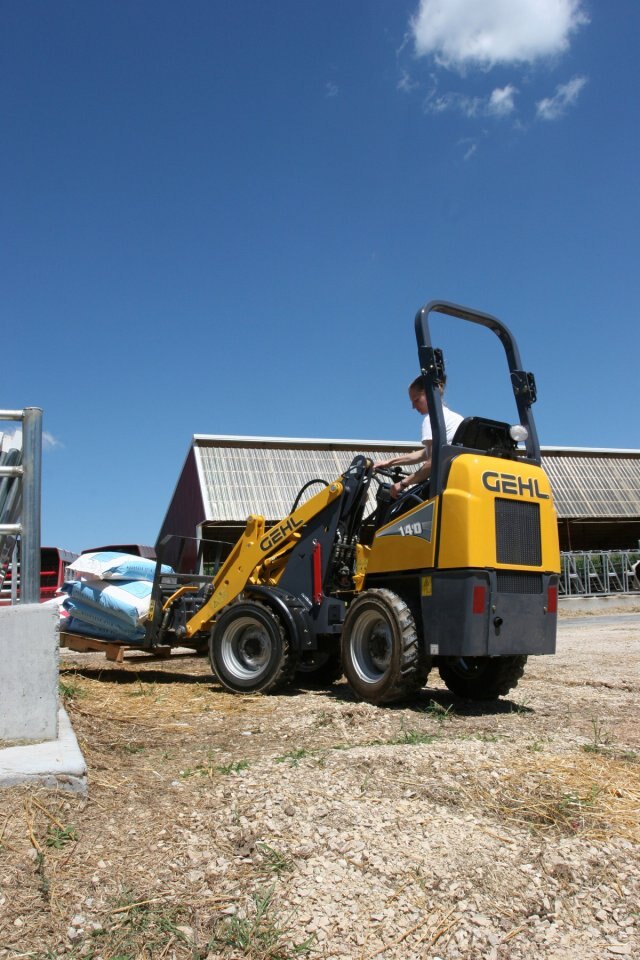

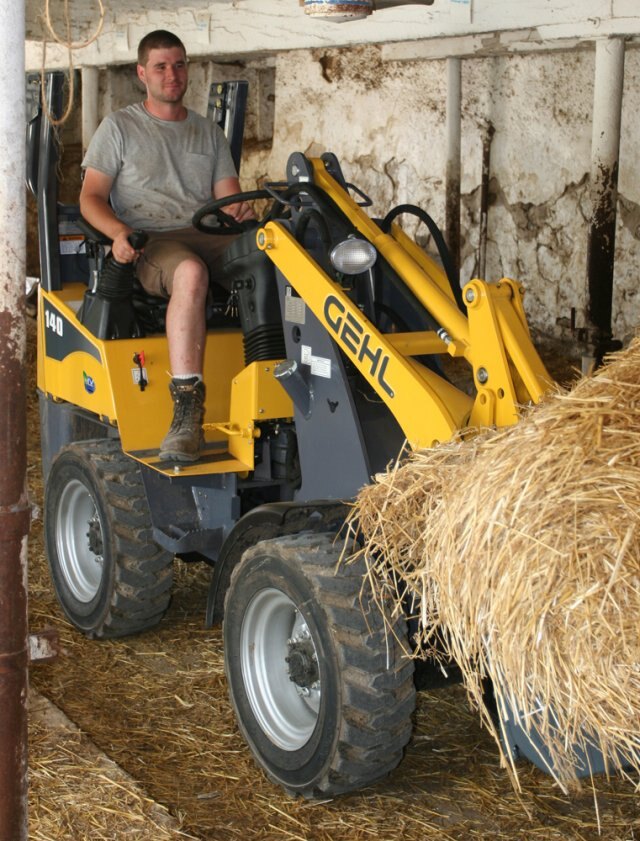

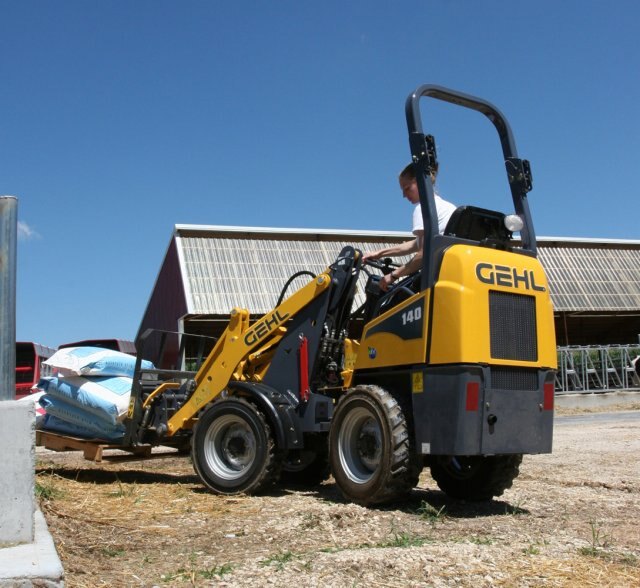

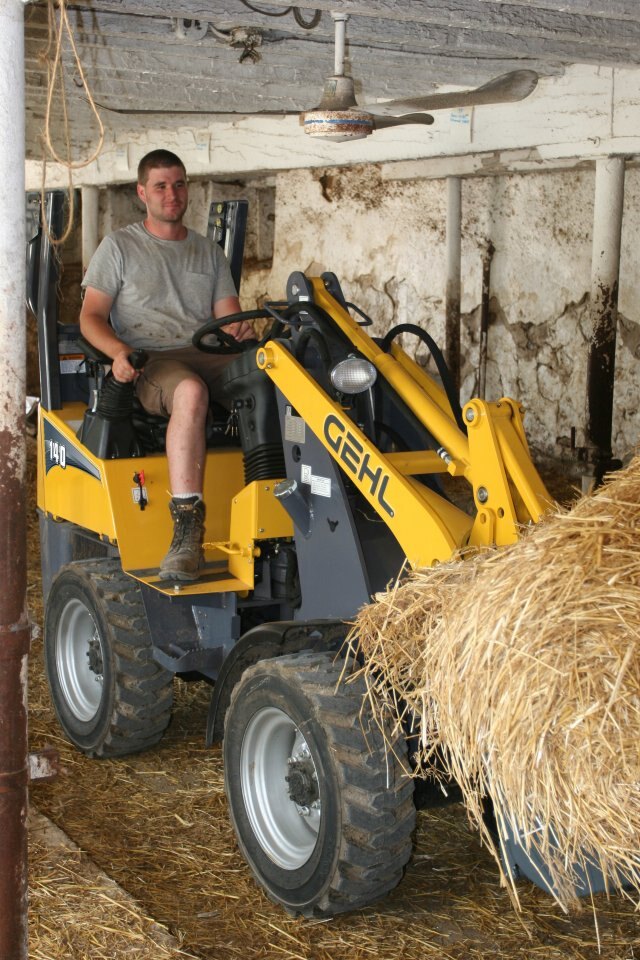

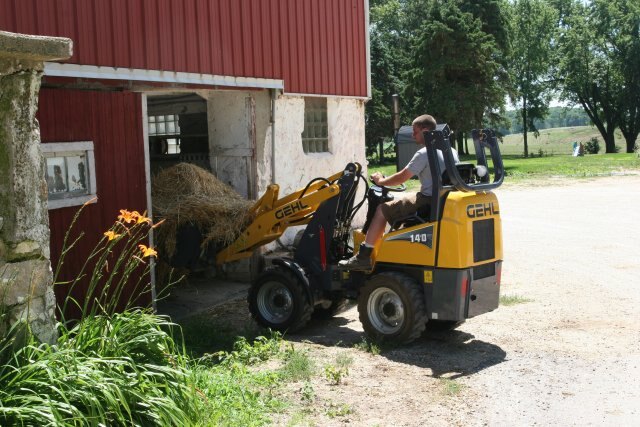

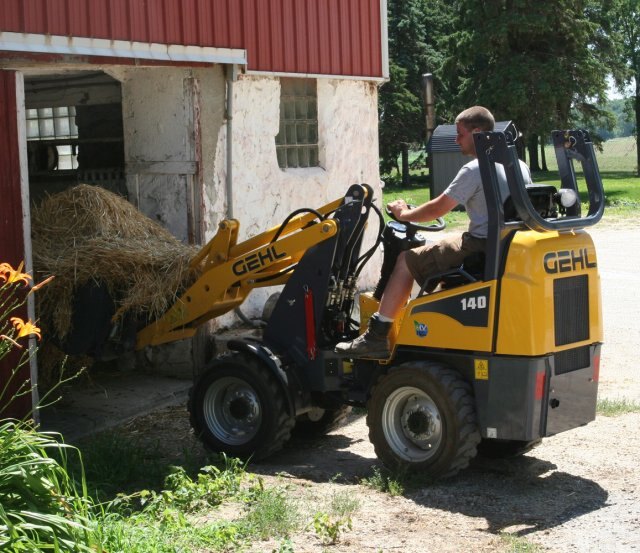

Gehl 140 - 4-Post

  • Gehl 140 4 Post
  • Gehl 140 4 Post
  • Gehl 140 4 Post
  • Gehl 140 4 Post
  • Gehl 140 4 Post
  • Gehl 140 4 Post
  • Gehl 140 4 Post
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

 Operator's Cabin

Operators world-wide will find state-of-the-art ergonomics, unsurpassed visibility and ease of operation.

  • Steering column with center-mount instrumentation for easy operator reference.
  • The standard suspension seat is spring-suspended with a high amount of travel providing a comfortable ride for the operator.
  • Excellent 360-degree visibility is achieved by positioning the operator above instead of behind the load for safe operation and excellent view of the attachment.
  • All models feature comfortable and easy-to-access grab handles to assist entry and exit.
 Controls

The Gehl 140 Articulated Loader features simple-to-use controls at your finger tips. Even the most un-accustomed operator will be comfortable operating these loaders.

  • Multi-function joystick lever controls the lift arm, bucket, float, travel direction, differential lock and auxiliary hydraulic functions
  • Inching pedal allows operators to vary the ground speed while maintaining a fixed engine speed, to optimally run attachments while enabling precise control.
  • Automatic limited slip feature
  • Engine speed can be conveniently controlled with the right foot throttle.
  • Optional speed control adds ability to tailor machine operating speeds to application, independent of engine rotation.
 Engine

The Gehl 140 Articulated Loader is equipped with a industry-proven Yanmar diesel engine.

  • Powerful, quiet and efficient Interim Tier IV-certified Yanmar diesel engines with excellent performance for all applications.
  • Excellent reputation for reliable cold-starting and smooth operation.
 Hydraulics

Power, performance and precision. Achieve this and more with superior hydraulics and handy time-saving features.

  • Two auxiliary hydraulic lines with flat-faced couplers power a variety of tools and make attachment changes easy.
  • Hydraulic hoses are nestled within the lift arms, keeping them out of the loader linkage “damage zone” during lifting and dumping operations.
  • Lift arm and bucket float features allow for “floating” of the lift arm for light scraping or rear-ward leveling actions. Bucket float is a special feature that adds control and more operator flexibility for operating certain attachments with only bucket float.
 Attachment System

A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 140 the most versatile machine on the job site. Popular attachments are listed below.

A Augers
B Blades
C Brooms
D Grapples
E Pallet Forks
F Scraper
G Snow Removal
H Utility Fork
Gehl 140 Articulated Loader Attachment System
 Lift Arm

The lift arm on the 140 is designed to achieve maximum strength, excellent visibility and fast cycle times.

  • Parallel-type linkage provides excellent bucket breakout forces.
  • Linkage becomes recessed in the lift arm at full lift heights for protection when dumping into trucks/trailers and provides excellent forward visibility.
  • Linkage design allows for mechanical self-leveling action in both up and down directions.
  • Nitro-steel rods on the hydraulic cylinders resist abrasion, pitting, scratching and corrosion.
  • Excellent bucket dump angles at the mid- and top-ranges of the lift path as well as outstanding forward reach at mid-range.
  • Adjustable down-stop positioning for low position height control.
 Maneuverability

Get into the tightest spaces with ease. The 140 goes anywhere and does almost everything.

  • A heavy-duty articulating joint offers 45-degree turning angles each way and provides optimal maneuverability with a tight turning radius. Articulated steering has minimal affect on turf and ground surfaces and extends the life of the tires.
  • Chassis oscillates 10 degrees each way, for 20 degrees of total oscillation, to maintain traction by keeping the wheels on the ground on uneven terrain.
  • The tail follows where the front leads, providing excellent maneuverability. The bucket and tires follow a constant turn radius, so the rear of the loader follows the path of the front tires.
  • Narrow machine width allows access to tight, confined spaces that most skid loaders with comparable operating capacities cannot access.
  • High ground clearance allows the loaders to pass over objects in the work-path with ease.
 Serviceability

Reduced downtime is made possible by intelligent engineering and advanced design.

  • Perform daily service checks with ease through the rear engine cover, which provides access to the engine, hydraulic reservoir filler and filter, radiator, and more.
  • The tilting iso-mounted operator’s platform with gas spring lift assistance provides access to the engine fuel and oil filters, battery, and hydraulic pump.
  • Hydraulic components are provided with diagnostic test ports for easy access when required.
  • The control module interlock system located behind the seat on the operator’s platform has LEDs for electrical diagnostic checking.



Specifications
Model
140 - 4-Post
Category Name
Skid Steer
Year
2015
Sale Type
New
Manufacturer
Gehl
Engine Size
68.1 cc
Wheelbase
53.1''
Make
Yanmar
Model/Number Of Cylinders
3TNV76 Interim Tier lV/3
Shipping Length
107.9''
Rear Overhang
29.1''
ROPS Width
30.9''
Ground Clearance
7.5''
Fuel Tank Capacity
7 gal.
Maximum Travel Speed
7.8 mph
Tire Size - Standard
27 x 10.50-15
Power @ 2800 Rpm
23.9 hp
Wheel Radius
12.8''
