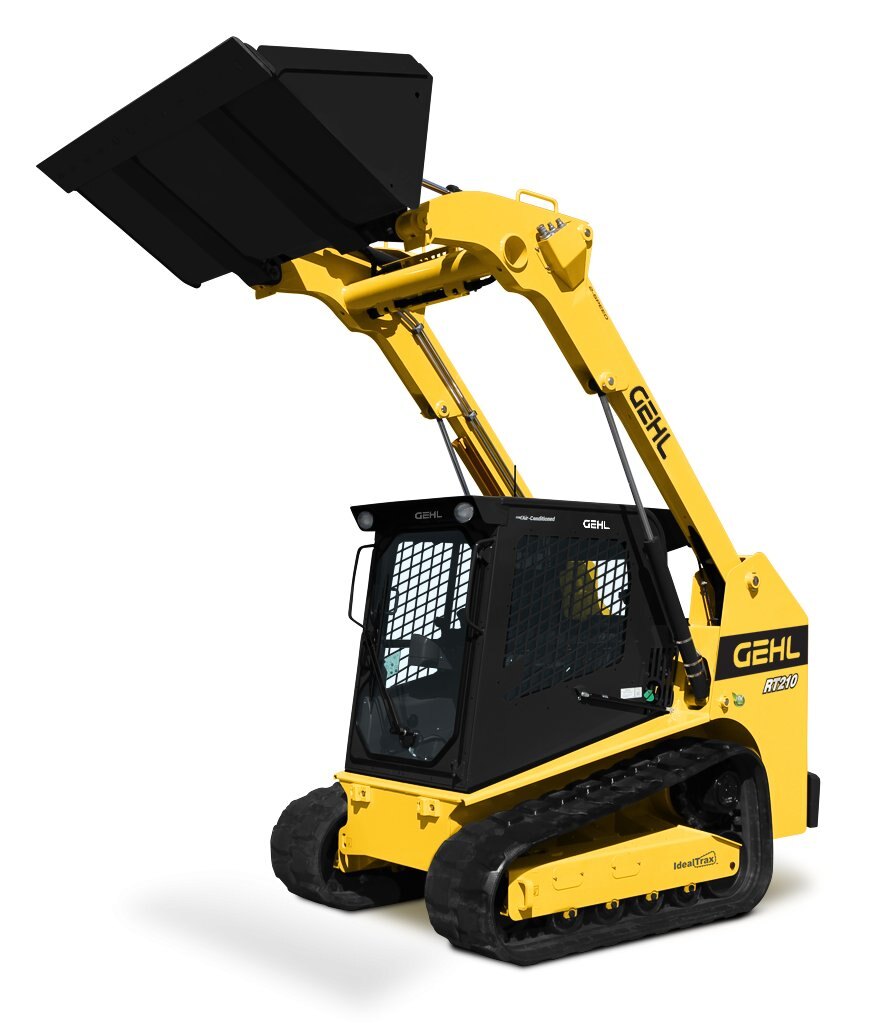

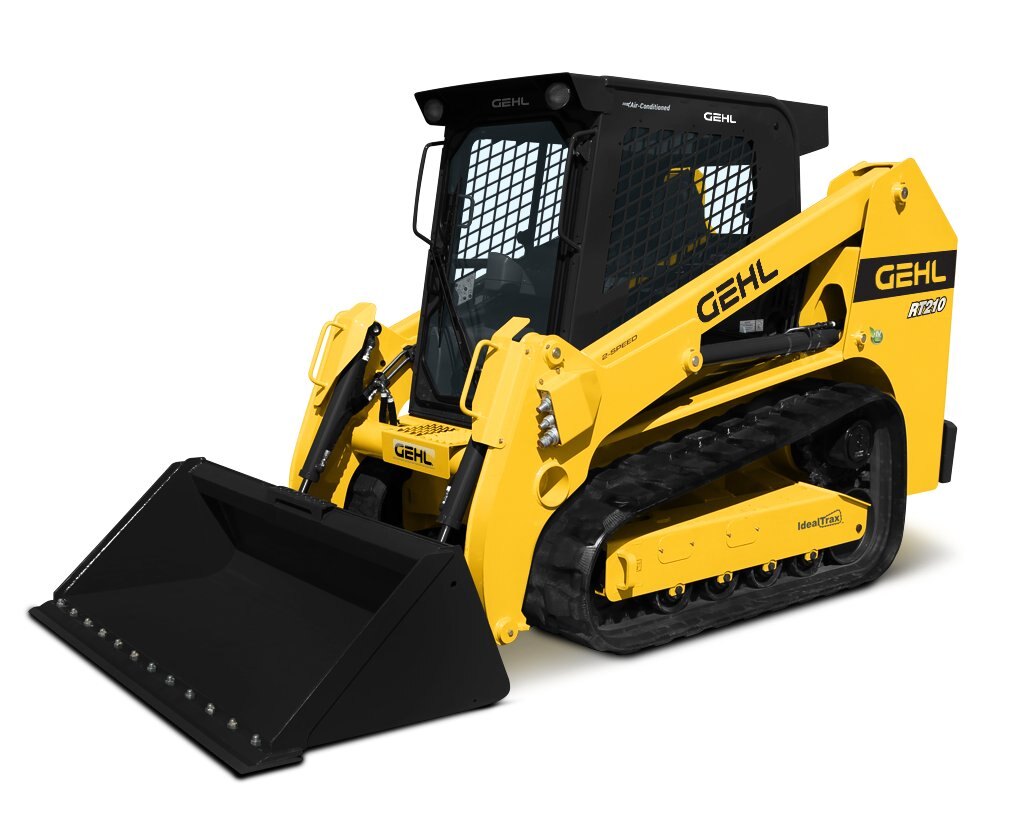

The Gehl RT210 GEN:3 Compact Track Loader was designed from the ground up...

• Tier IV-certified Yanmar diesel engines provide 72 hp (53.7 kW)
• Designed from the ground up, the welded chassis aids in superior weight distribution, which further enhances stability, grading, tractive effort and provides a smoother ride.
• Flush rear door and angled rear towers provide tight rear clearance radius and excellent visibility.
• Optional rear bumper/counterweight provides additional protection and towing capability.
• Thick steel plating and heavy-duty pins and bushing strengthen the loader for extreme-duty work.
• Electronic engine control and foot throttle allow operation at partial throttle, reducing sound levels and fuel consumption.

• Height to Hinge Pin - Fully Raised (mm)     :    128" (3251)

 The extra-large, state-of-the art operator’s station on the RT210 GEN:3 Track Loader is designed for optimal operator comfort resulting in more productivity.

• Cab forward design enhances the view to the bucket.
• Level II FOPS is standard equipment.
• New, side-folding restraint bars and armrests with multiple adjustments enhance operator safety and comfort.
• Fully adjustable controls mounted to a standard mechanical suspension seat or an optional air-ride seat deliver outstanding comfort and precision control by moving with the operator during operation.
• Complicated gauges and cluttered dash readouts are eliminated with a customizable, easy-to-use multi-function display that incorporates all warning/operation lights and machine configuration screens.
• Optional pressurized sealed cab enclosure with heat/AC, sound reduction material and rear-mounted air filter provide a comfortable, clean and quiet operating environment.

 Controls on the RT210 GEN:3 Compact Track Loaders are ergonomically designed to reduce operator fatigue, increase productivity and improve versatility.

• Optional electronic attachment control - 14-pin connector that allows operation of all attachments.
• Electro-hydraulic joystick controls provide the ultimate in operator comfort and controllability. They are also not affected during cold weather operation.
• Hydraloc™system applies the parking brake whenever the operator raises the restraint bars, leaves the operator's seat, open the door or switches off the ignition.
• Standard, selectable 2-speed drive motors, horn and backup alarm.
• Optional speed control adds ability to tailor machine operating speeds to application, independent of engine rotation.
• Standard ISO drive pattern, optional selectable ISO and dual hand (H-pattern) controls.
• Multi-purpose LCD display provides easy readout during operation.
• Single button allows simple scrolling and selection of various display functions.
• Standard Drive Sensitivity Adjustment offers five settings that change five parameters to suit operator preference, skill and application requirements. Adjustable settings include:
  -Joystick Sensitivity
  -Position Reaction
  -Engine Response
  -AntiStall
• Optional HydraGlide™ system allows the lift arm to "float" when transporting loads, minimizing loss of material and providing a smoother ride at faster transport speeds.

The RT210 GEN:3 Compact Track Loader hydraulic system is engineered to push more material, lift heavier loads and power demanding attachments.

• Standard and optional high-flow auxiliary hydraulics are designed to handle virtually every flow/high performance attachment.
• New cast-iron pump design delivers efficient flow at higher temperatures.
• Lift cylinders incorporate cushioning for smoother operation when lowering the lift arm.
• Electro-hydraulic controlled hydrostatic transmission with direct engine coupling provides high operating efficiency while AntiStall technology keeps the power flowing.
• Power track drive motors deliver superior pushing power.
• Auxiliary hydraulic quick couplers easily connect under pressure for fast, efficient attachment changes.

• Auxiliary Hydraulic Flow - Rated Speed (km/hr)    :   21.8 gpm (82.5)
• High-Flow Hydraulic Flow - Rated Speed (km/hr)   :    35.9 gpm (135.8)
• Transmission Pump Type   :  Axial Piston
• Motor Type   :  Axial Piston with Planetary Gear Box Reduction

The RT210 GEN:3 Compact Track Loader is available with your choice of two attachment mounting systems designed to enhance jobsite efficiency.

• All-Tach® system manually engages and disengages with a single lever.
• Power-A-Tach® system allows for attachment changes electronically at the push of a button, further enhancing jobsite productivity.
• Both systems are compatible with all universal-style track loader attachments.
