• Height to Hinge Pin - Fully Raised (mm): 123" (3124)
• Rated Operating Capacity (kg): 2,600 lbs. (1179)
• Gross Power (kW): 72 hp (53.7)

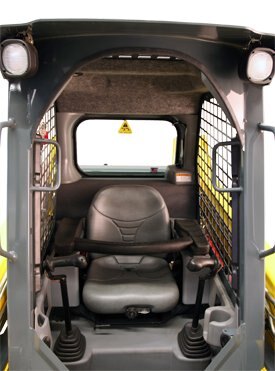

The new R260 has a spacious operator station with plenty of adjustability and enhanced comfort features that users have come to expect from Gehl.

• Large Level II ROPS/FOPS is standard equipment.
• New side-folding restraint bar and adjustable armrests enhance operator safety and comfort.
• Adjustable control pods (joystick and hand/foot configurations) and an optional air-ride seat deliver outstanding comfort.
• Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.
• Extra-large side screens combined with Gehl PowerView® low-profile lift arm design provide a wide field-of-view to the side work areas.
• Optional pressurized sealed cab enclosure with sound reduction material and rear-mounted air filter provide a cleaner, quieter, climate controlled operating environment.

The R260 is equipped with a top-of-the-line Yanmar Tier IV engine that meets emissions standards and provides the muscle needed to tackle demanding jobs with ease.

• The DPF (Diesel Particulate Filter) system provides clean emissions without the need for additional fuel after-treatment additives.
• The DPF requires regeneration to maintain optimal running conditions. This occurs passively as the machine is operated, but also requires occasional manual regeneration by the operator.
• Regeneration is intuitively managed through the digital display and a clearly labeled rocker switch.

• Make : Yanmar
• Model : 4TNV98CT-NMS Tier IV/Stage 3B
• Net Power (kW) @ rpm : 70.7 hp (52.7) @ 2500
• Maximum Torque (Nm) @ rpm : 217 ft.-lbs. (294) @ 1625
• Displacement (L) : 202.6 cu.in. (3.3)

 The R260 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.

• Impressive breakout forces deliver optimal digging and lifting performance.
• Improved cycle times increase productivity on the jobsite.
• Excellent ease of operation and proportionate flow adjustability are achieved with the auxiliary flow control rocker switch located on the control grip.
• HydraGlide™ option helps keep material in the bucket and provides a smoother ride by allowing the bucket to float when travelling over rough terrain.
• Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.

• Auxiliary Hydraulics - Standard (L/min) : 23.5 gpm (90)
• High-Flow Auxiliary Hydraulics - Option (L/min) : 35 gpm (132.5)
• Reservoir Capacity (L) : 8 gal. (30.3)

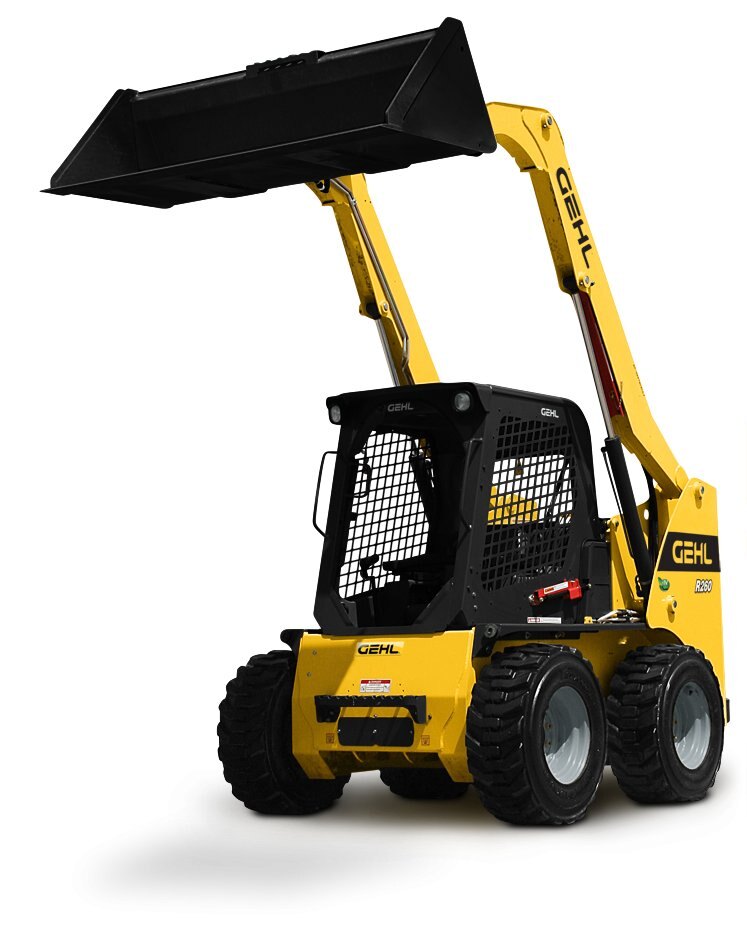

 The R260 is built with a robust, radial lift arm that incorporates performance and durability.

• Radial lift path offers enhanced performance in excavating, grading and digging below grade applications.
• Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.
• Over the tire design provides wider access.
• Gehl PowerView® low-profile boom design offers optimal side-to-side visibility.

Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

• Oversized engine hood and rear door opens completely, exposing engine components and daily maintenance points.

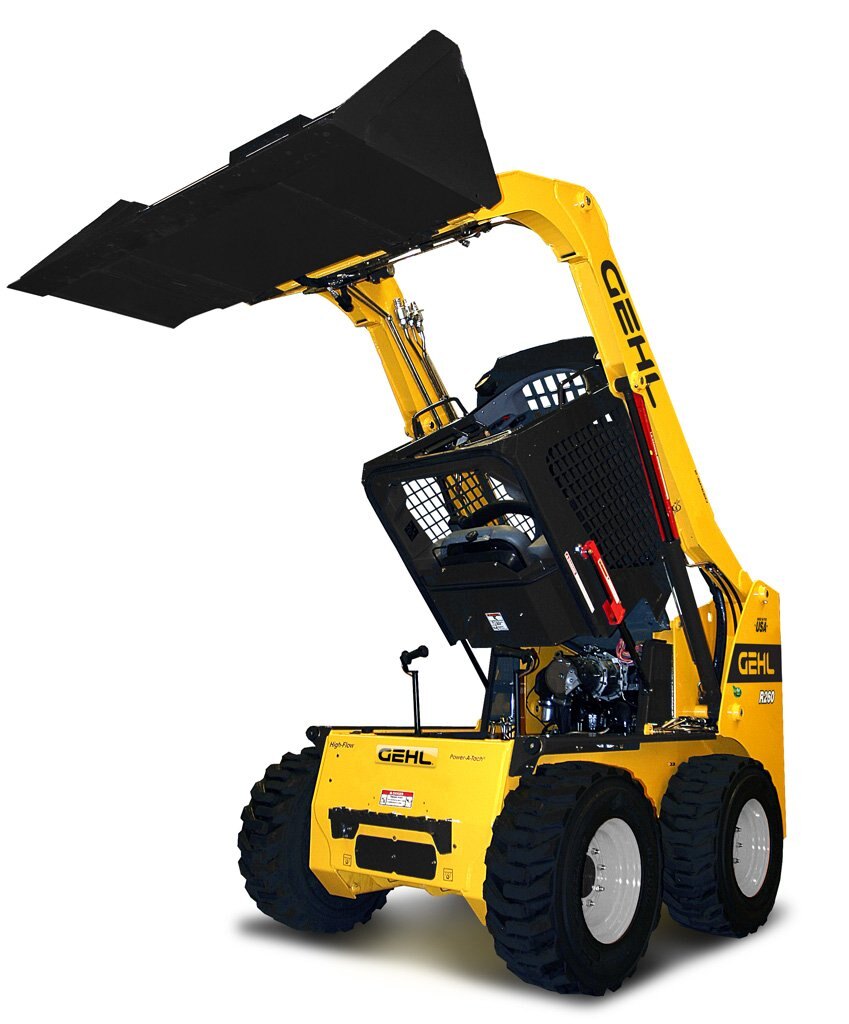

• ROPS/FOPS tilts up with the aid of gas struts for access to hydraulic components.
• Drive chains and axle bearings are sealed systems that require no maintenance.
• All high-rotation pins have grease points for ease of maintenance.
• Features such as the remote oil drain and filter provide simple and easy maintenance access.
