• Height to Hinge Pin - Fully Raised (mm): 119" (3023)
• Rated Operating Capacity (kg): 1,500 lbs. (680)
• Gross Power (kW): 46.3 hp (34.5)

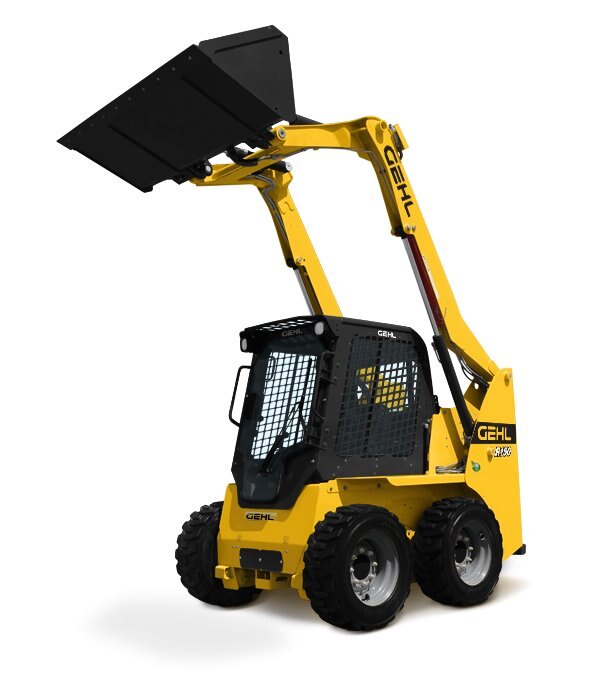

The demand for a Gehl 1,500 lbs. (680 kg) capacity skid loader has been fulfilled with the introduction of the R150

- Net Power (kW) : 44.5 hp (33)

- Maximum Torque (Nm) : 107.8 ft.-lbs. (146)

- Rated Operating Capacity (kg) : 1,500 lbs. (680)

 The R150 features a new, state-of-the-art, fully-adjustable operator's cab.

• Sound reduction material within the cab suppresses outside noise for a quieter operator environment.
• A front-lifting restraint bar with integrated armrests provides personalized comfort and increased safety.
• Standard high-back adjustable seat and optional air-ride suspension seat or mechanical suspension seat provide enhanced, all-day comfort.
• Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.
• Hydraloc™ System - Brakes and hydraulics are applied automatically whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.
• Creature comforts include automatic dome light, cup holder, 12-volt outlet, storage tray and multiple adjustable air vents.

The R150 is equipped with an all-new Yanmar Tier IV naturally-aspirated diesel engine.

• Automatic glow plug heating system provides superior cold-weather starting.
• After treatment meets all Tier IV requirements through proven technology.
• Make : Yanmar
• Model : 4TNV88C-KMS
• Net Power (kW) @ rpm  : 46.3 hp (34.5) @ 2800
• Maximum Torque (Nm) @ rpm : 107.8 ft.-lbs. (146 Nm) @ 1820
• Displacement (L) :      133.6 cu.in. (2.19)

The R135 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.

• Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.
• Attachments changes are clean and easy with flat-faced quick couplers that allow for changes by hand instead of tools.
• Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
• Auxiliary Hydraulics - Standard (L/min) : 17 gpm (64.4)
• High-Flow Auxiliary Hydraulics - Option (L/min) : N/A
• Reservoir Capacity (L) : 11 gal. (41.6)

The R150 features an all-new low-profile lift arm.

• 42% more visibility with new low-profile lift arm.
• Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.

 Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

• Large engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.
• Swing-out rear door easily opens on hinges, allowing full access to filters and fluid reservoirs, for servicing and maintenance.
• All-new swing-out cooler provides improved access to the engine bay area.
• Entire ROPS/FOPS assembly tilts rearward with a gas-spring assist for easy internal access to the pumps, hydraulic valve bank and drive motors.
• All-new cab safety restraint & pull cord safely holds ROPS/FOPS in raised position.
• Removable plate for easy cleanout of foot area inside ROPS/FOPS
