• Height to Hinge Pin - Fully Raised (mm): 110" (2794)
• Rated Operating Capacity (kg): 1,350 lbs. (612)
• Net Power (kW): 46 hp (34)

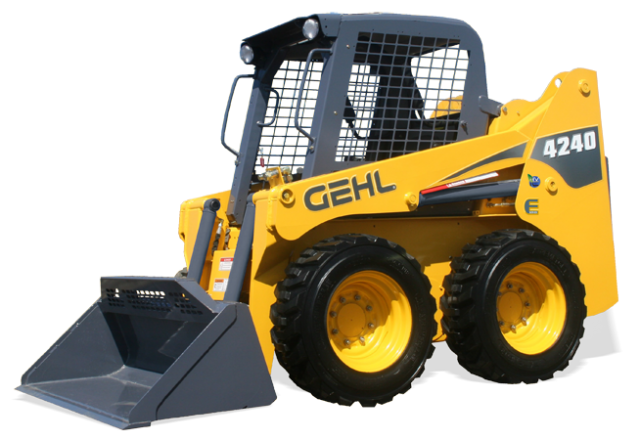

The 4240E Skid Loader is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.

• Longer wheelbase and a low center-of-gravity offer a smooth, stable ride.
• Hydraloc™ automatic interlock system locks lift, tilt and drive systems when the operator leaves the seat, increasing operator safety. System also engages when the restraint bar is raised or the ignition switch is turned off.
• Lift arm hydraulic tubes are concealed and protected from the work environment.
• Rated operating load can be readily increased with the addition of a counterweight.

A large operator’s compartment with clear front, side and rear sight lines provides operators full, expansive views for increased safety.

• ROPS/FOPS Level II is standard for extra operator protection.
• Roof grid section and window provide excellent bucket visibility at full height.
• Adjustable operator restraint bar offers secondary protection and serves as a padded armrest.
• Lockout system shuts down lift/tilt functions when optional front door is opened.
• T-bar “hands-only,” hand-foot controls match any operator’s preference.

Ergonomic controls in the 4240E Skid Loader provide smooth loader and attachment operation.

• Hand and foot throttle are standard equipment, providing quieter operation and less fuel consumption
• T-Bar hands-only drive control system

Advanced, high-powered, naturally aspirated Yanmar engine with auto-shutdown systems and grid heater starter assists to aid in cold weather starting.

Exceptional hydraulics of 16.5 gpm power a wide variety of attachments and produce outstanding attachment performance on the 4240E.
