ID # 13224892

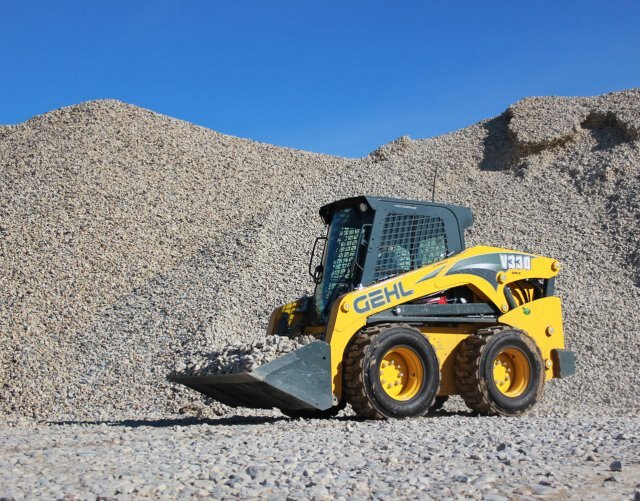

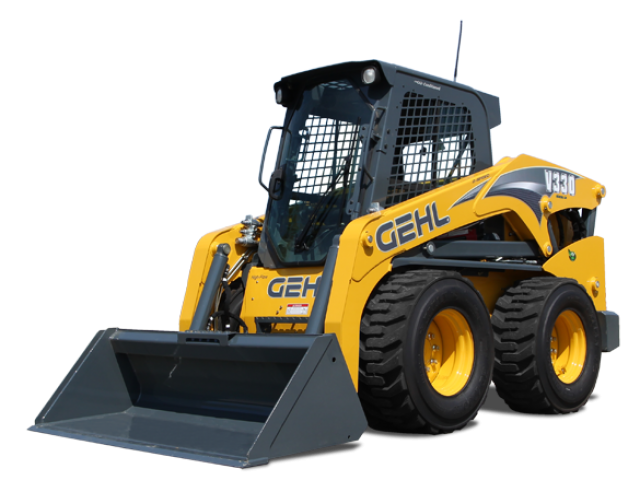

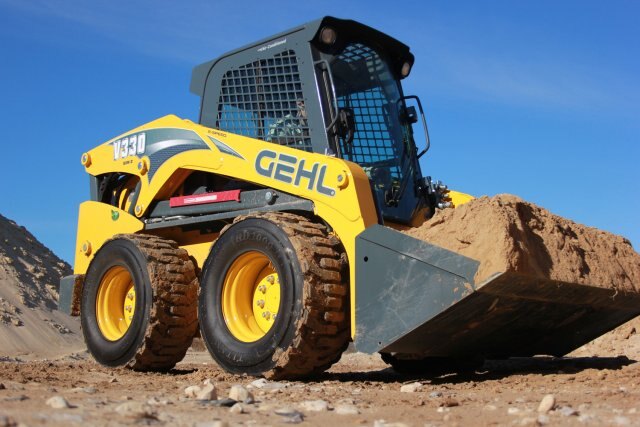

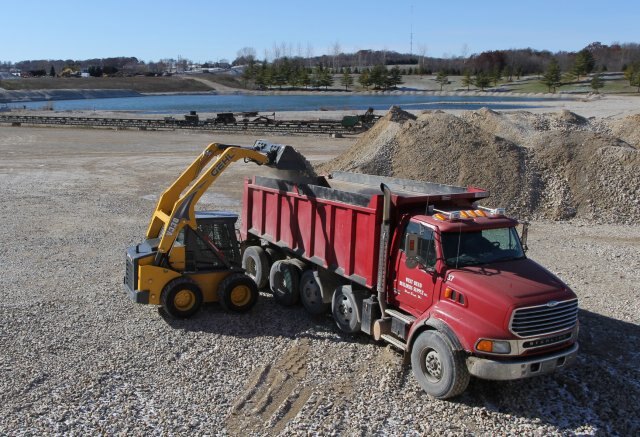

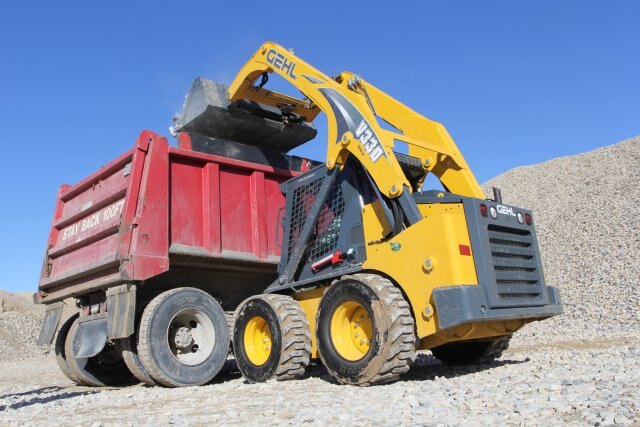

Gehl V330 GEN:2 Vertical-Lift Skid Loader

  • Gehl V330 GEN:2 Vertical Lift Skid Loader
  • Gehl V330 GEN:2 Vertical Lift Skid Loader
  • Gehl V330 GEN:2 Vertical Lift Skid Loader
  • Gehl V330 GEN:2 Vertical Lift Skid Loader
  • Gehl V330 GEN:2 Vertical Lift Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

    Height to Hinge Pin - Fully Raised (mm): 131.2" (3332)
    Rated Operating Capacity (kg): 3,300 lbs. (1497)
    Power (kW): Net 70.7 hp (52.7)

  Features

 Performance

The Gehl V330 GEN:2 skid loader is a shining example of Gehl’s superior innovation and well thought-out product development.

Operator's Cabin

The operator’s compartment on the V330 GEN:2 skid loader provides a safe and comfortable working environment for operators of all sizes.

Controls

Controls on the Gehl V330 GEN:2 skid loader are ergonomically designed to reduce operator fatigue and increase productivity.
Engine
Emissions certified Tier IV engines combine power and efficiency on the V330 GEN:2 model.

Hydraulics

When maximum hydraulic power is needed to run demanding attachments, the V330 skid loader is equipped with the tools to get the job done right.

Lift Arm

The V330 GEN:2 skid loader vertical-lift arm design was created for maximum reach, superior strength and optimal operator visibility.
Serviceability
At Gehl we know ease of serviceability is very important to our customers. The model V330 GEN:2 skid loader is sure to exceed their expectations.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their V330 GEN:2 the most versatile machine on the job site. Popular attachments are listed below.

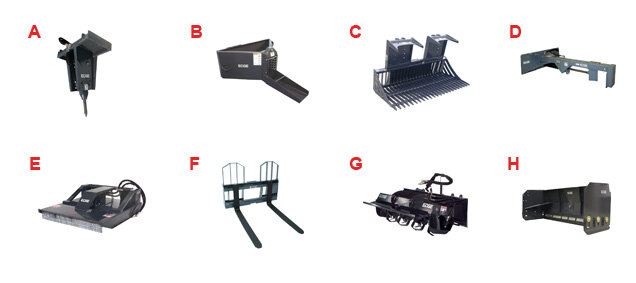

Edge Attachments for Gehl 1640E Skid Steer Loader
A     Breaker
B     Concrete Tools
C     Grapples
D     Log Splitters
E     Mower, Rotary
F     Pallet Forks
G     Roto Tiller
H     Snow Removal



Specifications
Model
V330 GEN:2 Vertical-Lift Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
172''
Height To Hinge Pin Fully Raised
131.2''
Overall Height To Top Of ROPS
82.1''
Ground Clearance To Chassis
9.0''
Overall Length W Bucket
152.3''
Overall Length W O Bucket
119
Wheelbase
49.5
Rollback At Ground
29°
Dump Angle
42°
Overall Width
72''
Bucket Widths
74''
Clearance Circle Rear
69.5''
Clearance Circle Front W O Bucket
56''
Clearance Circle Front W Bucket
94.5''
Seat To Ground Height
41''
Dump Height
98.5''
Departure Angle
25°
Standard Specification Tire Size
14.00 - 17.5 HD
Make
Yanmar
Model
4TNV98CT-NMS Tier IV
Net Power @ Rpm
70.7 hp @ 2500
Maximum Torque
217 ft.-lbs. @ 1625
Displacement
202.5 cu.in.
Auxiliary Hydraulics Standard
23.5 gpm
High Flow Auxiliary Hydraulics Option
35 gpm
Reservoir Capacity
10.5 gal.
Rated Operating CapacityB
3,300 lbs.
Fuel Tank
19 gal.
Travel Speed Maximum
8.1 mph
Travel Speed With Two Speed Option Maximum
12.2 mph
Operating WeightC Approximate
9,090 lbs.
Rollback At Specified Height
94°
Gross Power @ 2500 Rpm
72 hp @ 2500
