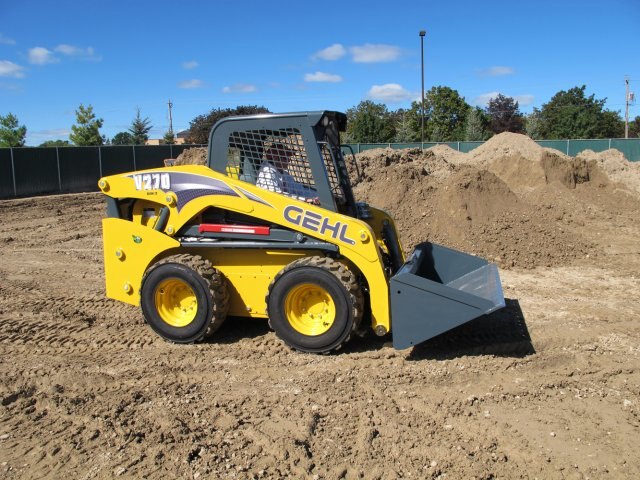

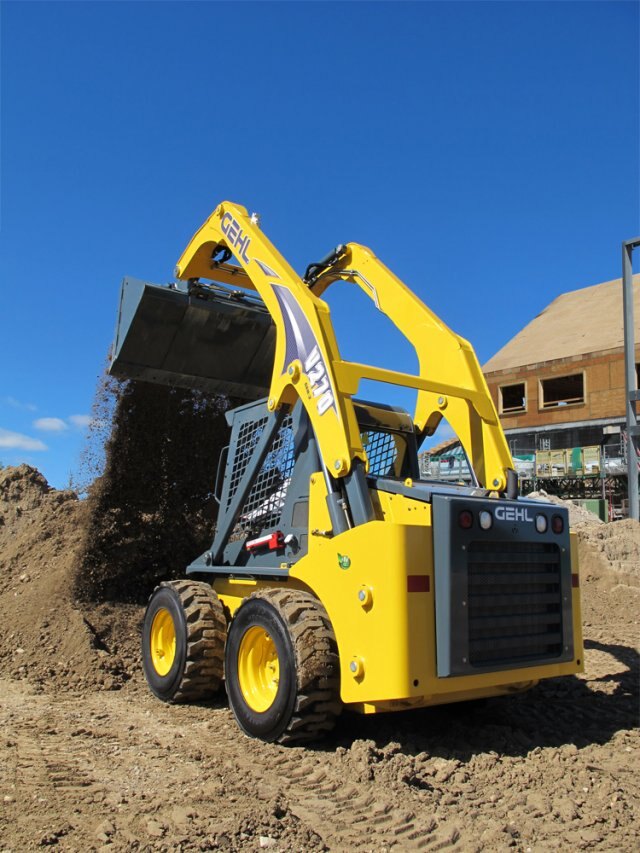

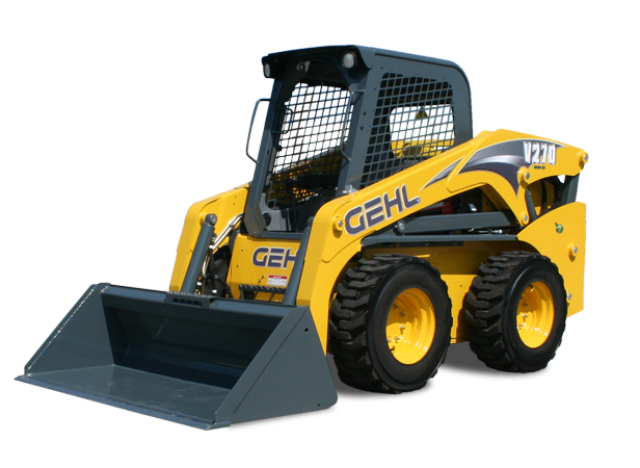

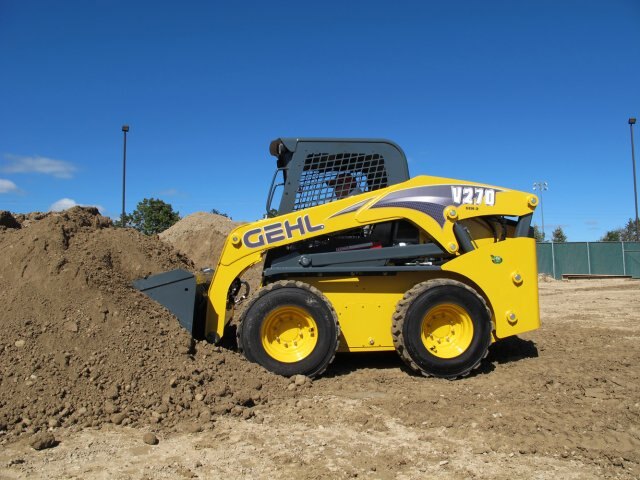

Gehl V270 GEN:2 Vertical-Lift Skid Loader

  • Gehl V270 GEN:2 Vertical Lift Skid Loader
  • Gehl V270 GEN:2 Vertical Lift Skid Loader
  • Gehl V270 GEN:2 Vertical Lift Skid Loader
  • Gehl V270 GEN:2 Vertical Lift Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

    Height to Hinge Pin - Fully Raised (mm): 130.3" (3310)
    Rated Operating Capacity (kg): 2,700 lbs. (1225)
    Power (kW): 70.7 hp (52.7)

  Features

 Performance

The V270 GEN:2 Skid Loader is a product of superior innovation and well thought-out product development.
Operator's Cabin
The spacious operator’s compartment on the V270 GEN:2 Skid Loader is every operator’s dream.

Controls

The Gehl V270 GEN:2 Skid Loader is ergonomically designed to reduce operator fatigue and increase productivity.
Engine
Emissions certified Tier IV engines combine power and efficiency on the V270 GEN:2 model.

Hydraulics

When maximum hydraulic power is needed to run demanding attachments, the V270 GEN:2 Skid Loader is equipped with the tools to get the job done right.

Lift Arm

The V270 GEN:2 Skid Loader does not use the ordinary vertical-lift design. This loader’s lift arm is designed with the operator in mind.
Serviceability
As with any Gehl loader, serviceability on the V270 GEN:2 Skid Loader is a snap.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their V270 GEN:2 the most versatile machine on the job site. Popular attachments are listed below

Edge Attachments for Gehl 1640E Skid Steer Loader
A     Augers
B     Bale Movers
C     Mini-Backhoes
D     Pallet Forks
E     Rakes
F     Silage Defacer
G     Stump Removal Bucket
H     Trenchers



Specifications
Model
V270 GEN:2 Vertical-Lift Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
167.4''
Height To Hinge Pin Fully Raised
130.3''
Overall Height To Top Of ROPS
81''
Ground Clearance To Chassis
8.0''
Overall Length W Bucket
148''
Overall Length W O Bucket
116.5''
Wheelbase
49.5''
Rollback At Ground
29°
Dump Angle
42°
Overall Width
69.5''
Bucket Widths
70''
Clearance Circle Rear
65.5''
Clearance Circle Front W O Bucket
56''
Clearance Circle Front W Bucket
90''
Seat To Ground Height
40''
Rollback At Full Height
94°
Dump Height
100''
Departure Angle
25°
Standard Specification Tire Size
12.00 - 16.5 HD
Make
Yanmar
Model
4TNV98CT-NMS Tier IV
Net Power @ Rpm
70.7 hp @ 2500
Maximum Torque
217 ft.-lbs. @ 1625
Displacement
202.6 cu.in.
Auxiliary Hydraulics Standard
23.5 gpm
High Flow Auxiliary Hydraulics Option
35 gpm
Reservoir Capacity
10.5 gal.
Rated Operating CapacityB
2,700 lbs.
Fuel Tank
19 gal.
Travel Speed Maximum
7.4 mph
Travel Speed With Two Speed Option Maximum
11.9 mph
Operating WeightC Approximate
8,150 lbs.
Gross Power @ 2500 Rpm
72 hp @ 2500
