gehl

ID # 13224650

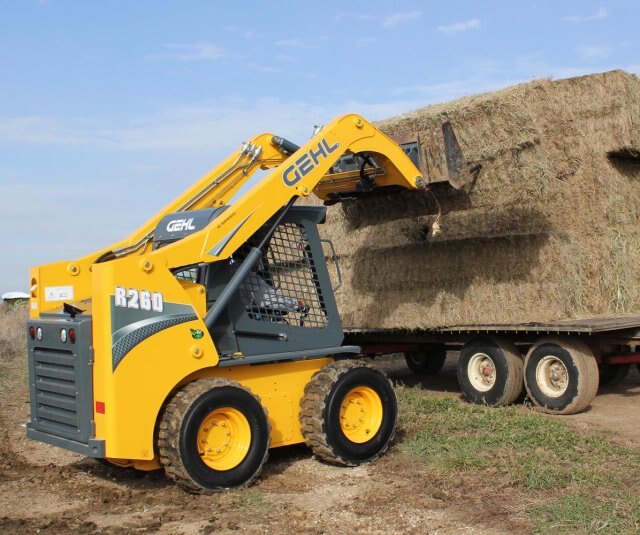

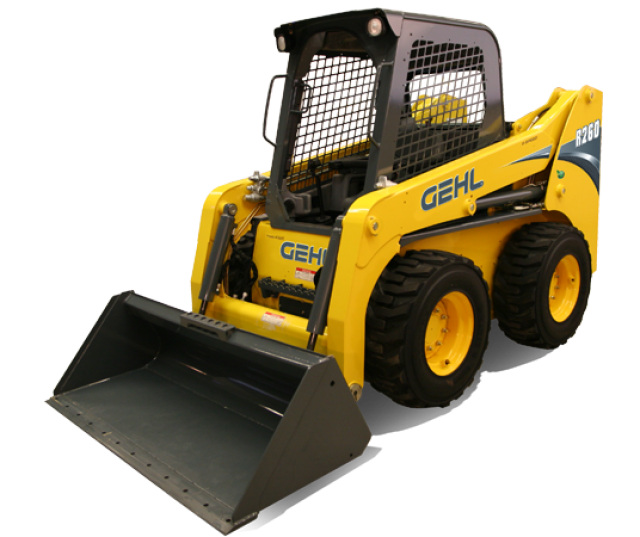

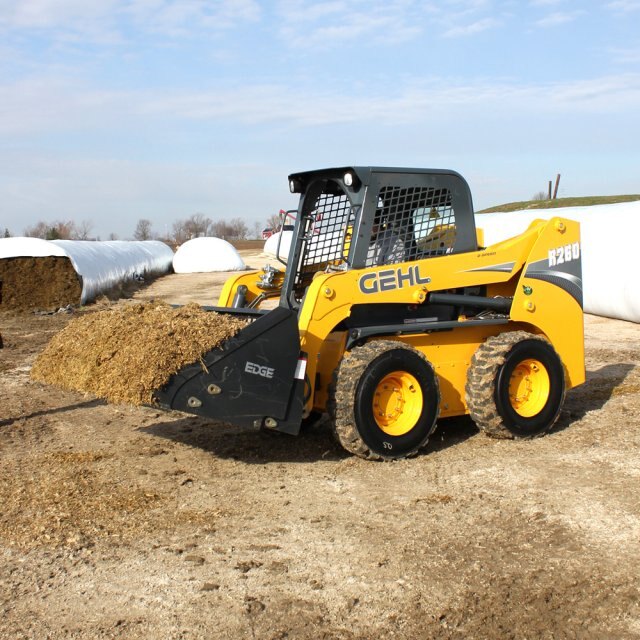

Gehl R260 Skid Loader

Call for Price
Overview
    Height to Hinge Pin - Fully Raised (mm): 123" (3124)
    Rated Operating Capacity (kg): 2,600 lbs. (1179)
    Gross Power (kW): 72 hp (53.7)
  Features

Performance

With over 40 years of skid loader manufacturing experience, Gehl has taken performance to the next level with the R260 Skid Loader.

Operator's Cabin

The R260 has spacious operator stations with plenty of adjustability and enhanced comfort features that users have come to expect from Gehl.

Controls

Controls on the R260 incorporates intuitive design, state-of-the-art technology and plenty of options to suit the preference of any operator.

Engine

The R260 is equipped with a top-of-the-line Yanmar Tier IV engine that meets emissions standards and provides the muscle needed to tackle demanding jobs with ease.

Hydraulics

The R260 Skid Loader has an amped-up hydraulic system which incorporate intuitive design for precise controllability.

Lift Arm

The R260 is built with a robust, radial lift arm that incorporates performance and durability.

Serviceability

Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their R260 the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Tree Shears
B     High Dump Bucket
C     Augers
D     Bale Movers
E     Pallet Forks
F     Mower, Rotary
G     Skeleton Rock Bucket
H     Stump Grinders



Specifications
Model
R260 Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
161''
Height To Hinge Pin Fully Raised
123''
Overall Height To Top Of ROPS
81''
Ground Clearance To Chassis
8''
Overall Length W Bucket
143'' with 70'' Bucket
Overall Length W O Bucket
111.5''
Wheelbase
49.5''
Dump Reach At Full Height
27''
Rollback At Ground
28°
Dump Angle
40°
Overall Width
69.5''/65.5''A
Bucket Widths
70''
Clearance Circle Rear
64''
Clearance Circle Front W O Bucket
56''
Clearance Circle Front W Bucket
90''
Seat To Ground Height
40''
Dump Height
94''
Departure Angle
25°
Standard Specification Tire Size
12.00 x 16.5 HD
Make
Yanmar
Model
4TNV98CT-NMS Tier IV
Net Power @ Rpm
70.7 hp
Maximum Torque
206 ft.-lbs. @ 1625
Displacement
202.6 cu.in.
Auxiliary Hydraulics Standard
23.5 gpm
High Flow Auxiliary Hydraulics Option
35 gpm
Reservoir Capacity
8 gal.
Battery
12-volt
Starter
12-volt
Alternator
95-amp
Rated Operating CapacityB
2600 lbs.
Rated Operating Capacity With Optional CounterweightB
2780 lbs.
Fuel Tank
21.5 gal.
Travel Speed Maximum
8.0 mph
Travel Speed With Two Speed Option Maximum
11.9 mph
Operating WeightC Approximate
8200 lbs.
Rollback At Specified Height
95°
Gross Power @ 2500 Rpm
72 hp
