ID # 13224641

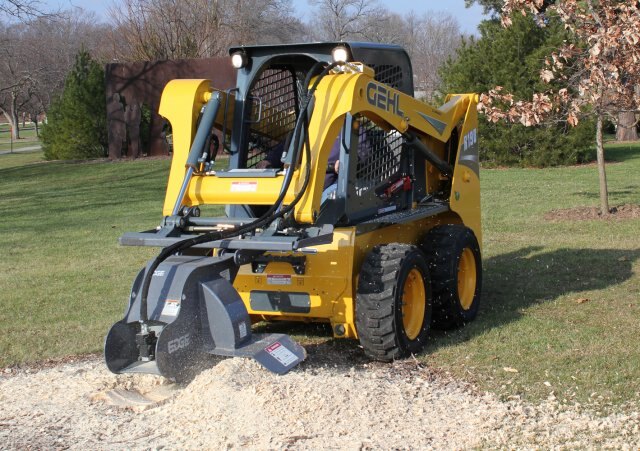

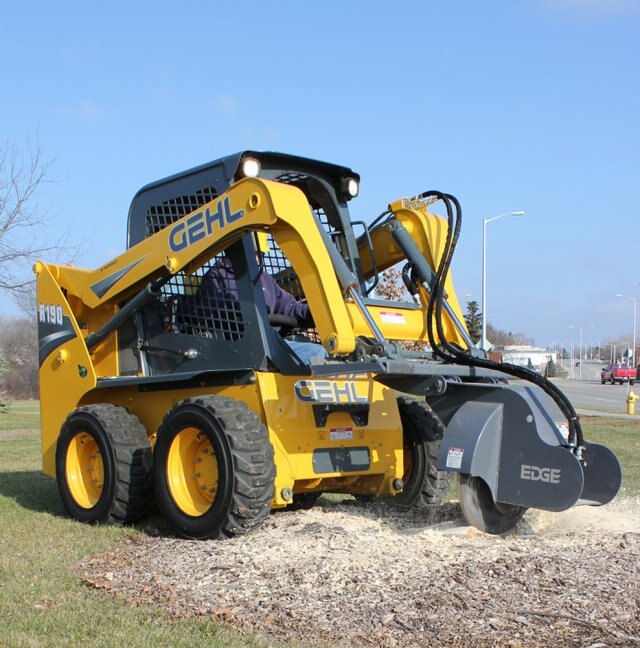

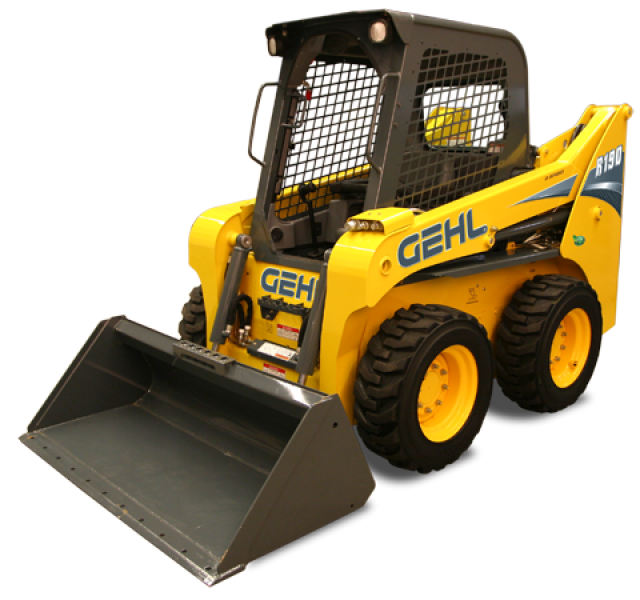

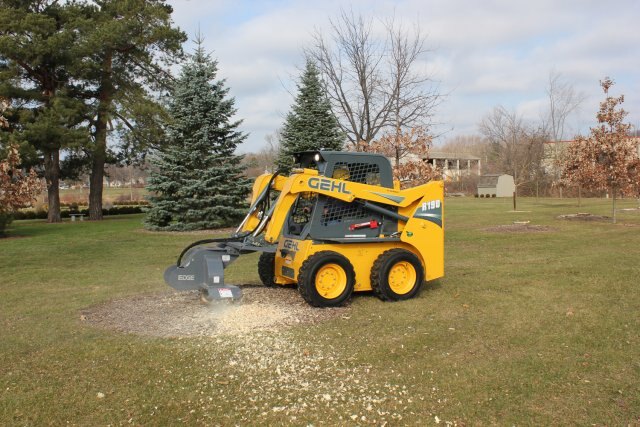

Gehl R190 Skid Loader

  • Gehl R190 Skid Loader
  • Gehl R190 Skid Loader
  • Gehl R190 Skid Loader
  • Gehl R190 Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
    Height to Hinge Pin - Fully Raised (mm): 120.5" (3061)
    Rated Operating Capacity (kg): 1,900 lbs. (862)
    Gross Power (kW): 69.3 hp (51.7)
  Features

 Performance

With over 40 years of skid loader manufacturing experience, Gehl has taken performance to the next level with the R190 Skid Loader.
Operator's Cabin
The new R190 has a spacious operator station with plenty of adjustability and enhanced comfort features that users have come to expect from Gehl.

Controls

Controls on the R190 incorporate intuitive design, state-of-the-art technology and plenty of options to suit the preference of any operator.
Engine
The R190 is equipped with a top-of-the-line Yanmar Tier IV engine that meets emissions standards and provides the muscle needed to tackle demanding jobs with ease.

Hydraulics

The R190 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.

Lift Arm

The R190 is built with a robust, radial lift arm that incorporates performance and durability.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their R190 the most versatile machine on the job site. Popular attachments are listed below.

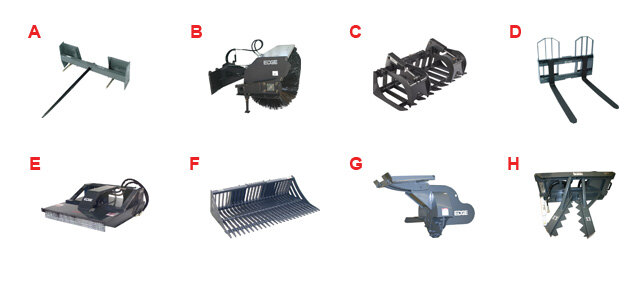

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Bale Movers
B     Brooms
C     Grapples
D     Pallet Forks
E     Mower, Rotary
F     Skeleton Rock Bucket
G     Stump Grinders
H     Tree Puller/Grabbing Tool




Specifications
Model
R190 Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
158''
Height To Hinge Pin Fully Raised
120.5''
Overall Height To Top Of ROPS
80''
Ground Clearance To Chassis
6.5''
Overall Length W Bucket
127'' with 66'' Bucket
Overall Length W O Bucket
94''
Wheelbase
42''
Dump Reach At Full Height
22.5''
Rollback At Ground
26°
Dump Angle
42°
Overall Width
66.5''/64.5''A
Bucket Widths
66''
Clearance Circle Rear
58.5''
Clearance Circle Front W O Bucket
44.5''
Clearance Circle Front W Bucket
79''
Seat To Ground Height
39''
Rollback At Full Height
96''
Dump Height
91''
Departure Angle
25°
Standard Specification Tire Size
10.00 x 16.5 HD
Make
Yanmar
Model
4TNV98C-NMS Tier IV
Net Power @ Rpm
68.4 hp
Maximum Torque
173 ft.-lbs @ 1625
Displacement
202.6 cu.in.
Auxiliary Hydraulics Standard
18.5 gpm
High Flow Auxiliary Hydraulics Option
31.5 gpm
Reservoir Capacity
8 gal.
Battery
12-volt
Starter
12-volt
Alternator
95-amp
Rated Operating CapacityB
1,900 lbs.
Rated Operating Capacity With Optional CounterweightB
2,110 lbs.
Fuel Tank
16.5 gal.
Travel Speed Maximum
7.5 mph
Travel Speed With Two Speed Option Maximum
12.5 mph
Operating WeightC Approximate
6,880 lbs.
Rollback At Specified Height
96°
Gross Power @ 2500 Rpm
69.3 hp
