ID # 13224639

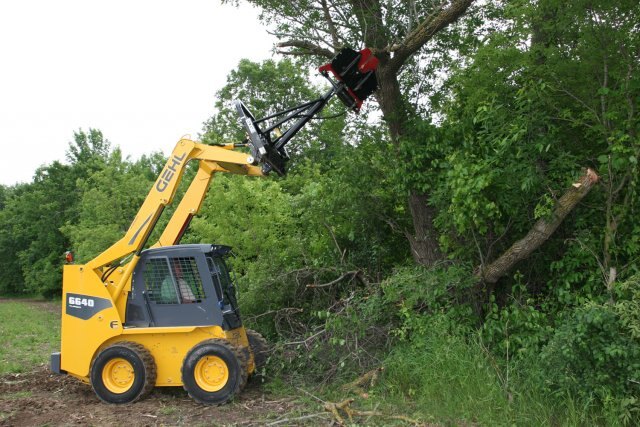

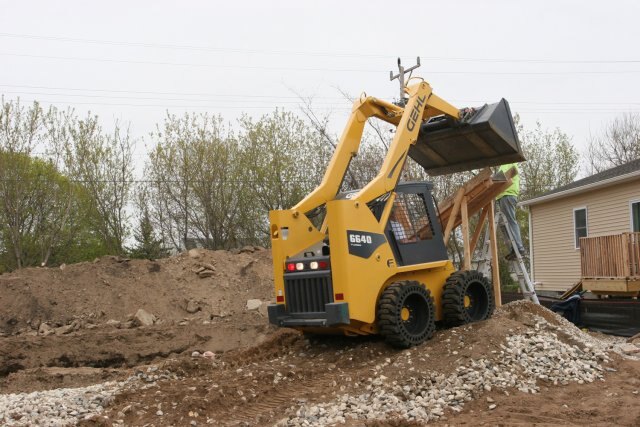

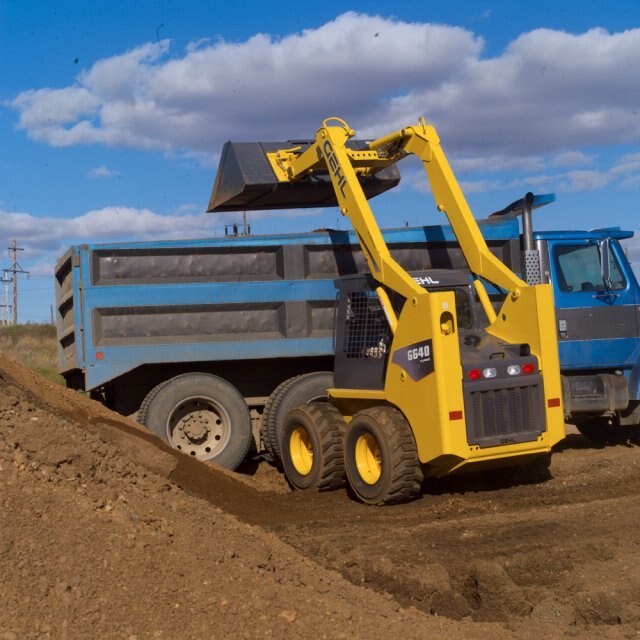

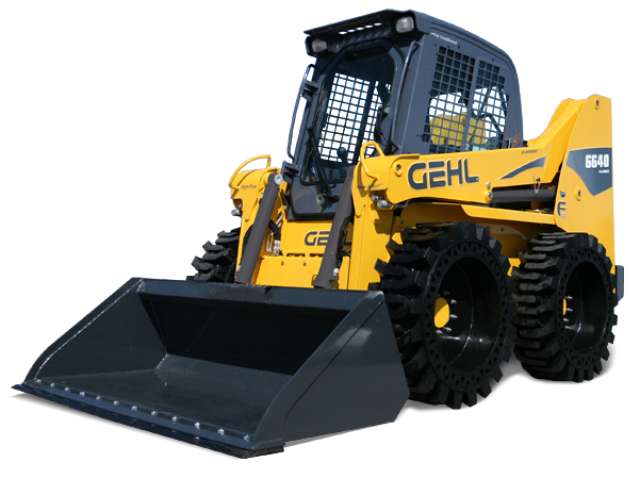

Gehl 6640E Skid Loader

  • Gehl 6640E Skid Loader
  • Gehl 6640E Skid Loader
  • Gehl 6640E Skid Loader
  • Gehl 6640E Skid Loader
  • Gehl 6640E Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
    Height to Hinge Pin - Fully Raised (mm): 124.3" (3157)
    Rated Operating Capacity (kg): 2,600 lbs. (1179)
    Net Power (kW): 70.7 hp (52.7)

  Features

 Performance

The 6640E Skid loader is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.
Operator's Cabin
Now with one of the quietest cabs in the industry, the 6640E provides a little peace and quiet on a congested job site.

Controls

Ergonomic controls in the 6640E skid loader provide smooth loader and attachment operation.
Engine
Advanced, high-powered, turbocharged Yanmar engine with auto-shutdown systems and grid heater starter assists to aid in cold weather starting.
Hydraulics
Exceptional hydraulics of 36.9 gpm (139.7 L/min) with optional high-flow power a wide variety of attachments and produce outstanding attachment performance.

Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.
Serviceability
The 6640E skid loader has an ingenious design, including low-maintenance components and easy maintenance access.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 6640E the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Augers
B     Bale Movers
C     Brooms
D     Grapples
E     Pallet Forks
F     Mower, Rotary
G     Skeleton Rock Bucket
H     Snow Removal




Specifications
Model
6640E Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
168.3''
Height To Hinge Pin Fully Raised
124.3''
Overall Height To Top Of ROPS
82.0''
Ground Clearance To Chassis
9.1''
Overall Length W Bucket
141.5'' with 74'' Bucket
Overall Length W O Bucket
105.8''
Wheelbase
48.4''
Dump Reach At Full Height
35.2''
Rollback At Ground
28°
Dump Angle
37°
Overall Width
72.5''
Bucket Widths
74'' - 90''
Clearance Circle Rear
69.0''
Clearance Circle Front W O Bucket
54.0''
Clearance Circle Front W Bucket
90.5''
Seat To Ground Height
43.3''
Rollback At Full Height
97°
Dump Height
94.8''
Departure Angle
29°
Standard Specification Tire Size
14.00 x 17.5 HD
Make
Yanmar
Model
4TNV98T Interim Tier IV
Net Power @ Rpm
70.7 hp @ 2500
Maximum Torque
206 ft.lbs. @ 1650
Displacement
203 cu.in.
Auxiliary Hydraulics Standard
21.8 gpm
High Flow Auxiliary Hydraulics Option
36.9 gpm
Filtration
12 micron
Reservoir Capacity
16 gal.
Battery
12-volt
Starter
12-volt
Alternator
95-amp
Rated Operating CapacityB
2,600 lbs.
Rated Operating Capacity With Optional CounterweightB
2,900 lbs.
Tipping Load
5,200 lbs.
Fuel Tank
24 gal.
Travel Speed Maximum
9.2 mph
Travel Speed With Two Speed Option Maximum
13.9 mph
Operating WeightC Approximate
8,740 lbs.
