ID # 13224627

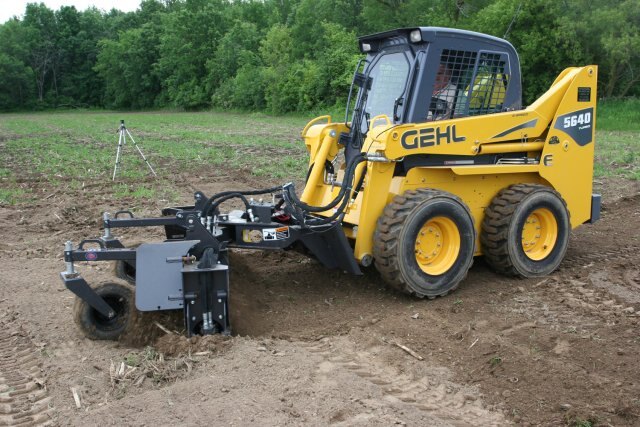

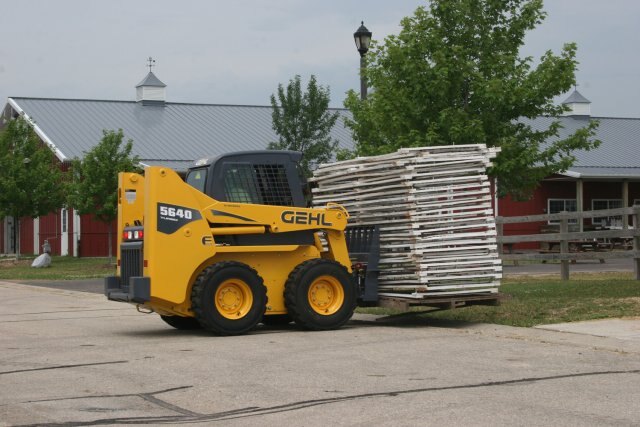

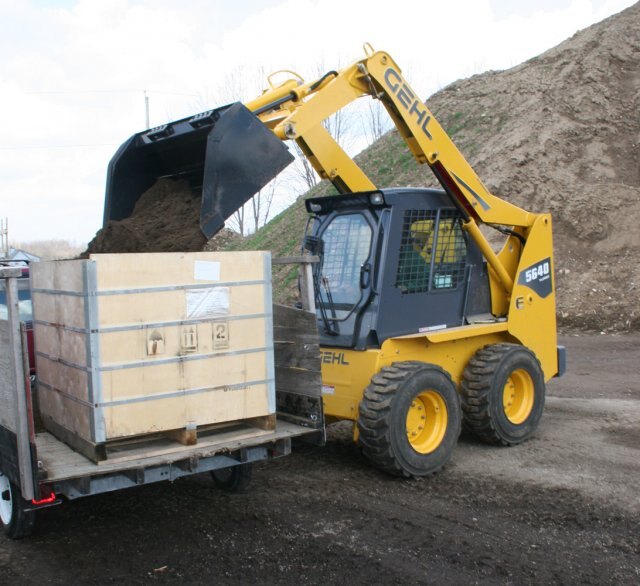

Gehl 5640E Skid Loader

  • Gehl 5640E Skid Loader
  • Gehl 5640E Skid Loader
  • Gehl 5640E Skid Loader
  • Gehl 5640E Skid Loader
  • Gehl 5640E Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
    Height to Hinge Pin - Fully Raised (mm): 123" (3124)
    Rated Operating Capacity (kg): 2,200 lbs. (998)
    Net Power (kW): 70.7 hp (52.7)

  Features

 Performance

The 5640E skid loader is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.
Operator's Cabin

Now with one of the quietest cabs in the industry, the 5640E provides a little peace and quiet on a congested job site.

Controls

Ergonomic controls in the 5640E skid loader provide smooth loader and attachment operation.
Engine
Advanced, high-powered, turbocharged Yanmar engine with auto-shutdown systems and grid heater starter assists to aid in cold weather starting.
Hydraulics
Exceptional hydraulics of 36.9 gpm (139.7 L/min) with optional high-flow power a wide variety of attachments and produce outstanding attachment performance.

Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.
Serviceability
The 5640E skid loader has an ingenious design, including low-maintenance components and easy maintenance access.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 5640E the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Augers
B     Bale Movers
C     Brooms
D     Grapples
E     Pallet Forks
F     Mower, Rotary
G     Skeleton Rock Bucket
H     Snow Removal



Specifications
Model
5640E Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
162''
Height To Hinge Pin Fully Raised
123''
Overall Height To Top Of ROPS
81.0''
Ground Clearance To Chassis
8.0''
Overall Length W Bucket
131'' with 70'' Bucket
Overall Length W O Bucket
100.5''
Wheelbase
42.5''
Rollback At Ground
28°
Dump Angle
37°
Overall Width
69.0''
Bucket Widths
70'' - 90''
Clearance Circle Rear
66.0''
Clearance Circle Front W O Bucket
50.5''
Clearance Circle Front W Bucket
82.0''
Seat To Ground Height
42.0''
Dump Height
93.5''
Departure Angle
26°
Standard Specification Tire Size
12.00 x 16.5 HD
Make
Yanmar
Model
4TNV98T Interim Tier IV
Net Power @ Rpm
70.7 hp @ 2500
Maximum Torque
206 ft.lbs. @ 1650
Displacement
203 cu.in.
Auxiliary Hydraulics Standard
21.8 gpm
High Flow Auxiliary Hydraulics Option
36.9 gpm
Filtration
12 micron
Reservoir Capacity
16 gal.
Battery
12-volt
Starter
12-volt
Alternator
95-amp
Rated Operating CapacityB
2,200 lbs.
Rated Operating Capacity With Optional CounterweightB
2,500 lbs.
Tipping Load
4,400 lbs.
Fuel Tank
19 gal.
Travel Speed Maximum
8.1 mph
Travel Speed With Two Speed Option Maximum
12.3 mph
Operating WeightC Approximate
7,610 lbs.
