ID # 13224625

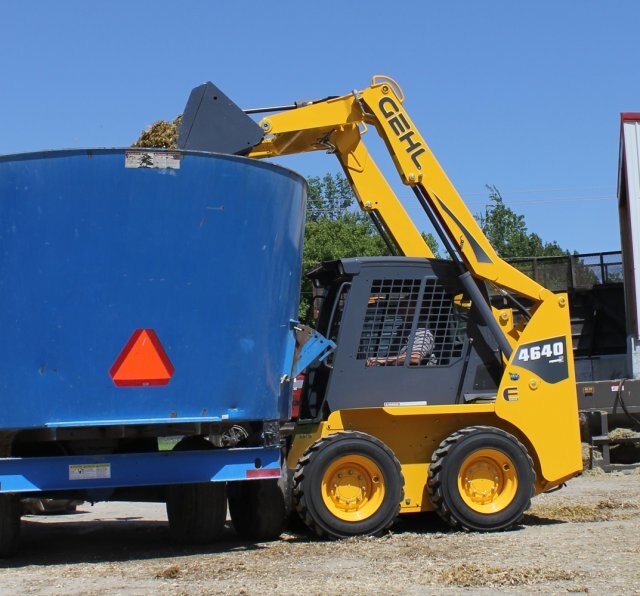

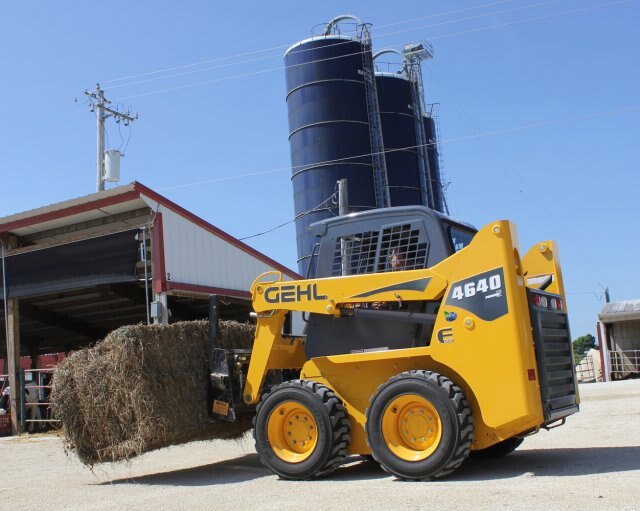

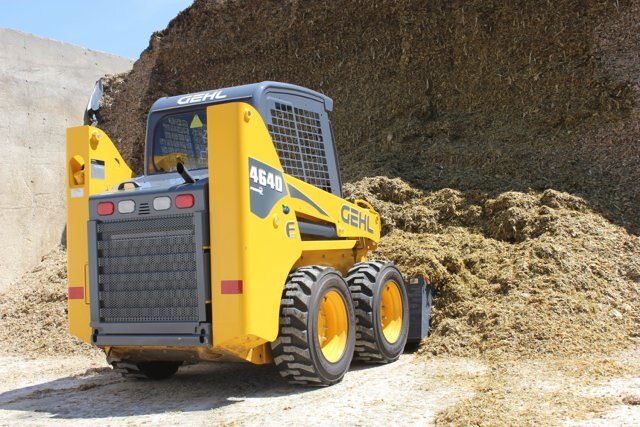

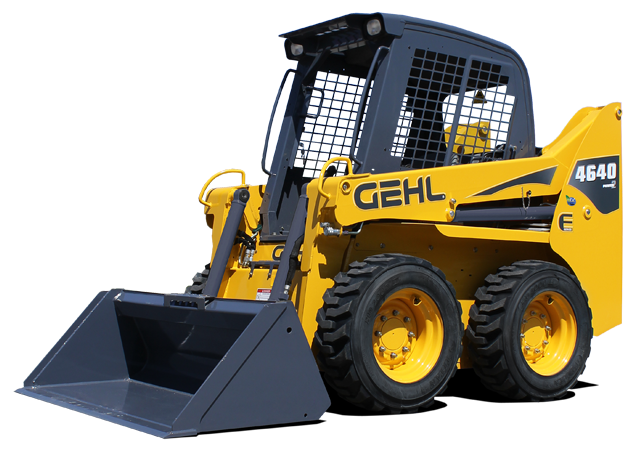

Gehl 4640E Power2 Skid Loader

  • Gehl 4640E Power2 Skid Loader
  • Gehl 4640E Power2 Skid Loader
  • Gehl 4640E Power2 Skid Loader
  • Gehl 4640E Power2 Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Height to Hinge Pin - Fully Raised (mm): 115.5" (2934)
  Rated Operating Capacity (kg): 1,650 lbs. (748)
   Net Power (kW): 68 hp (50.7)

  Features

 Performance

The 4640E Power2 skid loader is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.
Operator's Cabin

Now with one of the quietest cabs in the industry, the 4640E Power2 provides a little peace and quiet on a congested job site.

Controls

Ergonomic controls in the 4640E Power2 skid loader provide smooth loader and attachment operation.
Engine

Advanced, high-powered, turbocharged Yanmar engine with auto-shutdown systems and grid heater starter assists to aid in cold weather starting.
Hydraulics
4640E Power2 Hydraulics

Exceptional hydraulics of 30 gpm (114 L/min) with optional high-flow power a wide variety of attachments and produce outstanding attachment performance.


Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.
Serviceability

The 4640E Power2 skid loader has an ingenious design, including low-maintenance components and easy maintenance access.

Attachment System

A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 4640E Power2 the most versatile machine on the job site. Popular attachments are listed below.

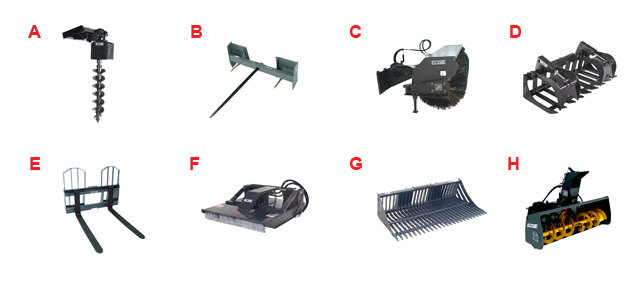

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Augers
B     Bale Movers
C     Brooms
D     Grapples
E     Pallet Forks
F     Mower, Rotary
G     Skeleton Rock Bucket
H     Snow Removal



Specifications
Model
4640E Power2 Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
152.5''
Height To Hinge Pin Fully Raised
115.5''
Overall Height To Top Of ROPS
78.5''
Ground Clearance To Chassis
6.5''
Overall Length W Bucket
122'' with 66'' Bucket
Overall Length W O Bucket
91.1''
Wheelbase
38''
Dump Reach At Full Height
26.5''
Rollback At Ground
23°
Dump Angle
43.5°
Overall Width
63''A/59.7''
Bucket Widths
60'' - 70''
Clearance Circle Rear
52.5''
Clearance Circle Front W O Bucket
45''
Clearance Circle Front W Bucket
77''
Seat To Ground Height
37.5''
Rollback At Full Height
88.5°
Dump Height
84.5''
Departure Angle
21°
Standard Specification Tire Size
10.00 x 16.5 HD
Make
Yanmar
Model
3TNV98 Interim Tier IV
Net Power @ Rpm
68 hp @ 2500
Maximum Torque
180 ft.lbs. @ 1650
Displacement
203 cu.in.
Auxiliary Hydraulics Standard
19 gpm
High Flow Auxiliary Hydraulics Option
30 gpm
Filtration
12 micron
Reservoir Capacity
15 gal.
Battery
12-volt
Starter
12-volt
Alternator
95-amp
Rated Operating CapacityB
1,650 lbs.
Rated Operating Capacity With Optional CounterweightB
1,800 lbs.
Tipping Load
3,300 lbs.
Fuel Tank
14 gal.
Travel Speed Maximum
7.4 mph
Travel Speed With Two Speed Option Maximum
11.9 mph
Operating WeightC Approximate
6,300 lbs.
