ID # 13224624

Gehl 4240E Skid Loader

  • Gehl 4240E Skid Loader
  • Gehl 4240E Skid Loader
  • Gehl 4240E Skid Loader
  • Gehl 4240E Skid Loader
  • Gehl 4240E Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
    Height to Hinge Pin - Fully Raised (mm): 110" (2794)
    Rated Operating Capacity (kg): 1,350 lbs. (612)
    Net Power (kW): 46 hp (34)
  Features

Performance

The 4240E Skid Loader is built for efficiency. Super Hi-Power drive chains feature heavy, high-strength construction designed for the most rugged conditions.
Operator's Cabin
A large operator’s compartment with clear front, side and rear sight lines provides operators full, expansive views for increased safety.

Controls

Ergonomic controls in the 4240E Skid Loader provide smooth loader and attachment operation.

Engine
Advanced, high-powered, turbocharged Yanmar engine with auto-shutdown systems and grid heater starter assists to aid in cold weather starting.

Hydraulics

Exceptional hydraulics of 16.5 gpm power a wide variety of attachments and produce outstanding attachment performance on the 4240E.

Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.

Serviceability
The 4240E Skid Loader has an ingenious design, including low-maintenance components and easy maintenance access.

Serviceability
The 4240E Skid Loader has an ingenious design, including low-maintenance components and easy maintenance access.

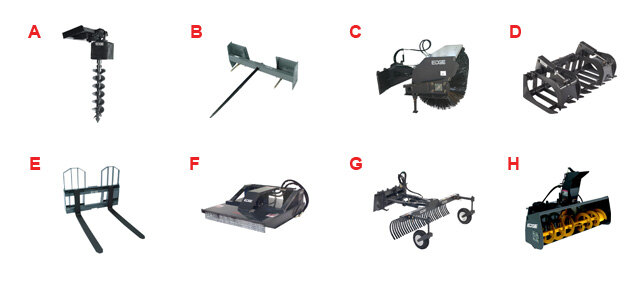

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 4240E the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Augers
B     Bale Movers
D     Brooms
E     Grapples
F     Pallet Forks
C     Mower, Rotary
G     Rakes
H     Snow Removal



Specifications
Model
4240E Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
141.1''
Height To Hinge Pin Fully Raised
110''
Overall Height To Top Of ROPS
71.9''
Ground Clearance To Chassis
8.3''
Overall Length W Bucket
116.2'' with 61'' Bucket
Overall Length W O Bucket
91.1''
Wheelbase
36.7''
Dump Reach At Full Height
22.6''
Rollback At Ground
29°
Dump Angle
42°
Overall Width
53''A/59''
Bucket Widths
60.6''
Clearance Circle Rear
58.4''
Clearance Circle Front W O Bucket
43.4''
Clearance Circle Front W Bucket
69.2''
Seat To Ground Height
33.6''
Rollback At Full Height
99°
Dump Height
86.5''
Departure Angle
29°
Standard Specification Tire Size
10.00 x 16.5 HD
Make
Yanmar
Model
4TNV88 Interim Tier IV
Net Power @ Rpm
46 hp @ 2600
Maximum Torque
106 ft.-lbs. @ 1680
Displacement
134 cu.in.
Auxiliary Hydraulics Standard
16.5 gpm
Filtration
4 micron
Reservoir Capacity
8 gal.
Battery
12-volt
Starter
12-volt
Alternator
40-amp
Rated Operating CapacityB
1,350 lbs.
Rated Operating Capacity With Optional CounterweightB
1,475 lbs.
Tipping Load
2,700 lbs.
Fuel Tank
12.4 gal.
Travel Speed Maximum
5.4 mph
Operating WeightC Approximate
4,600 lbs.
