ID # 13224560

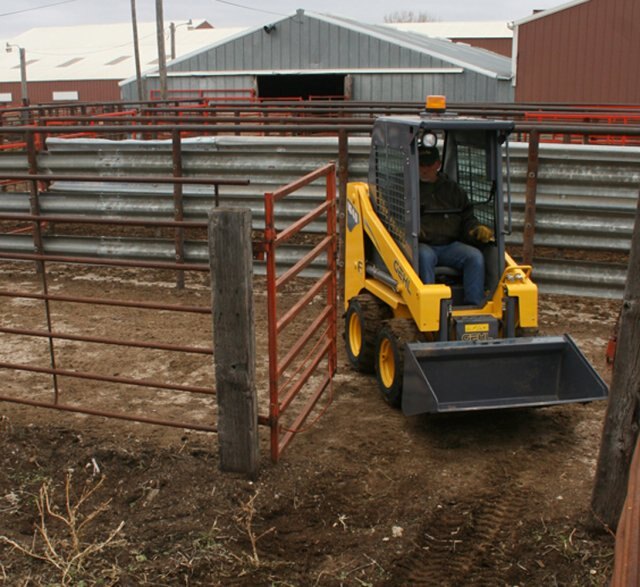

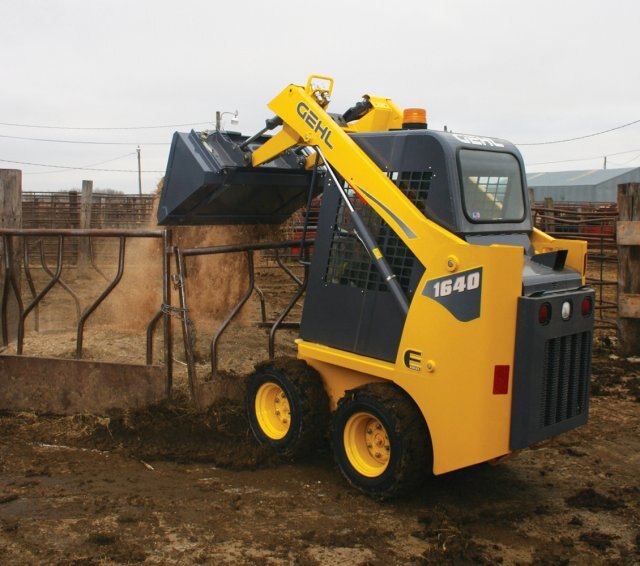

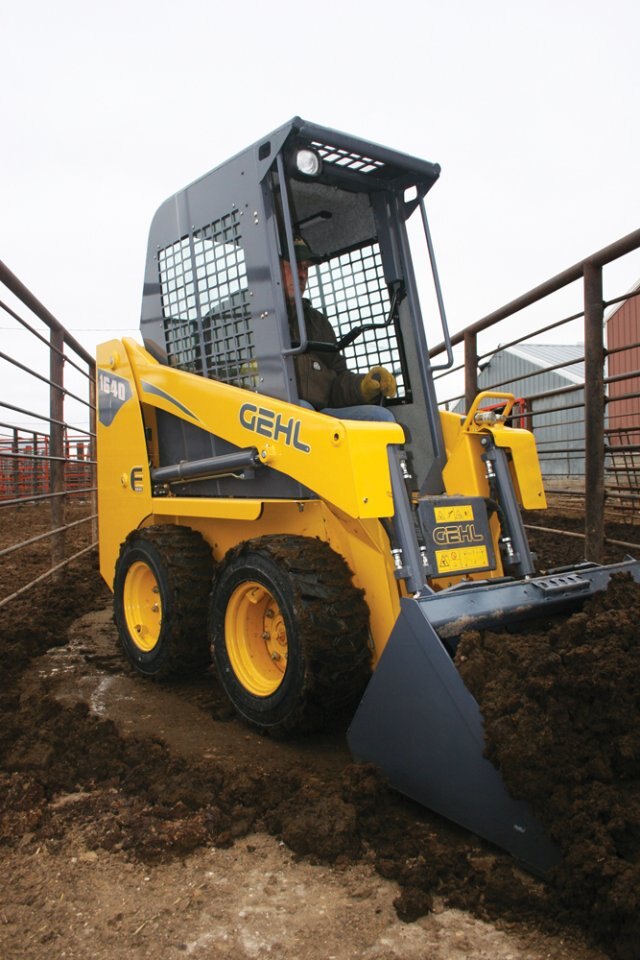

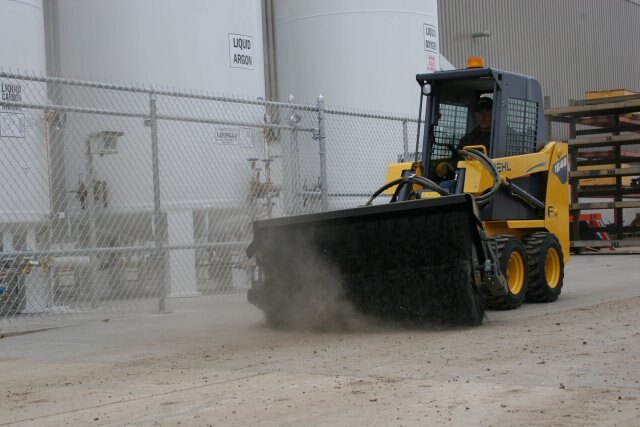

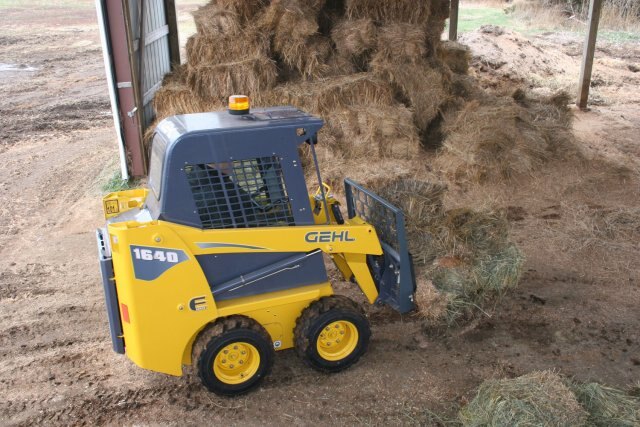

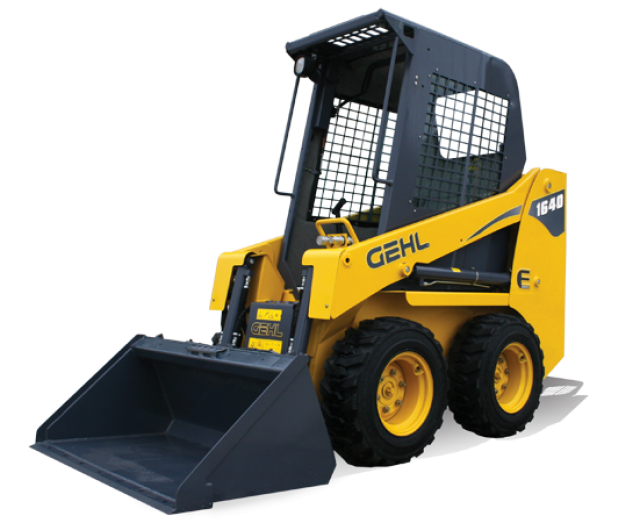

Gehl 1640E Skid Loader

  • Gehl 1640E Skid Loader
  • Gehl 1640E Skid Loader
  • Gehl 1640E Skid Loader
  • Gehl 1640E Skid Loader
  • Gehl 1640E Skid Loader
  • Gehl 1640E Skid Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Height to Hinge Pin - Fully Raised (mm): 96" (2438)
Rated Operating Capacity (kg): 850 lbs. (386)
Net Power (kW): 24 hp (17.9)
  Features

Performance

The 1640E Skid Loader was designed with quality in mind. There are few tasks this loader cannot handle.

Operator's Cabin

No sacrifice was made to operator comfort or safety in the 1640E Skid Loader.

Controls

Ergonomic controls in the 1640E Skid Loader provide smooth loader and attachment operation.

Engine

Equipped with a powerful 24-hp (17.9 kW) Yanmar diesel engine, the 1640E Skid Loader can tackle any challenge.

Hydraulics

The 1640E provides 10.1 gpm (38.2 L/min) of hydraulic flow powering a variety of attachments to get work done faster.

Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.

Serviceability

Engineers kept service in mind when designing the 1640E Skid Loader. Easily accessible maintenance points coupled with high-quality components, reduce down-time.

Attachment System

A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their 1640E the most versatile machine on the job site. Popular attachments are listedbelow.

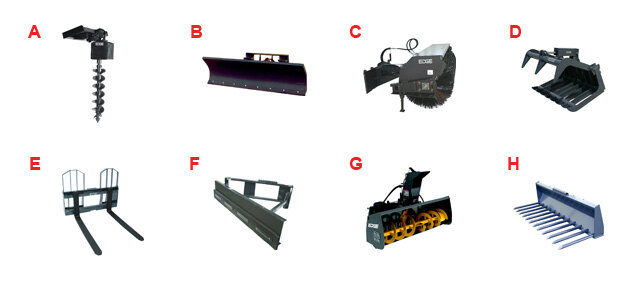

Edge Attachments for Gehl 1640E Skid Steer Loader

A     Augers
B     Blades
C     Brooms
D     Grapples
E     Pallet Forks
F     Scraper
G     Snow Removal
H     Utility Fork



Specifications
Model
1640E Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Wheelbase
30.5''
Overall Operating Height Fully Raised
124.7''
Height To Hinge Pin Fully Raised
96''
Overall Height To Top Of ROPS
74.7''
Ground Clearance To Chassis
5.9''
Overall Length W Bucket
101.4''
Overall Length W O Bucket
75''
Dump Reach At Full Height
14.8''
Rollback At Ground
23°
Dump Angle
46.0°
Overall Width
35.8''
Bucket Widths
36''
Clearance Circle Rear
43.2''
Clearance Circle Front W O Bucket
32.8''
Clearance Circle Front W Bucket
58''
Seat To Ground Height
34.6''
Rollback At Full Height
100°
Dump Height
72.3''
Departure Angle
30°
Standard Specification Tire Size
8.70 x 12
Make
Yanmar
Model
3TNV82 Tier IV
Net Power @ Rpm
24 hp @ 2400
Maximum Torque
68 ft.-lbs. @ 1200
Displacement
81 cu.in. (1.3)
Auxiliary Hydraulics Standard
10.1 gpm
Filtration
4 micron
Reservoir Capacity
7.2 gal.
Battery
12-volt
Starter
12-volt
Alternator
40-amp
Rated Operating CapacityB
850 lbs.
Fuel Tank
7.7 gal.
Travel Speed Maximum
5.5 mph
Operating WeightC Approximate
2,980 lbs.
