Fisher TRAILBLAZER™ UTV Plows
Call for Price
Overview
Specifications
Videos
Documents
|
Push boundaries with your utility vehicle Get more use out of your utility vehicle with the FISHER® TRAILBLAZER™ line of UTV plows. These plows are engineered to fit a wide variety of UTVs and to handle the same demands as our commercial plows. Constructed from high-strength, low-alloy steel components, both models feature an easy-on/easy-off UTV mounting system and removable receiver brackets for exceptional ground clearance. TRAILBLAZER UTV plows feature Scrape Lock for clean scraping and back dragging. | ||||||||||||||||||||||||||||||||||||
|

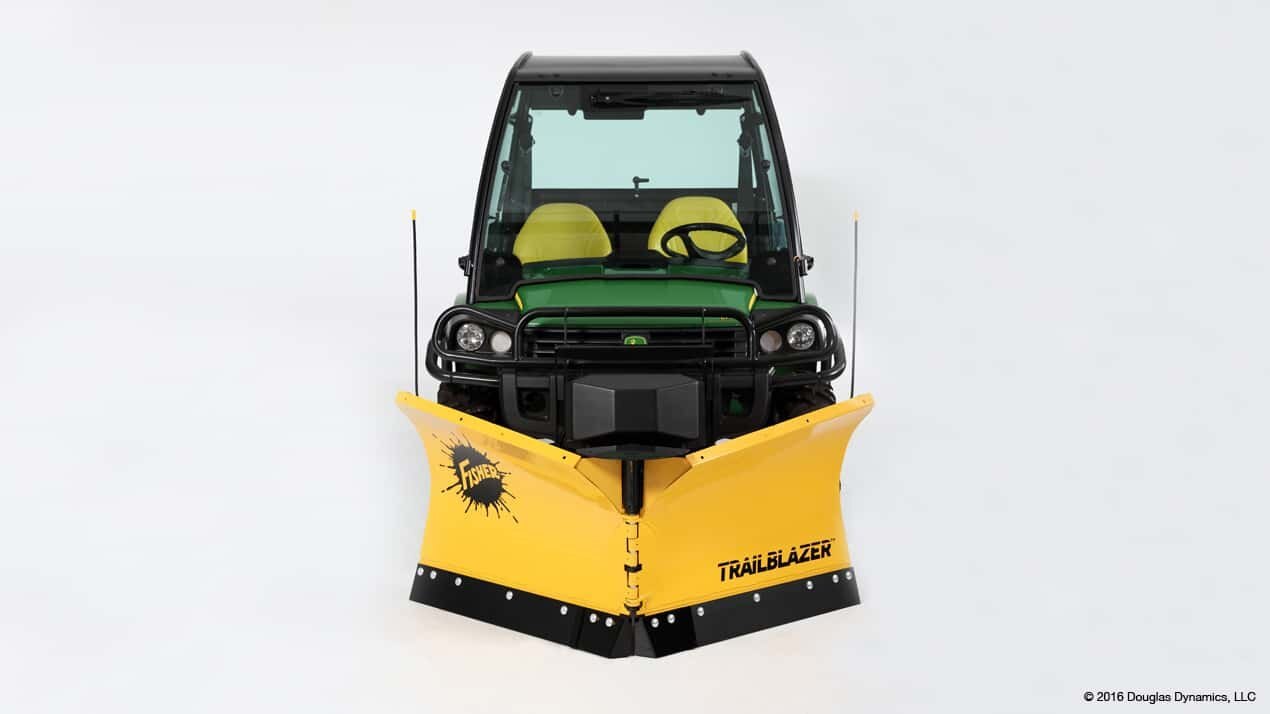

UTV Mounting System
 Hooking up the TRAILBLAZER™ v-plow or straight blade is simple. With the receiver brackets installed on your utility vehicle, either drive in or manually push the plow into the receivers. Push up on the headgear to engage the hitch pins in the receiver holes, then slide the handle to lock the hitch pins in place. Finally, connect the electrical plug. Detaching the plow is just as easy. The receivers are removable, to maintain ground clearance. | ||||||||||||||||||||||||||||||||||||
|
Ground Clearance
Receiver brackets can be easily removed, restoring your vehicle back to its original ground clearance when the plow is not in use.  | ||||||||||||||||||||||||||||||||||||
 Reliable Hydraulics
We build our own hydraulics for unmatched speed and durability. Fast hydraulics allow you to change the blade position quickly and easily for efficient plowing. All critical hydraulic components are fully enclosed for protection from the elements. | ||||||||||||||||||||||||||||||||||||

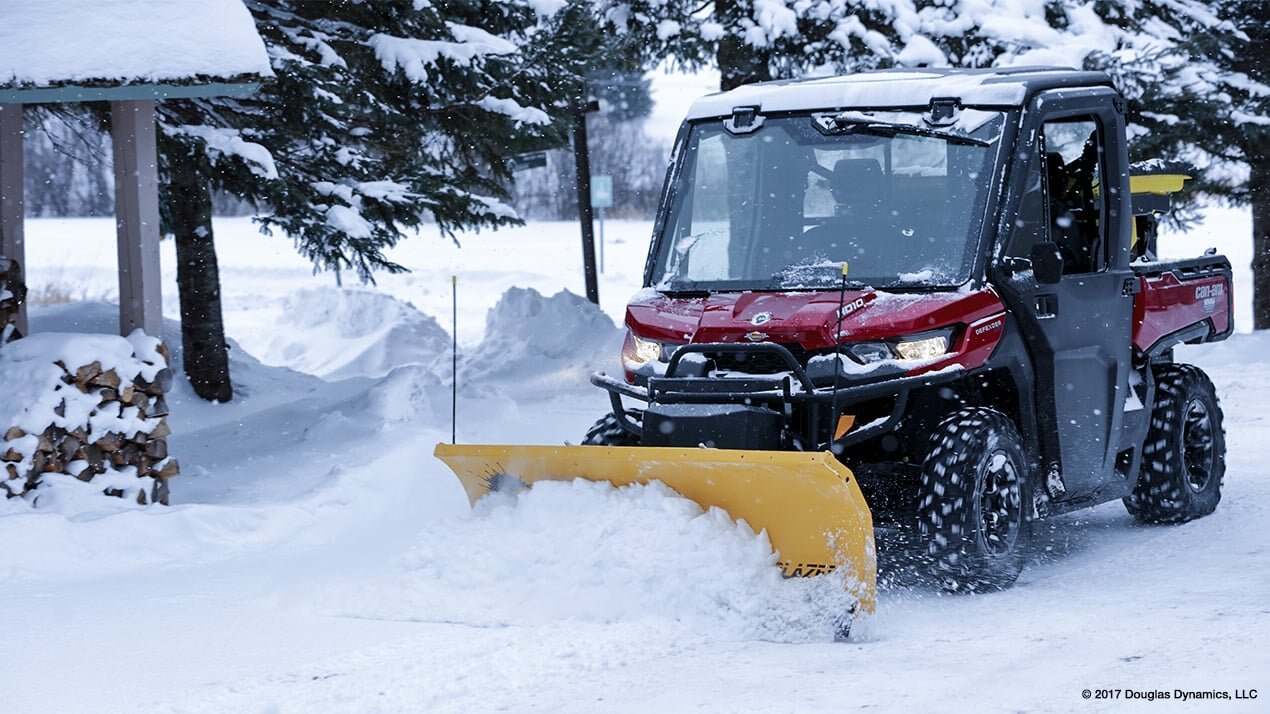

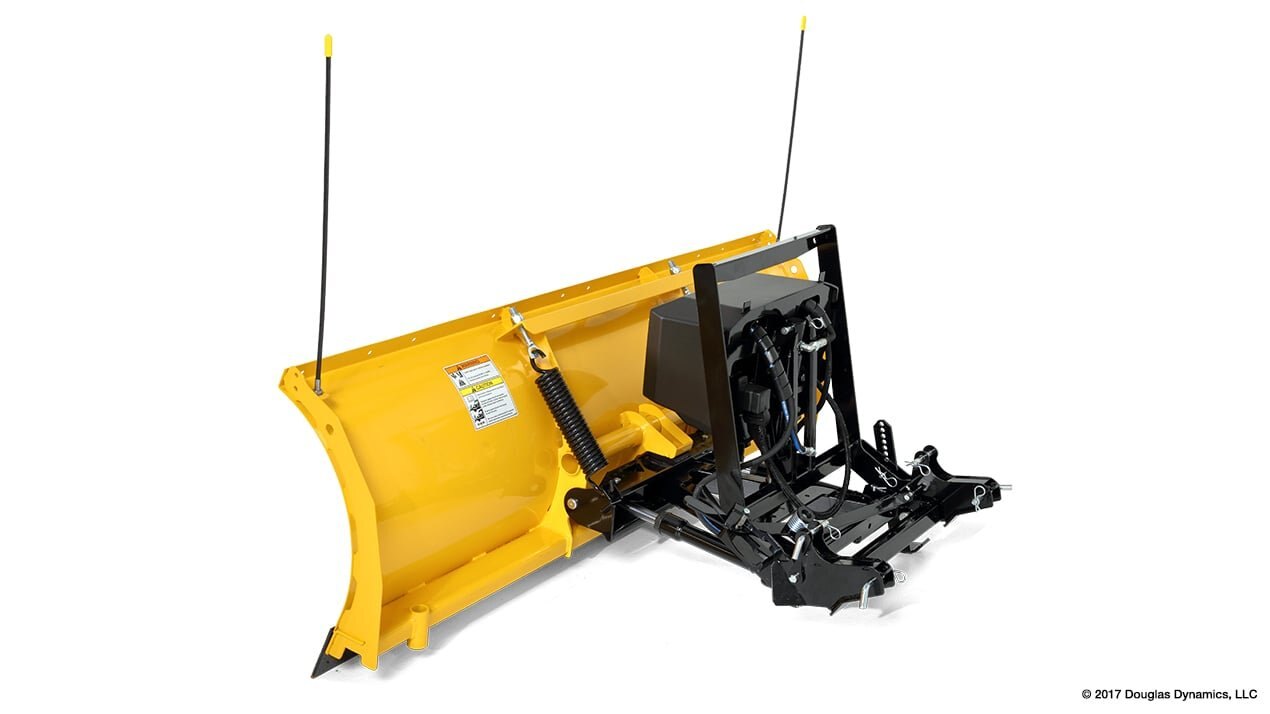

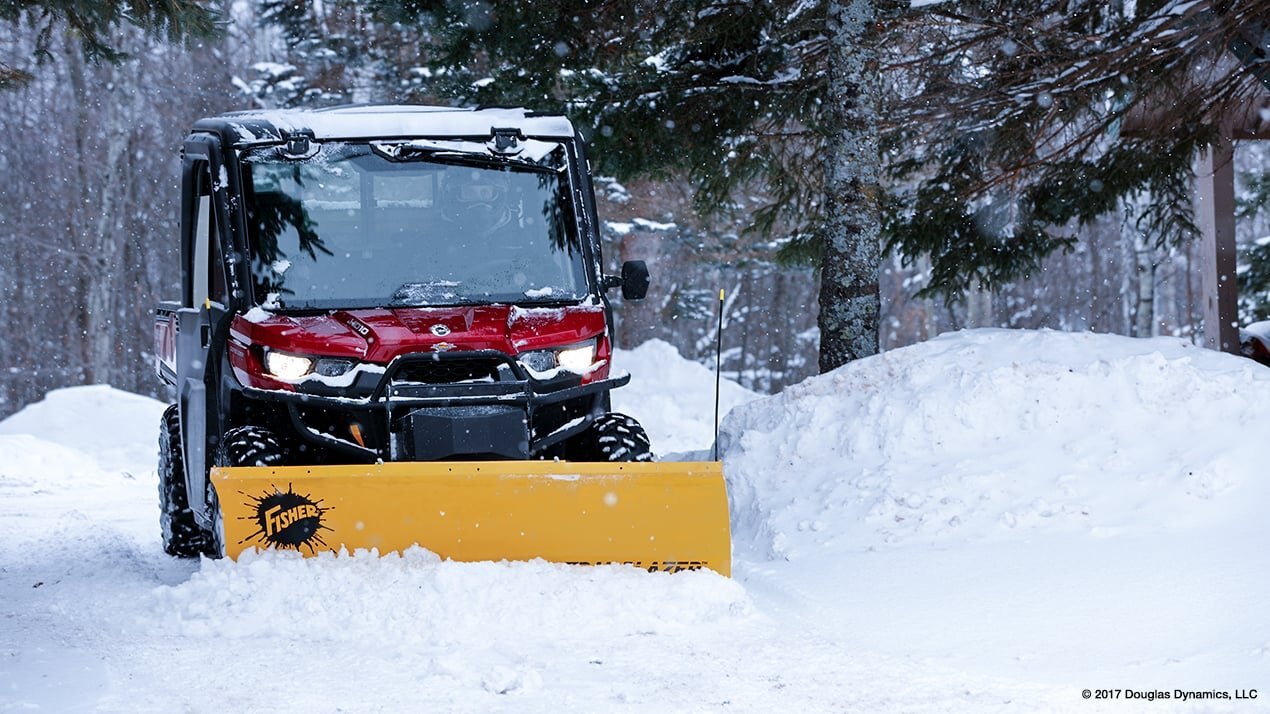

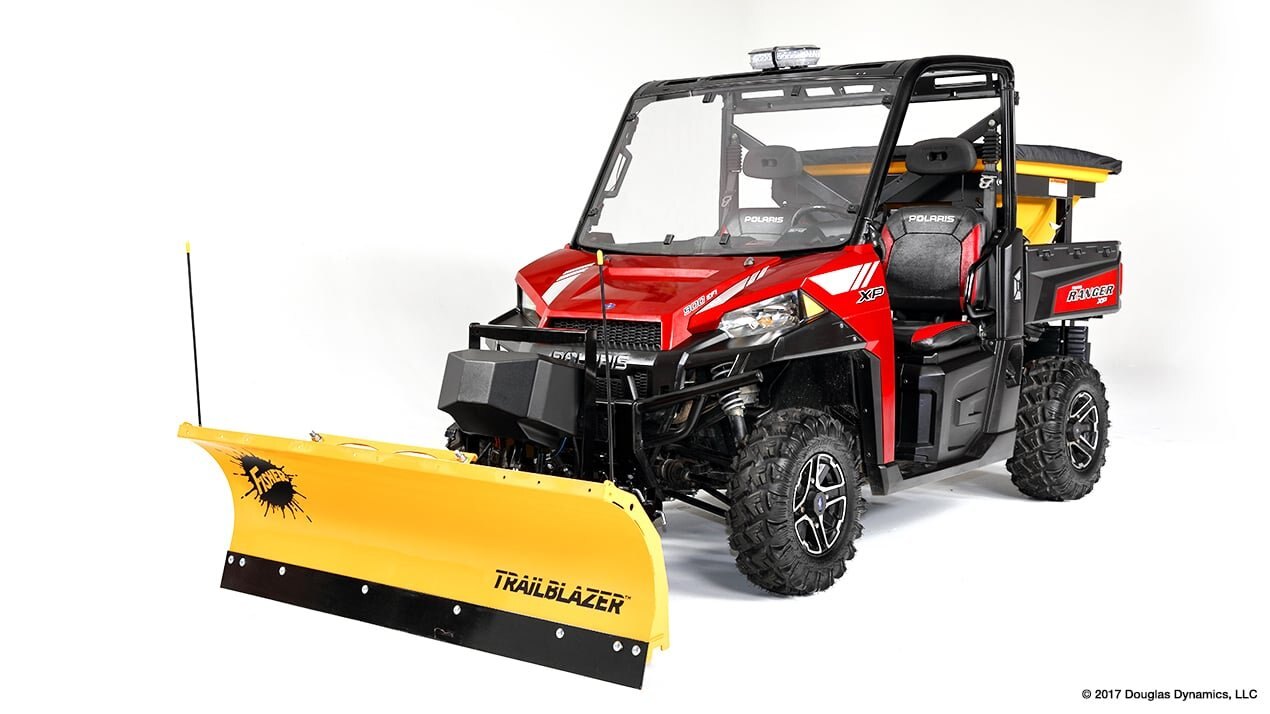

 Blade Construction – Straight
The 6' wide, 14-gauge powder coated steel moldboard and standard 5" high-carbon steel cutting edge make the TRAILBLAZER™ straight blade a strong choice that is the right size for your UTV. | ||||||||||||||||||||||||||||||||||||
 Structural Reinforcement – Straight
With four vertical ribs and high-strength, low-weight, alloy steel construction, the TRAILBLAZER™ UTV straight blade is strong enough for commercial operation and light enough to fit most UTVs. | ||||||||||||||||||||||||||||||||||||
 Trip Protection – Straight
Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles. | ||||||||||||||||||||||||||||||||||||

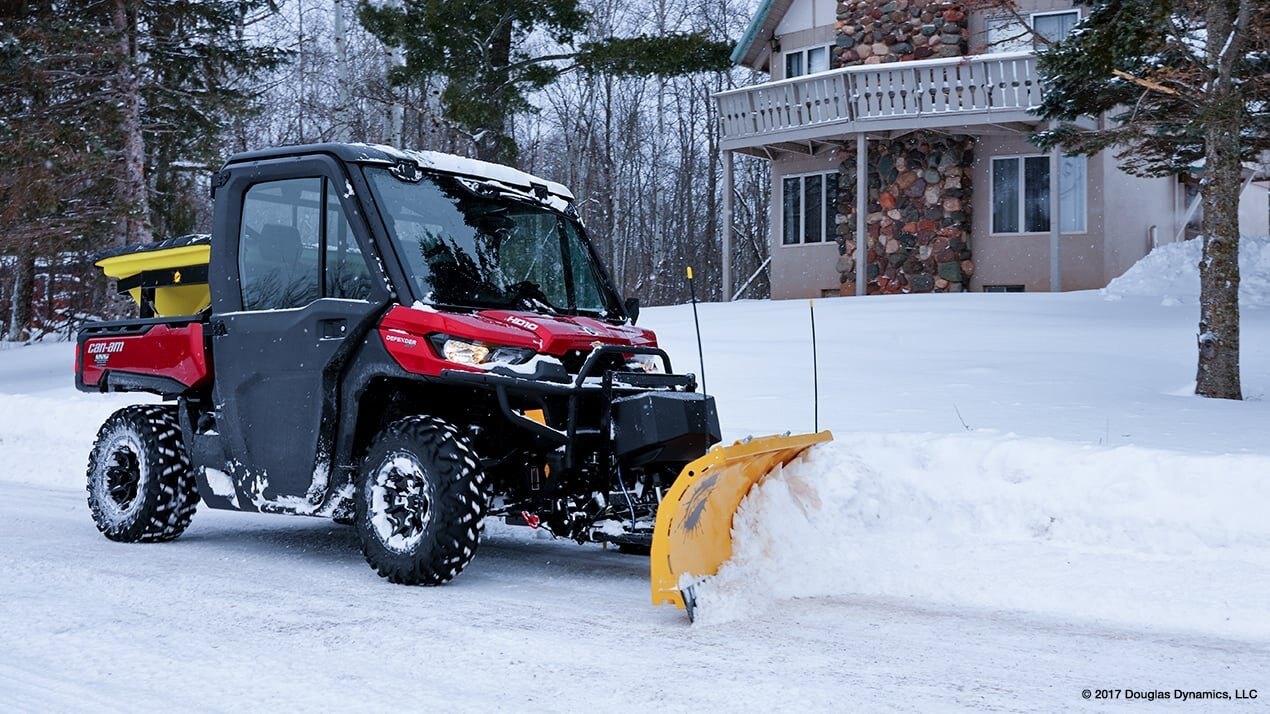

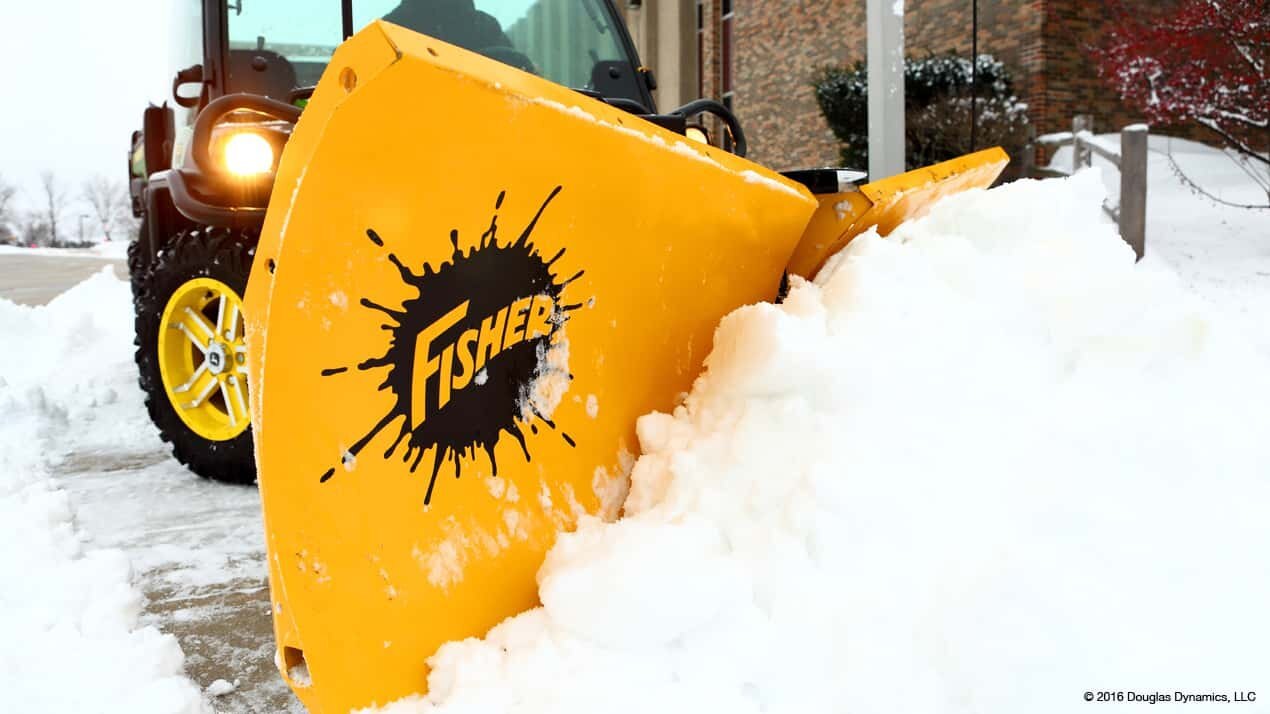

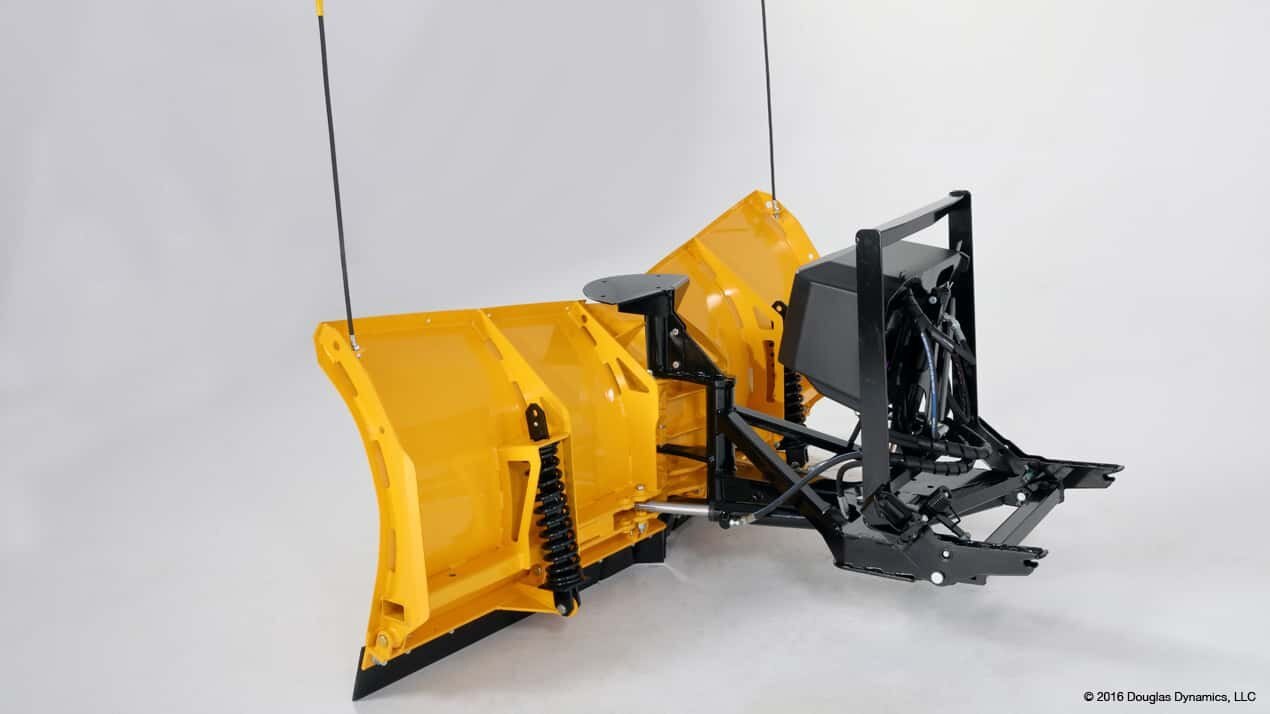

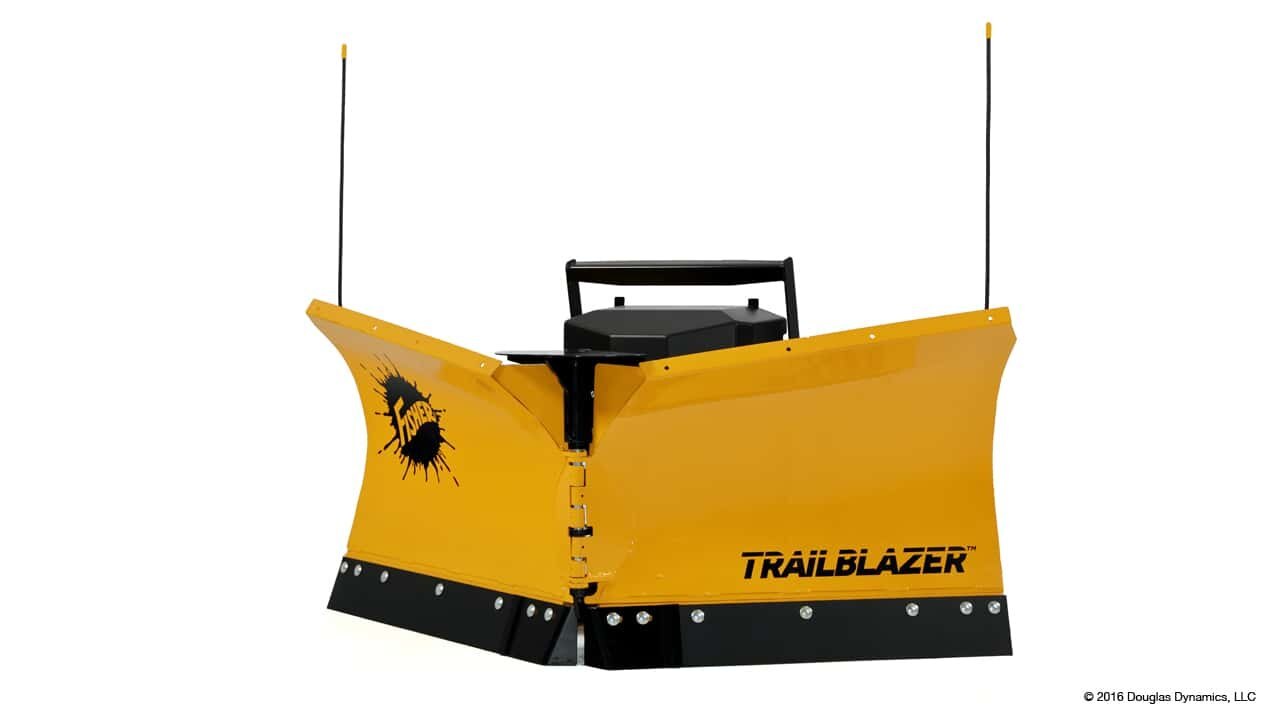

 Featuring a 6' wide powder coated steel flared moldboard, the TRAILBLAZER™ UTV v-plow blades go from a 25¾"" center height to a full 29¼"" at the outer edge. A high-carbon steel cutting edge also comes standard, increasing wear resistance. | ||||||||||||||||||||||||||||||||||||
 The high-strength, low-weight alloy steel components are both stronger and lighter than traditional steel, so your utility vehicle can work hard without having to carry the extra weight on your UTV frame like with heavier plows. The TRAILBLAZER™ v-plow blade is reinforced with six vertical ribs, and features the strength of our proven T-frame design. | ||||||||||||||||||||||||||||||||||||
|
Trip Protection – V-Plow
Each v-plow blade features independent trip-edge protection to get over bumps and hidden obstacles, whether in V, scoop or straight blade configuration, helping to protect the plow, the UTV and the operator. Since only the bottom edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow. The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs. | ||||||||||||||||||||||||||||||||||||

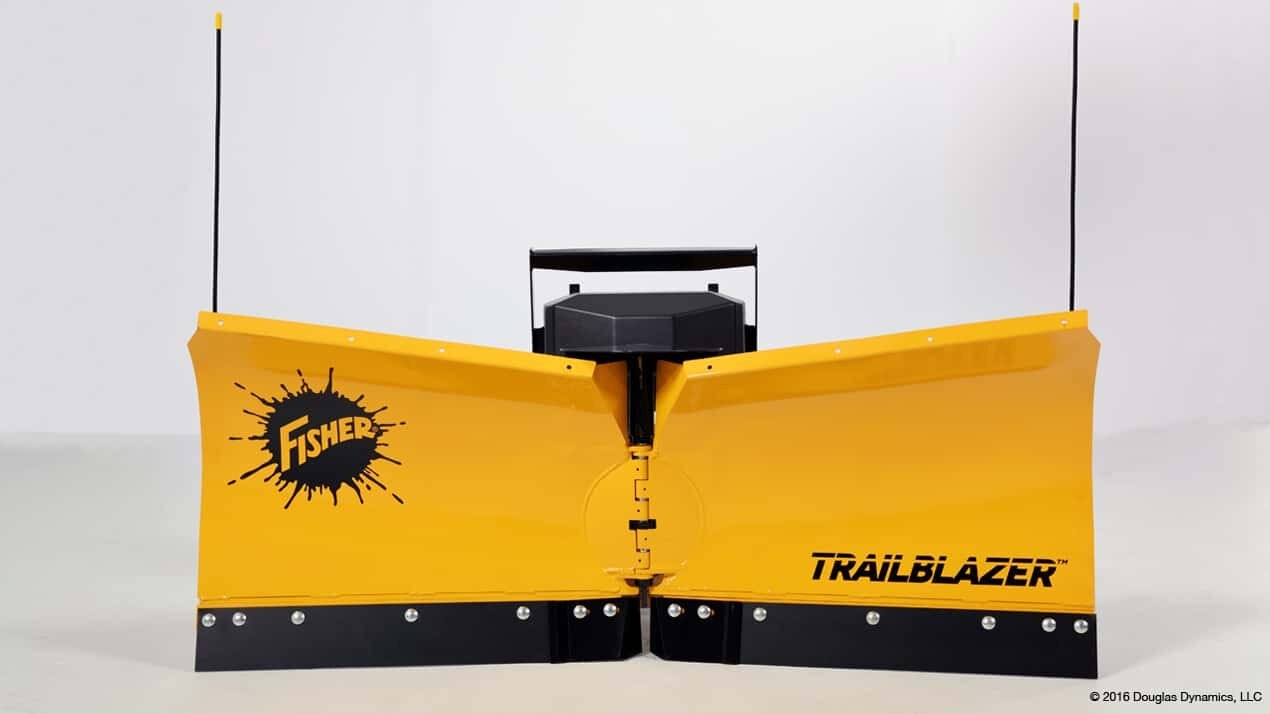

 Double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging. | ||||||||||||||||||||||||||||||||||||

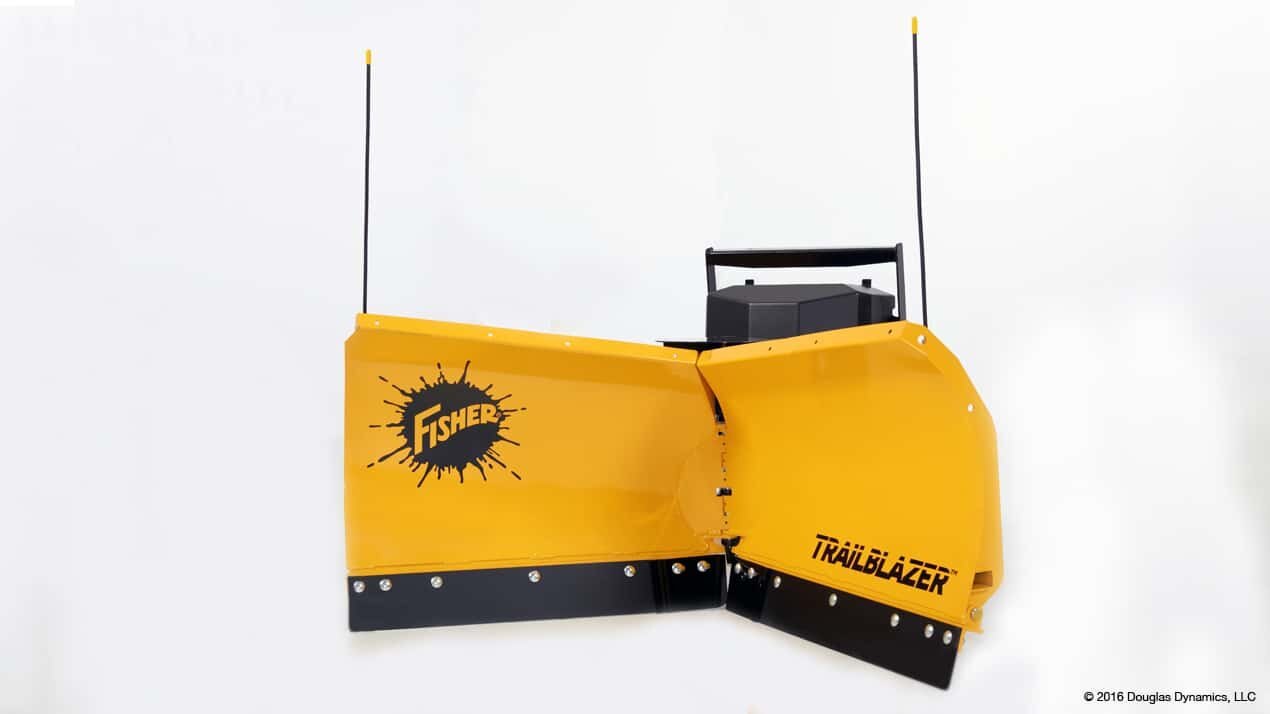

 For exceptional snow containment in all positions, the TRAILBLAZER™ UTV v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow. | ||||||||||||||||||||||||||||||||||||
 When fully angled or in V mode, the TRAILBLAZER™ UTV v-plow plowing path is 5' wide, and 4' 7" in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5' 6" when fully angled or in V, and 5' 1" in scoop. | ||||||||||||||||||||||||||||||||||||
 The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons. | ||||||||||||||||||||||||||||||||||||
|
Specifications | ||||||||||||||||||||||||||||||||||||
|
Model
TRAILBLAZER™ UTV Plows
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Fisher
Videos
Documents
FISHER_2019_Snowplows_brochure_v2.pdf Model
TRAILBLAZER™ UTV Plows
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Fisher
Quantity
0
